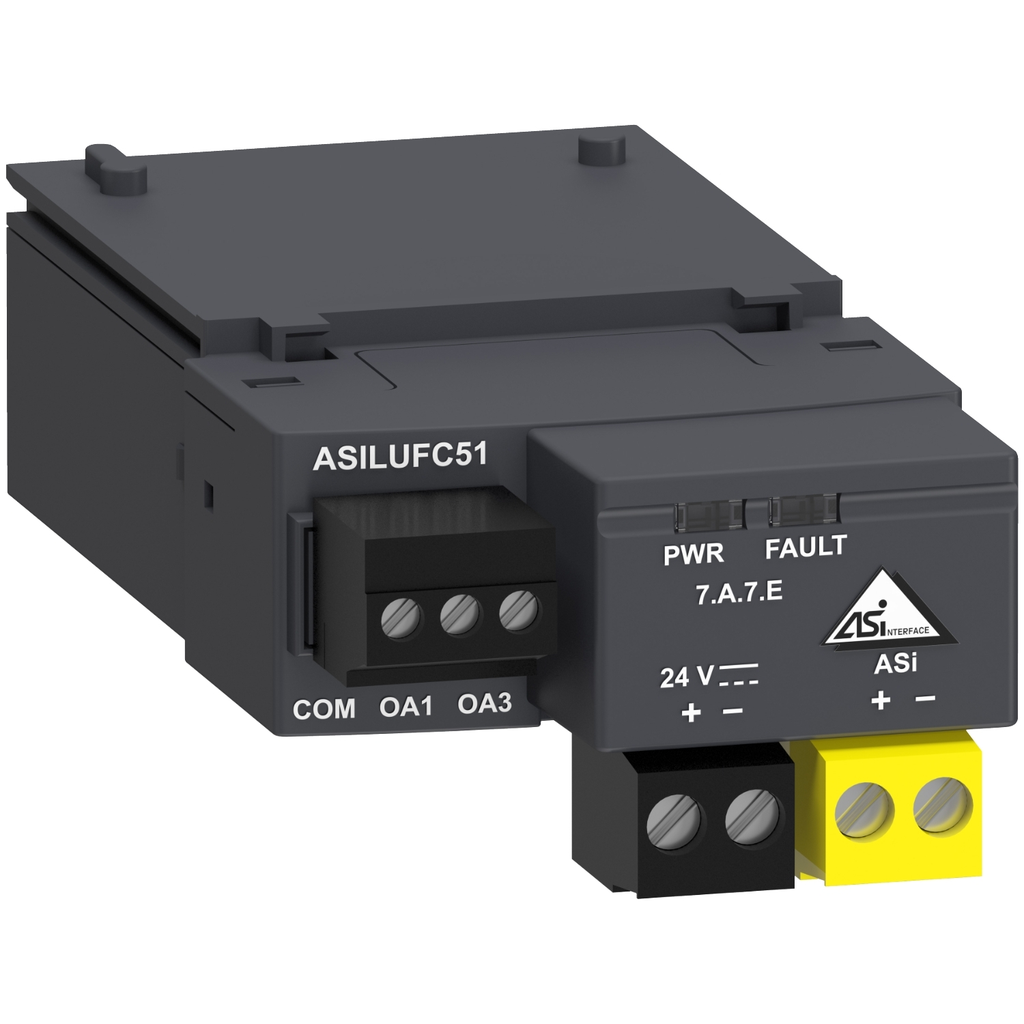

TeSys U communication module for AS-Interface bus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a yellow 2-point plug-in connector for connection to an AS-I network (limited to 62 slaves), a black 2-point plug-in connector for connection to an external 24V DC supply. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 2 LEDs indicating 24V voltage presence (PWR) and communication status (FAULT). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).

• Prop 65
• WARNING: Cancer - www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : AS-Interface V2.1 No 52303
• Important Information Attributes
• Connection Pitch : 3.81 mm output, 5.08 mm input
• Current Consumption : 200 mA 24 V output, 25 mA normal operation, 30 mA fault condition
• Tightening Torque : input: 0.5-0.6 N.m3.5 mm, output: 0.2-0.25 N.m2.5 mm
• Connections Terminals : input screw clamp terminals 2 0.2-1 mm²rigid without cable end, input screw clamp terminals 2 0.25-1 mm²flexible with cable end, output screw clamp terminals 1 0.14-1 mm²rigid without cable end, output screw clamp terminals 1 0.25-0.5 mm²flexible with cable end, output screw clamp terminals 1 0.25-1 mm²flexible with cable end, output screw clamp terminals 2 0.14-0.5 mm²rigid without cable end, output screw clamp terminals 2 0.14-0.75 mm²flexible without cable end, output screw clamp terminals 2 0.25-0.34 mm²flexible with cable end, output screw clamp terminals 2 0.5-0.5 mm²flexible with cable end, input screw clamp terminals 1 0.2-1.5 mm²flexible without cable end, input screw clamp terminals 1 0.2-1.5 mm²rigid without cable end, input screw clamp terminals 1 0.25-1.5 mm²flexible with cable end, input screw clamp terminals 2 0.2-1 mm²flexible without cable end, input screw clamp terminals 2 0.5-1 mm²flexible with cable end, output screw clamp terminals 1 0.14-1 mm²flexible without cable end
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Weee Applicability : Finished product
• Weee Scope : In
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2025
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : No
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Product Kit Identifier : N
• Addressing : 62 slaves
• Bus Type : AS-Interface
• Device Application : communication
• Device Short Name : ASILUL
• Energy Efficiency Optimized : False
• Function Available : communication module
• Halogen Free Status : Halogen free plastic parts product
• Local Signalling : 2 LEDs front panel
• Mounting Location : front side
• Mounting Mode : plug-in
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : communication module
• Range : TeSys
• Range Of Product : TeSys U
• Return Time : 10 ms
• Returnability : No
• Sustainable Packaging : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Warranty In Months : 18
• Offer Owner Code : 190788
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Product Compatibility : LUCB, LUCM, LUCD, LUCA, LUCL, LUCC
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -25-70 °C
• Eu Rohs Directive : Compliant By Exemption
• Halogen Content Performance : Halogen free plastic parts product
• Ip Degree Of Protection : IP20 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : communication module
• Range Of Product : TeSys U
• ETIM
• ETIM 8 : EC001604
• ETIM 9 : EC001604
• Output Attributes
• Number Of Outputs : 2 dedicated to starter-controller coil operation
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, France
