Suppressor module, TeSys K, RC circuit - 110 to 250V

Suppressor module, TeSys K, RC circuit - 110 to 250V

SQDLA4KA1U LA4KA1U 3389110230093
13.18 / EA
http://schema.org/OutOfStock
Suppressor module, TeSys K, RC circuit - 110 to 250V
  • Certifications: CE, CSA, UKCA, UL

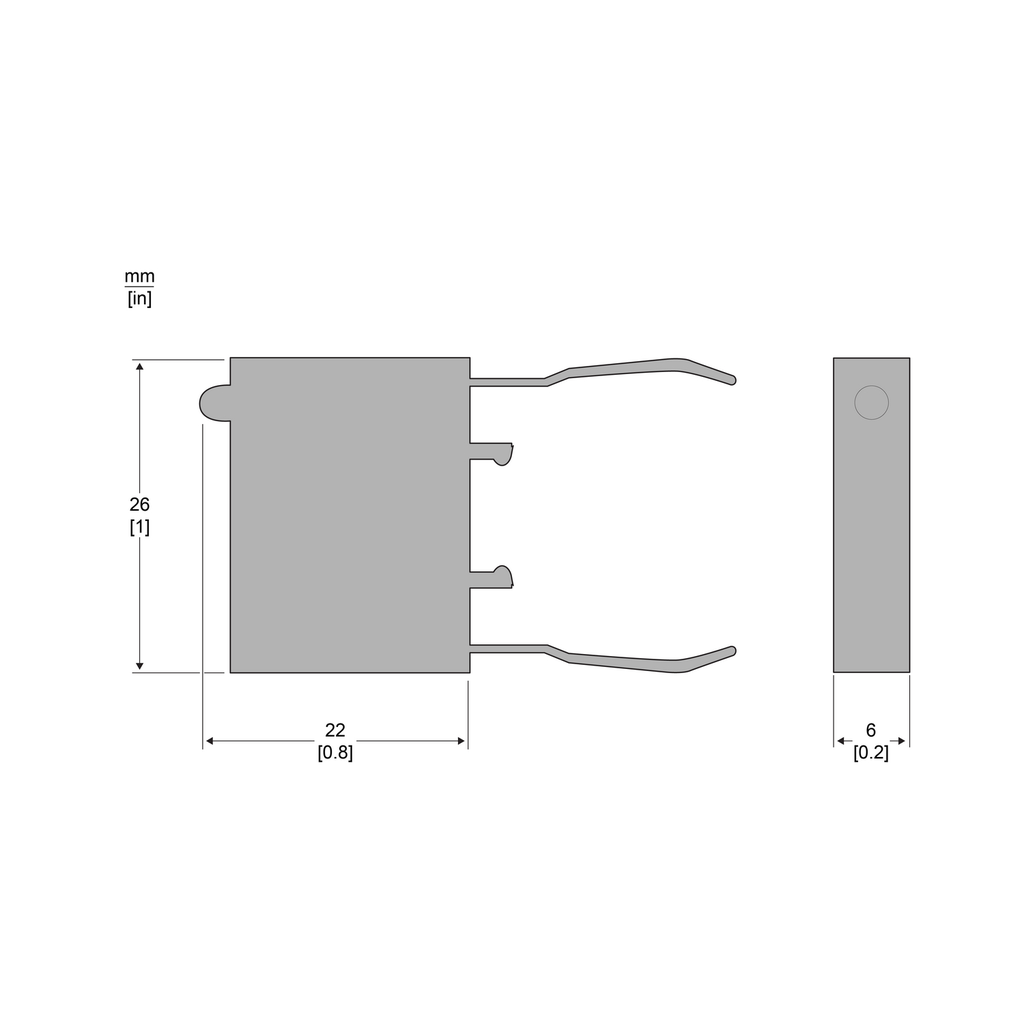

  • Depth: 22 mm
  • Height: 26 mm
  • Mounting Type: Clip-On
  • Net Weight: 0.01 kg
  • Standard: CSA C22.2 No 60947-5-1, EN/IEC 60947-5-1, UL 60947-5-1
  • Storage Temperature: -50-80 °C
  • Warranty Length: 18 mth
  • Width: 6 mm
TeSys K suppressor module, for contactors LC.K, CA2K. To be used with 110-250V AC control circuits, it provides RC protection limiting the transient voltage to 3 Uc max. Clip-on mounting on front of contactor (no tools required), it incorporates a power-on LED indicator. Sold in lots of 5 units. It conforms to RoHS/REACh regulation.
QTY
  • Product Description
  • Specifications
TeSys K suppressor module, for contactors LC.K, CA2K. To be used with 110-250V AC control circuits, it provides RC protection limiting the transient voltage to 3 Uc max. Clip-on mounting on front of contactor (no tools required), it incorporates a power-on LED indicator. Sold in lots of 5 units. It conforms to RoHS/REACh regulation.
  • Environment
    • Product Certifications : UL || CSA || CE || UKCA
    • Ambient Air Temperature For Operation : -25-50 °C
    • Standards : UL 60947-5-1 || CSA C22.2 No 60947-5-1 || EN/IEC 60947-5-1
    • Ip Degree Of Protection : IP2XIEC 60529
    • Ambient Air Temperature For Storage : -50-80 °C
    • Protective Treatment : TCIEC 60068 || TCDIN 50016
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP111253EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Complementary
    • [Uc] Control Circuit Voltage : 110...250 V AC
    • Height : 26 mm
    • Net Weight : 0.01 kg
    • Mounting Location : front side
    • Maximum Peak Voltage : 3 Uc
    • Mounting Mode : clip-on
    • Local Signalling : LED
    • Quantity Per Set : set of 5
    • Width : 6 mm
    • Depth : 22 mm
    • Suppressor Technology : RC circuit
  • Specifications
    • Product Or Component Type : suppressor module
    • Range : TeSys
    • Product Compatibility : CA2K || LC1K || LC7K
    • Device Short Name : LA4K
