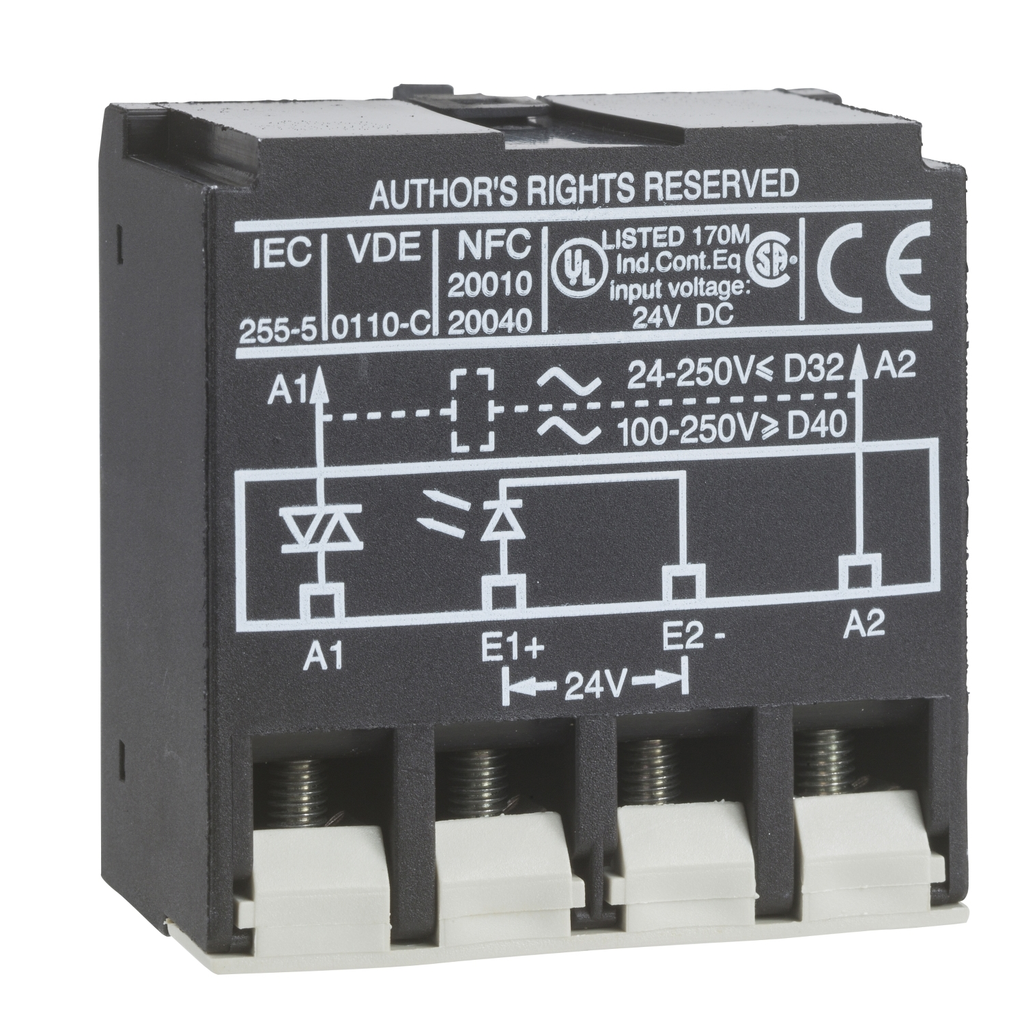

TeSys Deca low signal interface module, for control of contactors LC.D09-D115 (3P). Static relay interface controlled by a 24V DC input signal. To be used with contactors with 24-250V AC coils (B7 to U7), for contactors LC.D80-D115 the use is limited to 100-250V AC coils (F7 to U7). To be mounted on a coil wiring adapter LAD4BB for contactors LC.D09-D38, LAD4BB3 for contactors LC.D40A-D80A, and directly on contactors LC.D80-D115.

• Heat Dissipation
• 0.4-0.4 W control circuit
• US Rated Supply Voltage
• 24 V DC
• Connections Terminals
• control circuit connector 1 1-2.5 mm²flexible with cable end
• control circuit connector 1 1-2.5 mm²flexible without cable end
• control circuit connector 1 1-2.5 mm²solid with cable end
• control circuit connector 1 1-2.5 mm²solid without cable end
• control circuit connector 2 1-2.5 mm²flexible with cable end
• control circuit connector 2 1-2.5 mm²flexible without cable end
• control circuit connector 2 1-2.5 mm²solid with cable end
• control circuit connector 2 1-2.5 mm²solid without cable end
• Current Consumption
• 8.5...15 mA 20 °C
• ITH Conventional Free Air Thermal Current
• 8 A 50 °C
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004195_3D-CAD&p_File_name=MCADPD0004195_2D-top.dxf
• IP Degree Of Protection
• IP2X conforming to IEC 60529
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.13491557911908644
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.4 kg CO2 eq.
• 0.40555057096247954
• UI Rated Insulation Voltage
• 250 V - control circuit IEC 60947-5-1
• Electrical Durability
• 20 Mcycles 240 V
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• Carbon Footprint Of The Distribution Phase A4
• 0.005330995106035888
• 0 kg CO2 eq.
• Control Circuit Voltage Limits
• 5...30 V at 20 °C DC
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• UE Rated Operational Voltage
• control circuit 24...250 V AC

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-05-18
• HTML Description : TeSys D, interface amplifier module, Solid state, 24 V DC / 250 V AC
• Manufacturer : Schneider Electric
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Manufacturing Carbon Footprint : 0.40555057096247954
• Distribution Carbon Footprint : 0.005330995106035888
• End Of Life Carbon Footprint : 0.13491557911908644
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1926
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : LA4D
• Device Short Name : LA4D
• Energy Efficiency Optimized : False
• Immunity To Microbreaks : 1 ms
• Package Weight Lbs : 56.0 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : interface module
• Range : TeSys
• Range Of Product : TeSys Deca
• Returnability : Yes
• Sustainable Packaging : Yes
• Technology Type : solid state
• Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.5457971451876019
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP111253EN
• Pep Verification Date : 2025-08-05
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 45
• Functional Unit Description : It provides a flywheel diode protection ensuring no transient overvoltage. Clip-on side mounting, overall size of the contactor is unchanged.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 0
• Recyclability Potential In : 20
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; FR
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.0037585563621533435
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0036041843393148443
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.00003373091353996736
• Acidification Ap Mole Of H Equiv Installation A5 : 0
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.00012064110929853179
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.00023063417618270798
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.0028658319738988575
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0028658319738988575
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.00009913213703099508
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.4026876019575856
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.005330995106035888
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.13491557911908644
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.042294861337683516
• Climate Change Total Kg Co2 Eq Total Life Cycle : 0.5457971451876019
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.40555057096247954
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.005330995106035888
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.13491557911908644
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.04239396411092985
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.00001316913946003262
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.00001316782218597063
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000002096721044
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.00000000110760195759
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00000609628874388254
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 8.861744290375203
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 6.8681892332789545
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.07430138662316475
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1.9192536704730827
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -0.5794575856443719
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 179.3895616027732
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 179.33197389885802
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.003587703915171288
• Ecotoxicity Fresh Water Ctue Installation A5 : 0
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.05399999999999999
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1.4363295269168024
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000002382288988581
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000002289017128874
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000002743091354
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000065840946166
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000001067593800979
• Exported Energy Mj By Energy Vector Total Life Cycle : 0
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00000646421696574225
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.00000645672920065253
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000000199783849918
• Freshwater Eutrophication Kg P Eq Installation A5 : 0
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000000548992659054
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00000013038254486134
• Hazardous Waste Disposed Of Kg Total Life Cycle : 0.8925526101141923
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.8442088091353995
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.04834380097879282
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.4420350734094616
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000012833819339315
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000012833442088091
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000000009359706
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000000367891517
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000006492699836868
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000005917382361338
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000005852569331158
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000001012867047
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000063800163132
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000000110932707993
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.00023078466557911905
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.00023078466557911905
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 2.496781924429037
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 2.4958849918433925
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00001297255301794453
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0008839600326264273
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.0006925081566068514
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.0006353394371941271
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.000594690048939641
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.00001581056280587275
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.00002483882544861337
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.00002330163132137031
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.008812805872756931
• Materials For Recycling Kg Manufacturing A1 A3 : 0
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.008812805872756931
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.003556425244698205
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0031107259380097874
• Net Use Of Fresh Water M3 Distribution A4 : 0.00000047092169657423
• Net Use Of Fresh Water M3 Installation A5 : 0
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0004452283849918433
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.00043205138662316466
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.07147084624796084
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.035315089722675365
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00018695554649265903
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.03596880097879281
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.014668311582381728
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000003555845823817
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000003514221044046
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000000000816460033
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000040808319739
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000000131248776509
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.00200880220228385
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0018752814029363784
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.00004374836867862969
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.00008977243066884174
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.00010014151712887437
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.00020092465864600322
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0001993323817292006
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.00000013315375203915
• Radioactive Waste Disposed Of Kg Installation A5 : 0
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000145912316476346
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00000699665579119086
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.006626800570962479
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.006152079934747145
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.00017344820554649262
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.00030127243066884173
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0002606916802610114
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.8131566068515496
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.8131566068515496
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 8.938042414355627
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 6.9438009787928205
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.07440048939641108
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 1.9198409461663946
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -0.5833849918433931
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.07605096533442086
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0753584828711256
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00009915048939641108
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0005933319738988579
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.003953466557911909
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.8131566068515496
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.8131566068515496
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 8.04873450244698
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.055179445350733
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.07430138662316475
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.9192536704730827
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.5794575856443719
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.000648205546492659
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.000648205546492659
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.07540496207177812
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.07471247960848286
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00009915048939641108
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0005933319738988579
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.003953466557911909
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 0.15274787667210438
• Water Use M3 Eq Manufacturing A1 A3 : 0.13360522022838497
• Water Use M3 Eq Distribution A4 : 0.00002022577487765089
• Water Use M3 Eq Installation A5 : 0
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0
• Water Use M3 Eq End Of Life C1 C4 : 0.01912243066884176
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.01855570962479608
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0
• General Attributes
• Product Or Component Type : interface module
• Range Of Product : TeSys Deca
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=608734&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.5457971451876019
• Environmental Disclosure : ENVPEP111253EN
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP111253EN
• Pep Verification Date : 2025-08-05
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Tunisia
