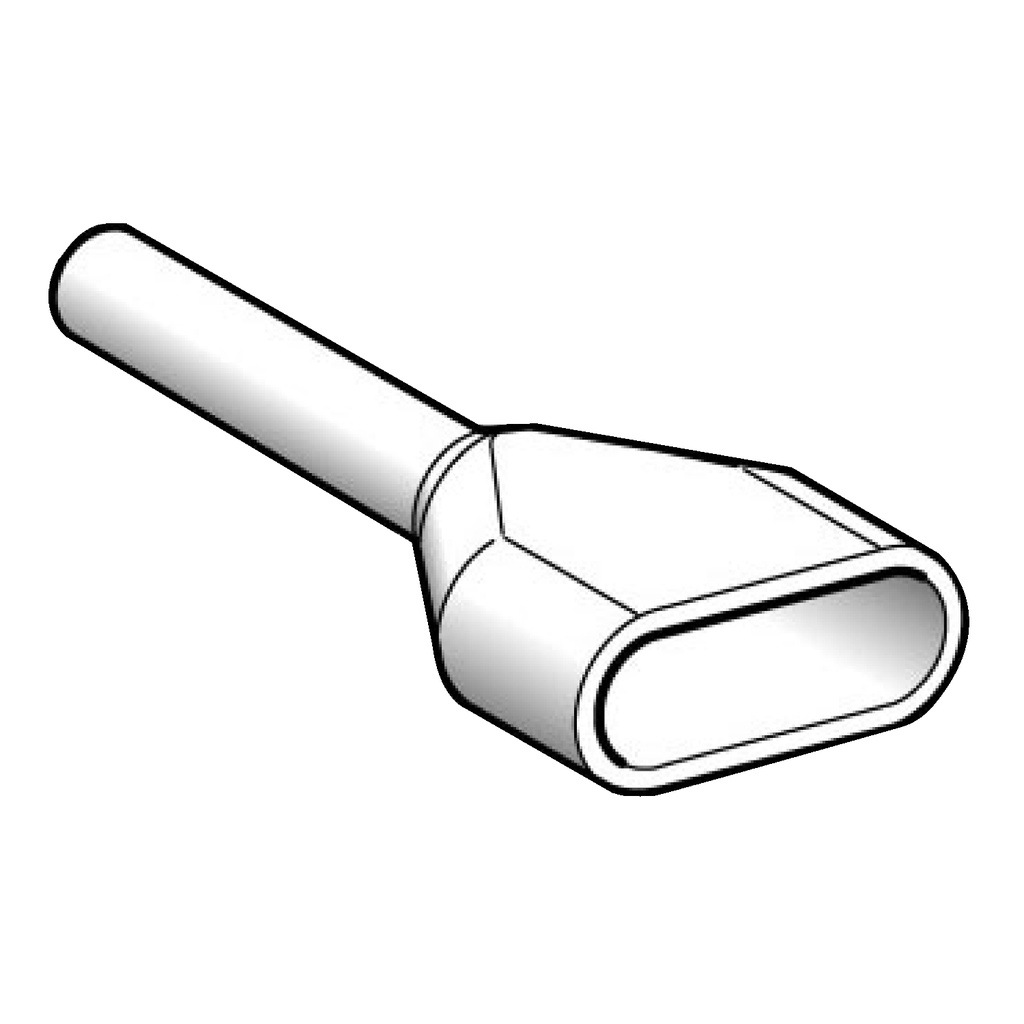

Linergy cable end twin insulated without marker tag holder. It is applied to twin conductor with 0.50 mm² cable cross section. It has white surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 1 sets of 1000. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is CCSAus certified.

• Environment
• Product Certifications : cCSAus
• Ambient Air Temperature For Operation : -20-105 °C
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2405008EN
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Without Single Use Plastic : No
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc : Yes
• Circularity Profile : ENVEOLI2405008EN
• Take-Back : No
• Pvc Free : Yes
• Sustainable Packaging : No
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Tube Length : 8 mm
• Bezel Size : Ø 2.5 x 4.7 mm
• Number Of Cables : 2
• Cable End Type : twin conductor
• Length : 18.5 mm
• Net Weight : 0.11 kg
• Color : White
• Awg Gauge : AWG 22
• Bezel Material : halogen-free plastic
• Tube Material : Copper ISO 1337
• Additional Information : without marker tag holder
• Tube Diameter : 1.7 mm
• Specifications
• Country of Origin : Germany
• Length : 18.5 mm
• Weight : 0.11 kg
• Range Of Product : Linergy
• Standards : NF C 63-023
• Product Or Component Type : cable end
• Type Of Packing : individual bag
• Cable Cross Section : 0.5-0.5 mm²
• Cable End Size : medium
• Quantity Per Set : set of 1000
