Mechanical interlock, TeSys Deca contactors LC1D09-D38, LC1DT20-DT40

MECHANICAL INTERLOCK TESYS D-L

SQDLAD9V2 LAD9V2 3389110111699
27.85 / EA
http://schema.org/OutOfStock

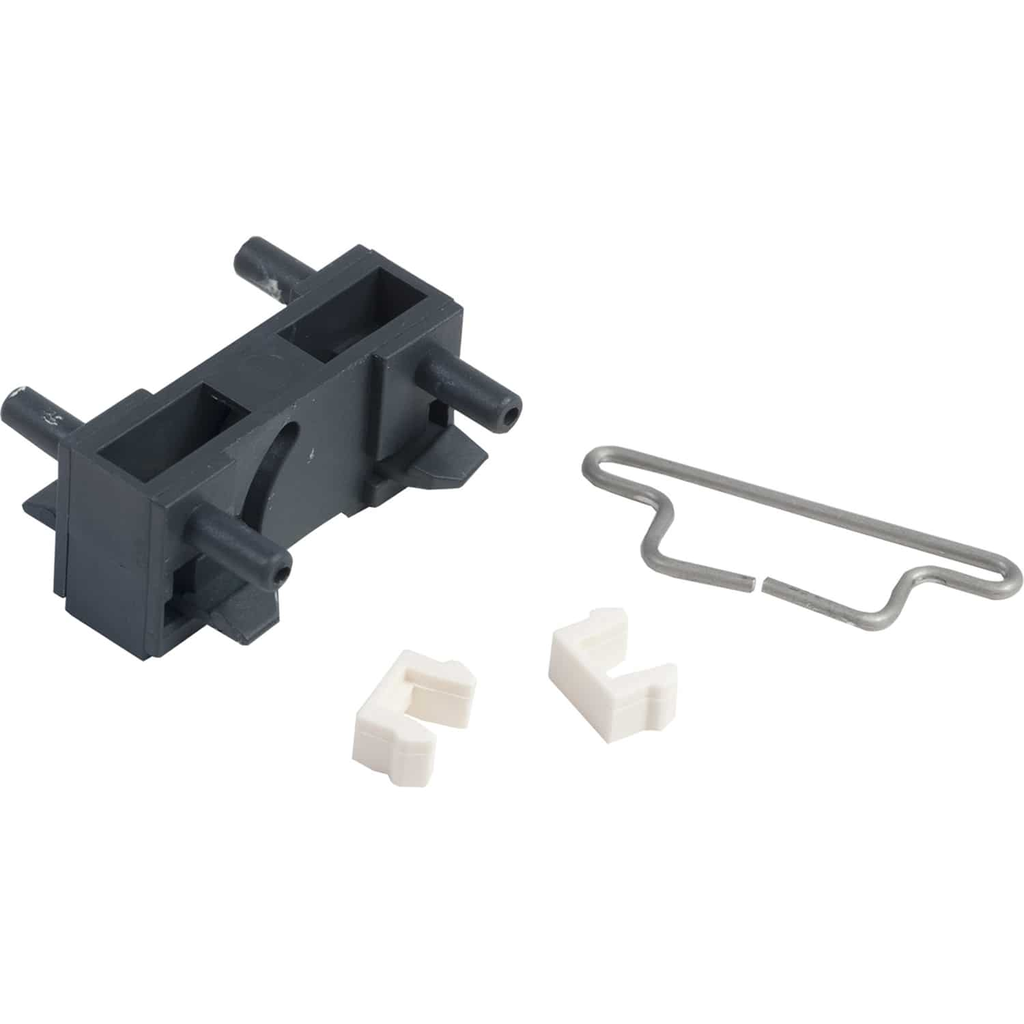

Mayer-DDS-Mechanical interlock, TeSys Deca contactors LC1D09-D38, LC1DT20-DT40-1
  • Net Weight: 0.04 kg
  • Warranty Length: 18 mth
TeSys D mechanical interlock, for contactors LC1D09-D38 and LC1DT20-DT40. To be used for reversing and changeover assemblings. Without electrical interlocking. Green Premium compliant (RoHS/REACh).
QTY
  • Product Description
  • Specifications
TeSys D mechanical interlock, for contactors LC1D09-D38 and LC1DT20-DT40. To be used for reversing and changeover assemblings. Without electrical interlocking. Green Premium compliant (RoHS/REACh).
  • Specifications
    • Interlocking Type : mechanical
    • Range Of Product : TeSys Deca
    • Range Compatibility : TeSys TeSys D contactor
    • Accessory / Separate Part Category : interlocking accessory
    • Product Or Component Type : mechanical interlock
    • Range : TeSys
    • Poles Description : 3P || 4P
    • Electrical Circuit Type : reversing || changeover
    • Product Compatibility : LC1D09 || LC1D12 || LC1D18 || LC1D25 || LC1D32 || LC1D38 || LC1DT20 || LC1DT25 || LC1DT32 || LC1DT40
    • Device Short Name : LAD9
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111213EN_V1
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Complementary
    • Net Weight : 0.04 kg
  • Contractual warranty
    • Warranty : 18 months
