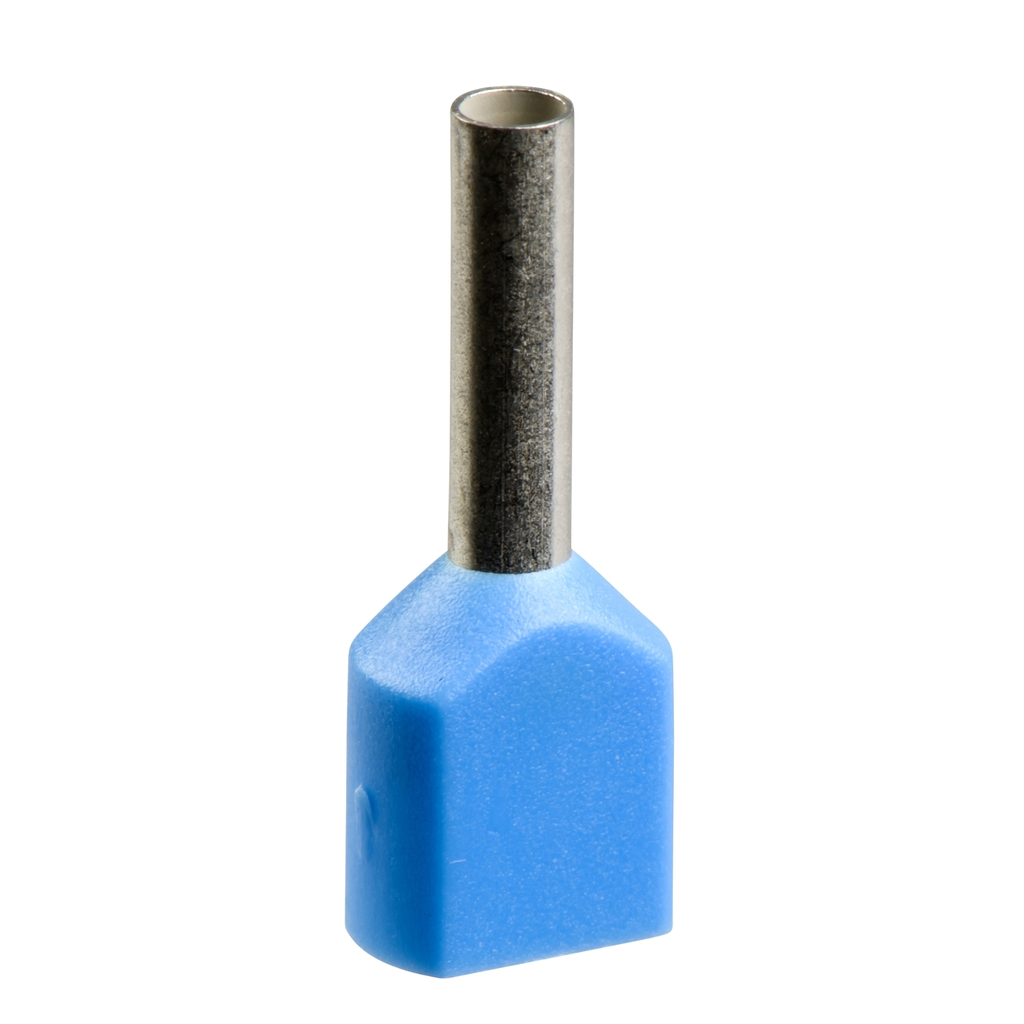

Cable end, Linergy TR cable ends, twin conductor, blue, 0.75mm², for insulated cable, medium size, 5 sets of 50

TWIN CABLE END/SOLD IN LOTS OF

SQDAZ5DE007 AZ5DE007 785901721727
0.24 / EA
http://schema.org/OutOfStock
Mayer-DDS-Cable end, Linergy TR cable ends, twin conductor, blue, 0.75mm², for insulated cable, medium size, 5 sets of 50-1
  • Bezel Material: Halogen-Free Plastic
  • Country of Origin: Germany
  • Length: 15 mm
  • Net Weight: 0.13 kg
  • Warranty Length: 18 mth
  • Weight: 0.13 kg
QTY
  • Specifications
  • Environment
    • Product Certifications : cCSAus
    • Ambient Air Temperature For Operation : -20-105 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2405008EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Circularity Profile : ENVEOLI2405008EN
    • Take-Back : No
    • Pvc Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Tube Length : 8 mm
    • Bezel Size : Ø 2.8 x 5 mm
    • Number Of Cables : 2
    • Cable End Type : twin conductor
    • Length : 15 mm
    • Net Weight : 0.13 kg
    • Color : Blue
    • Awg Gauge : AWG 20
    • Bezel Material : halogen-free plastic
    • Tube Material : Copper ISO 1337
    • Additional Information : without marker tag holder
    • Tube Diameter : 2 mm
  • Specifications
    • Country of Origin : Germany
    • Length : 15 mm
    • Weight : 0.13 kg
    • Range Of Product : Linergy
    • Standards : NF C 63-023
    • Product Or Component Type : cable end
    • Type Of Packing : dispenser pack
    • Cable Cross Section : 0.75-0.75 mm²
    • Cable End Size : medium
    • Quantity Per Set : 5 sets of 100
