Electrical interlock, TeSys Deca reversing & changeover, 2 contactors LC1D09-D38 LC1DT20-DT40

ELEC CONNECTION SET TESYS,D-L

SQDLAD9V1 LAD9V1 3389110110180
27.88 / EA
http://schema.org/OutOfStock

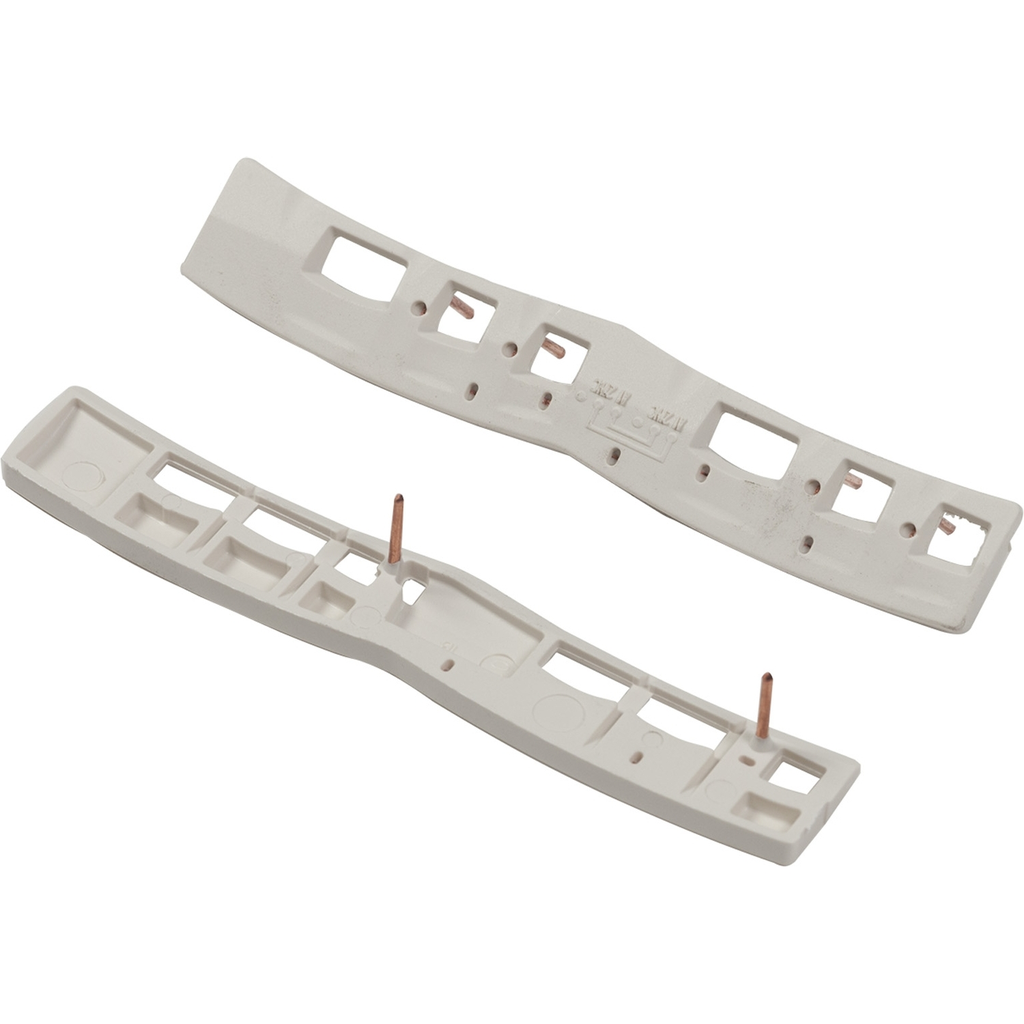

Mayer-DDS-Electrical interlock, TeSys Deca reversing & changeover, 2 contactors LC1D09-D38 LC1DT20-DT40-1
  • Country of Origin: Czechia
  • Net Weight: 0.04 kg
  • Warranty Length: 18 mth
  • Weight: 0.04 kg
TeSys Deca electrical interlock for LC1D09-D38 and LC1DT20-DT40 contactors. For assembling reversing and changeover contactors. It provides the interlocking of the electrical control circuits for 2 adjacent contactors.
QTY
  • Product Description
  • Specifications
TeSys Deca electrical interlock for LC1D09-D38 and LC1DT20-DT40 contactors. For assembling reversing and changeover contactors. It provides the interlocking of the electrical control circuits for 2 adjacent contactors.
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Take-Back : No
  • Contractual warranty
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Czechia
    • Weight : 0.04 kg
    • Interlocking Type : electrical
    • Range Of Product : TeSys Deca
    • Range Compatibility : TeSys TeSys D contactor
    • Accessory / Separate Part Category : interlocking accessory
    • Product Or Component Type : electrical interlocking
    • Range : TeSys
    • Poles Description : 3P
    • Electrical Circuit Type : changeover || reversing
    • Product Compatibility : LC1D09 || LC1D12 || LC1D18 || LC1D25 || LC1D32 || LC1D38 || LC1DT20 || LC1DT25 || LC1DT32 || LC1DT40
    • Device Short Name : LAD9
  • Complementary
    • Net Weight : 0.04 kg
