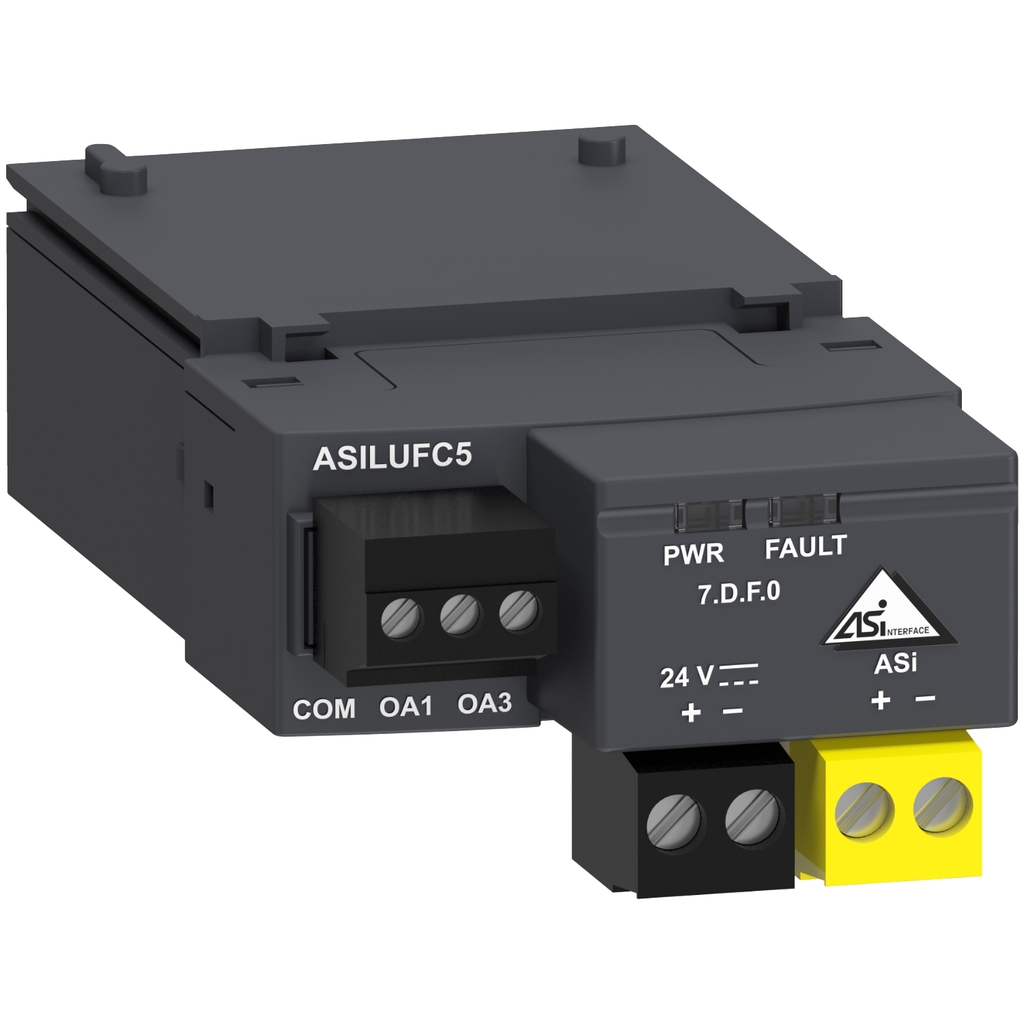

TeSys U communication module for AS-Interface bus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a yellow 2-point plug-in connector for connection to an AS-I network (limited to 31 slaves), a black 2-point plug-in connector for connection to an external 24V DC supply. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 2 LEDs indicating 24V voltage presence (PWR) and communication status (FAULT). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).

• Prop 65
• WARNING: Cancer - www.P65Warnings.ca.gov

• Environment
• Ip Degree Of Protection : IP20 conforming to IEC 60529
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Scip Number : e383808a-7832-4e0a-8697-e499929809d4
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: Cancer - www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Recycled Metal Content At Cr Level : 0
• Take-Back : No
• Eu Rohs Directive : Compliant with Exemptions
• Complementary
• Addressing : 31 slaves
• Current Consumption : 200 mA 24 V output || 25 mA normal operation || 30 mA fault operation
• Connections - Terminals : input screw clamp terminals 1 0.2-1.5 mm²flexible without cable end || input screw clamp terminals 1 0.2-1.5 mm²rigid without cable end || input screw clamp terminals 1 0.25-1.5 mm²flexible with cable end || input screw clamp terminals 2 0.2-1 mm²flexible without cable end || input screw clamp terminals 2 0.2-1 mm²rigid without cable end || input screw clamp terminals 2 0.25-1 mm²flexible with cable end || input screw clamp terminals 2 0.5-1 mm²flexible with cable end || output screw clamp terminals 1 0.14-1 mm²flexible without cable end || output screw clamp terminals 1 0.14-1 mm²rigid without cable end || output screw clamp terminals 1 0.25-0.5 mm²flexible with cable end || output screw clamp terminals 1 0.25-1 mm²flexible with cable end || output screw clamp terminals 2 0.14-0.5 mm²rigid without cable end || output screw clamp terminals 2 0.14-0.75 mm²flexible without cable end || output screw clamp terminals 2 0.25-0.34 mm²flexible with cable end || output screw clamp terminals 2 0.5-0.5 mm²flexible with cable end
• Mounting Location : front side
• Function Available : AS-Interface communication module
• Communication Port Protocol : Profibus DP
• Mounting Mode : plug-in
• Switching Current Capacity : 500 mA 24 V against short-circuits solid state
• Bus Type : AS-Interface
• Local Signalling : 2 LEDs front panel
• Connection Pitch : 3.81 mm output || 5.08 mm input
• Tightening Torque : input 0.5-0.6 N.m 3.5 mm || output 0.2-0.25 N.m 2.5 mm
• Specifications
• Country of Origin : France
• Range Compatibility : TeSys TeSys Ultra LUB non reversing power base || TeSys TeSys Ultra LU2B reversing power base
• Product Or Component Type : communication module
• Range : TeSys
• Product Compatibility : LUCA || LUCL || LUCD || LUCM || LUCC || LUCB
• Device Application : communication
• Device Short Name : ASILUF
