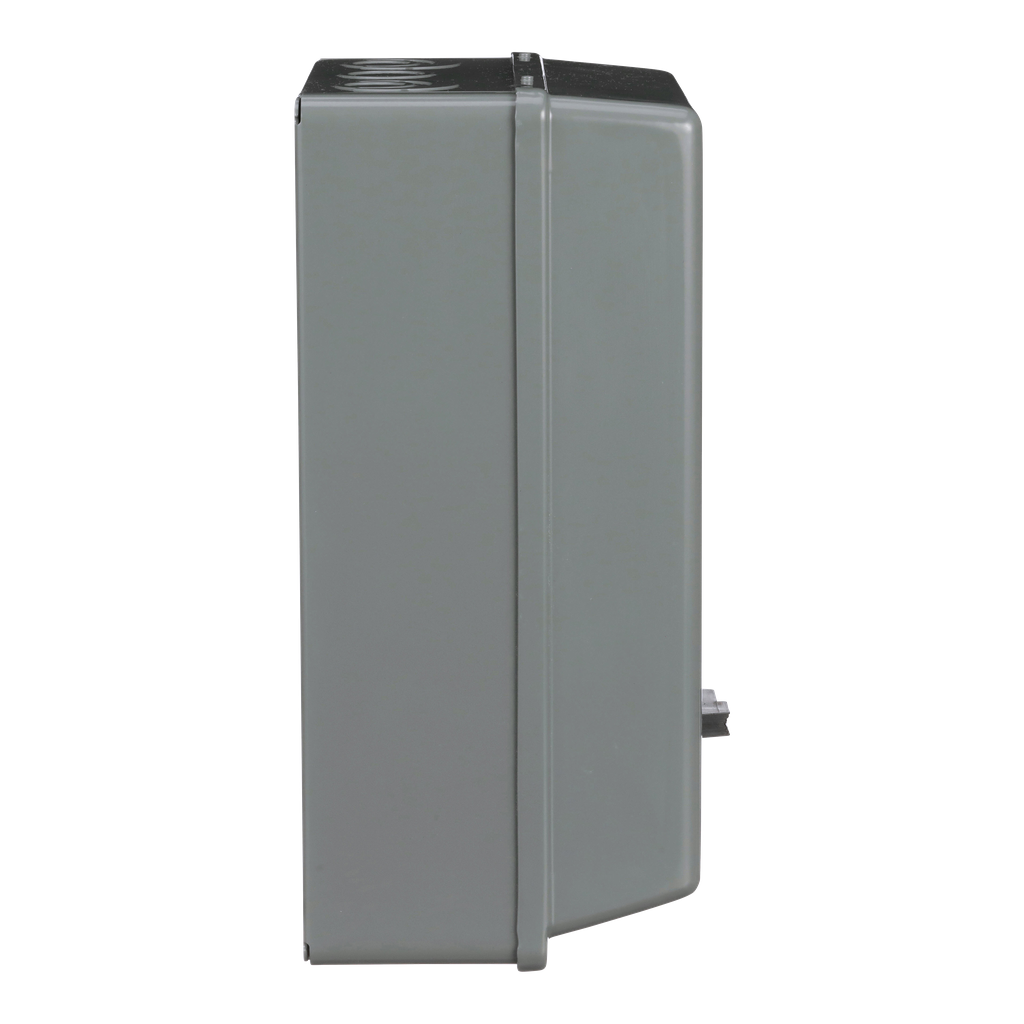

Starter, Definite Purpose, nonreversing, 50A, 3 pole, 3 phase, 120 VAC coil, melting alloy overload, NEMA 1, +options

STARTER MOTOR CONTROL 1000VAC

SQD8911DPSG53V02 8911DPSG53V02 785901024941
1173.74 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Starter, Definite Purpose, nonreversing, 50A, 3 pole, 3 phase, 120 VAC coil, melting alloy overload, NEMA 1, +options-2
  • Enclosure Material: Painted Sheet Steel
  • Line Rated Current: 50 A
  • Number of Phases: 3
  • Warranty Length: 18 mth
Inexpensive starters for applications with relatively low duty cycles
QTY
  • Specifications
  • Complementary
    • Thermal Overload Type : melting alloy
    • Range Of Product : DPS
    • Nema Degree Of Protection : NEMA 1
    • Number Of Thermal Units Required : 3
    • Locked Rotor Rated Current : 300 A 230 V AC || 250 A 460 V AC || 200 A 575 V AC
    • Poles Description : 3P
    • Enclosure Material : painted sheet steel
  • Specifications
    • [Uc] Control Circuit Voltage : 110 V AC 50 Hz || 120 V AC 60 Hz
    • Maximum Horse Power Rating : 3-3 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 1 phase || 15-15 hp 230 V AC, 3 phase || 30-30 hp 460 V AC, 3 phase || 30-30 hp 575 V AC, 3 phase
    • Line Rated Current : 50 A
    • Product Or Component Type : Definite Purpose Starter
    • Phase : 3 phase
    • [Ue] Rated Operational Voltage : 600 V AC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
