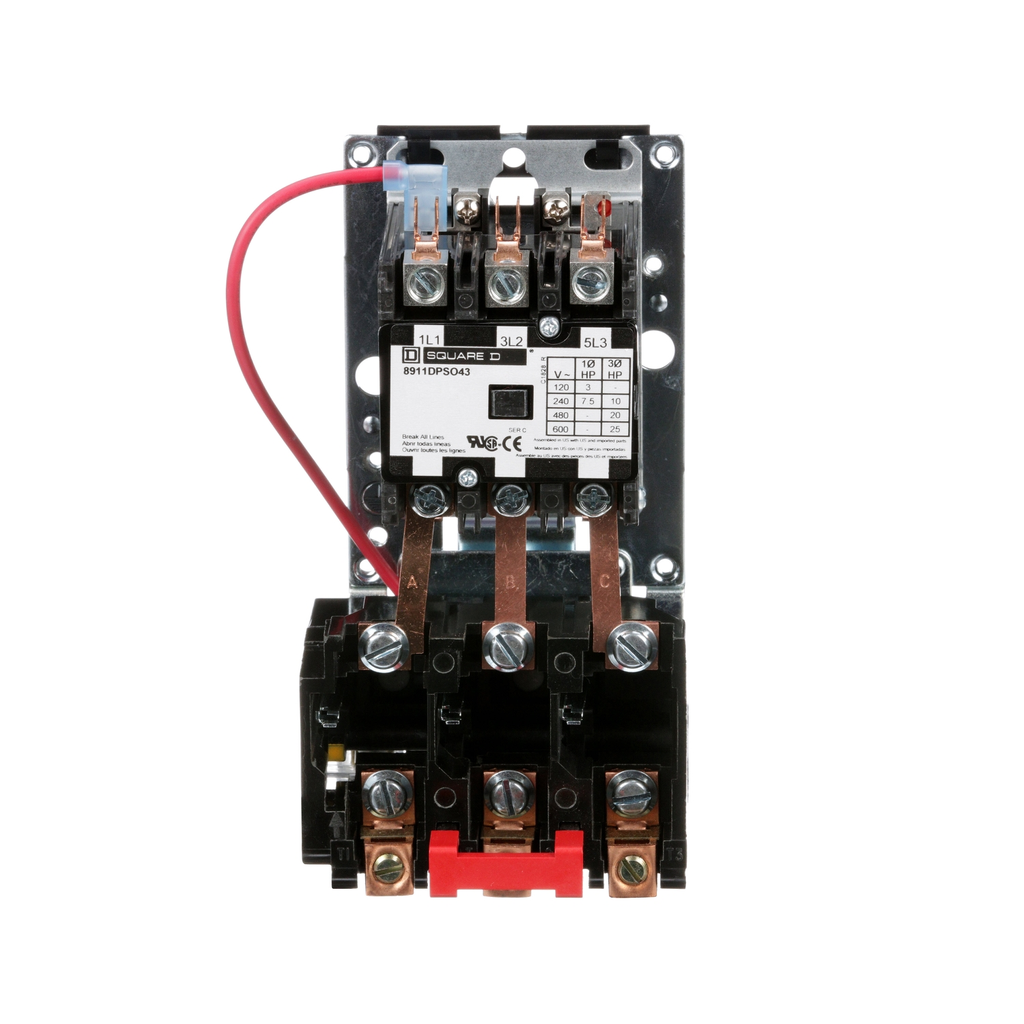

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. It also has a rating of 10 HP at 230 VAC, 20 HP at 460 VAC and 25 HP at 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. Starter is an open device. A variety of enclosure types are available. Starter is 6.73 inches tall, 3.5 inches wide and 4.09 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

• Specifications
• Country of Origin : United States
• [Uc] Control Circuit Voltage : 110 V AC 50 Hz || 120 V AC 60 Hz
• Maximum Horse Power Rating : 3-3 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 3 phase || 7.5-7.5 hp 230 V AC, 1 phase || 20-20 hp 460 V AC, 3 phase || 25-25 hp 575 V AC, 3 phase
• Product Or Component Type : Definite Purpose Starter
• Phase : 3 phase
• Line Rated Current : 40 A
• [Ue] Rated Operational Voltage : 600 V AC
• Environmental data
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Take-Back : No
• Complementary
• Thermal Overload Type : melting alloy
• Range Of Product : DPS
• Locked Rotor Rated Current : 240 A 230 V AC || 200 A 460 V AC || 160 A 575 V AC
• Nema Degree Of Protection : not rated (open device)
• Number Of Thermal Units Required : 3
• Poles Description : 3P
• Contractual warranty
• Warranty : 18 months
