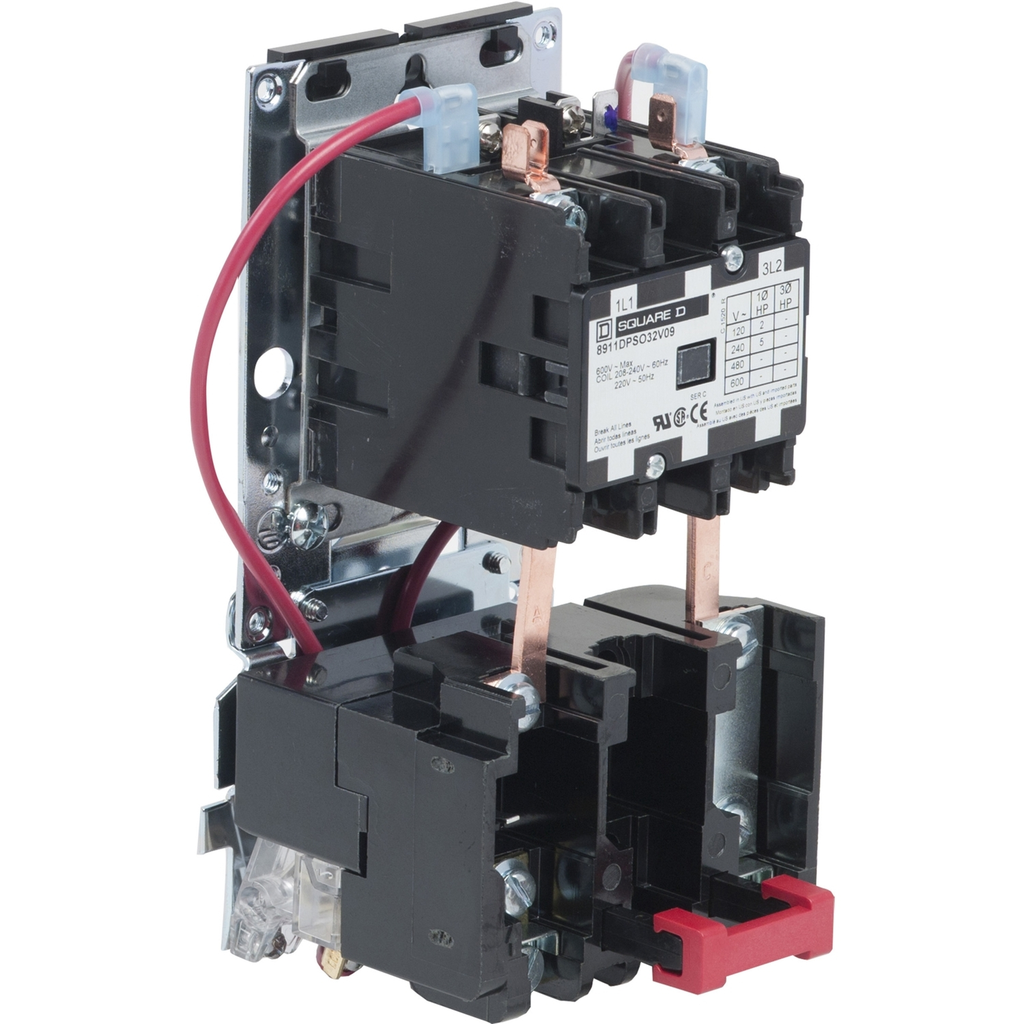

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn't have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : No
• Mercury Free : Yes
• Packaging Without Single Use Plastic : No
• Take-Back : No
• Eu Rohs Directive : Compliant with Exemptions
• Specifications
• Country of Origin : United States
• [Uc] Control Circuit Voltage : 220 V AC 50 Hz || 208...240 V AC 60 Hz
• Maximum Horse Power Rating : 3-3 hp 115 V AC, 1 phase || 7.5-7.5 hp 230 V AC, 1 phase
• Product Or Component Type : Definite Purpose Starter
• Phase : 1 phase
• Line Rated Current : 40 A
• [Ue] Rated Operational Voltage : 600 V AC
• Complementary
• Thermal Overload Type : melting alloy
• Range Of Product : DPS
• Locked Rotor Rated Current : 240 A 230 V AC || 200 A 460 V AC || 160 A 575 V AC
• Nema Degree Of Protection : not rated (open device)
• Number Of Thermal Units Required : 1
• Poles Description : 2P
• Contractual warranty
• Warranty : 18 months
