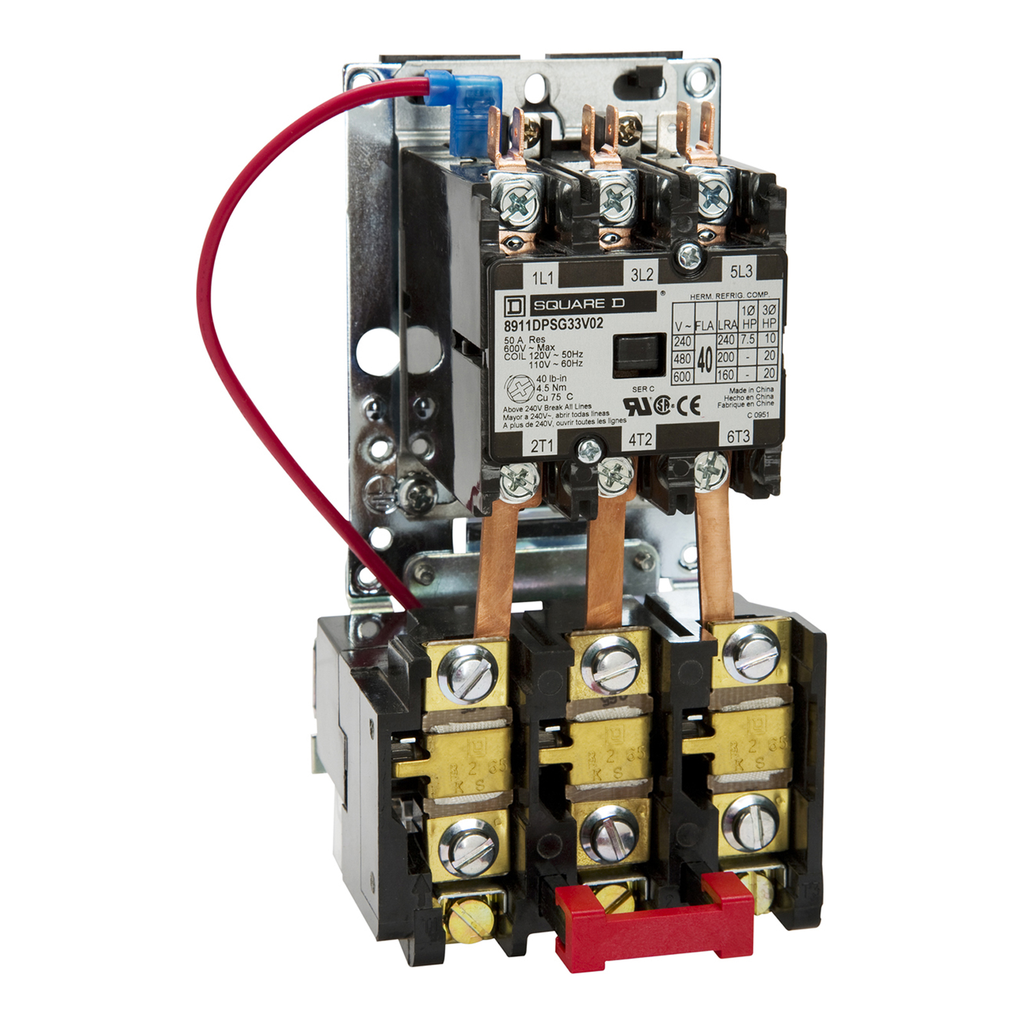

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. The starter comes nonreplaceable coil is available with a variety of coil voltages as well as auxillary contacts. All definite purpose starters hav melting alloy type overload relay uses Type B thermal units to sense over current conditions. This three pole definite purpose starter has a full load rating of 25 amperes. Starter is supplied with a 440/480 VAC 50/60 Hz coil. This starter has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. It has a rating of 10 HP at 230 VAC, 20 HP 460 VAC and 25 HP at 575 VAC poly phase. This definite purpose starter is open style starter. 8911DPS definite purpose starters are UL component recognized.

• Specifications
• Country of Origin : United States
• [Uc] Control Circuit Voltage : 440 V AC 50 Hz || 480 V AC 60 Hz
• Maximum Horse Power Rating : 2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase || 10-10 hp 230 V AC, 3 phase || 15-15 hp 460 V AC, 3 phase || 20-20 hp 575 V AC, 3 phase
• Product Or Component Type : Definite Purpose Starter
• Phase : 3 phase
• Line Rated Current : 25 A
• [Ue] Rated Operational Voltage : 600 V AC
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Packaging Without Single Use Plastic : Yes
• Take-Back : No
• Sustainable Packaging : Yes
• Eu Rohs Directive : Compliant with Exemptions
• Complementary
• Thermal Overload Type : melting alloy
• Range Of Product : DPS
• Locked Rotor Rated Current : 150 A 230 V AC || 125 A 460 V AC || 100 A 575 V AC
• Nema Degree Of Protection : not rated (open device)
• Number Of Thermal Units Required : 3
• Poles Description : 3P
• Contractual warranty
• Warranty : 18 months
