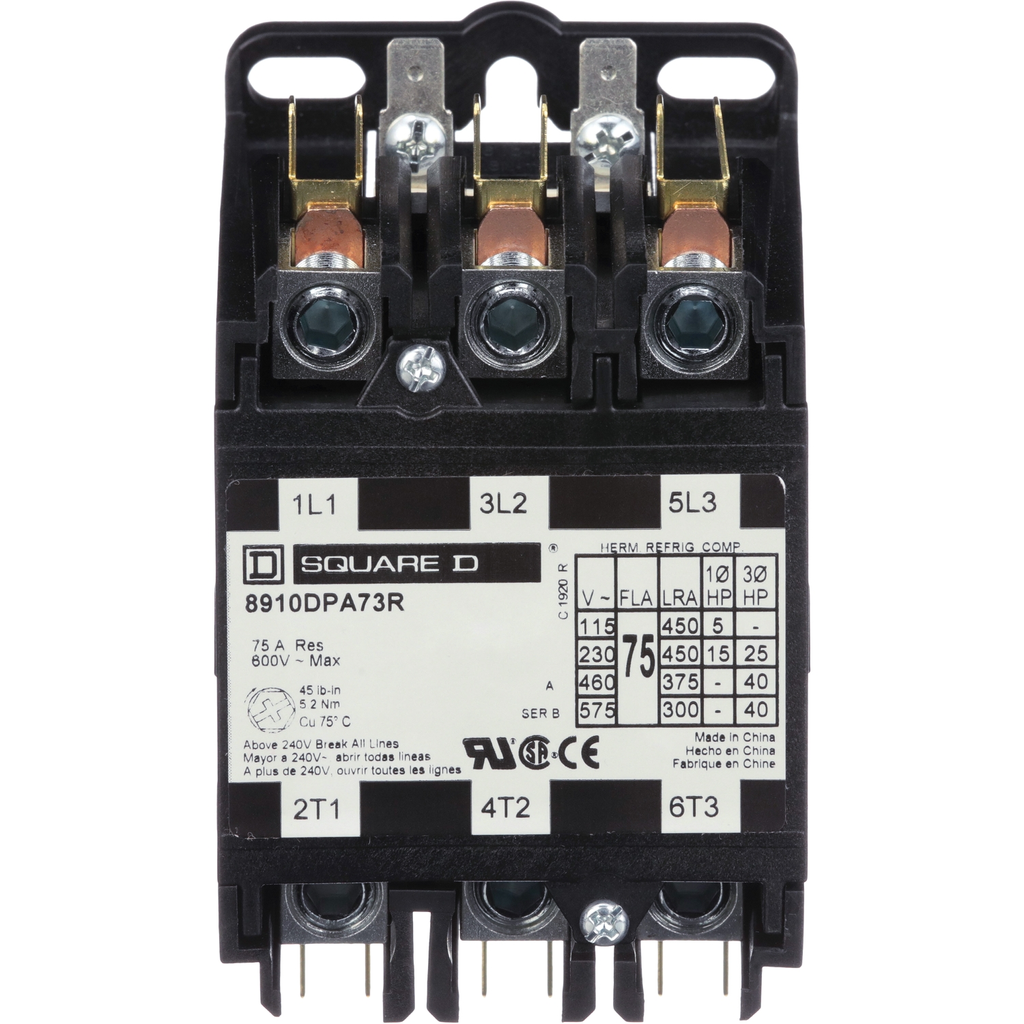

Contactor, Definite Purpose, 75A, 3 pole, 40 HP at 575 VAC, 3 phase, 208/240 VAC 60 Hz 220 VAC 50 Hz coil, open

3 POLE CTR 600VAC 75A

SQD8910DPA73RV09 8910DPA73RV09 785901768371
350.19 / EA
http://schema.org/OutOfStock
Mayer-DDS-Contactor, Definite Purpose, 75A, 3 pole, 40 HP at 575 VAC, 3 phase, 208/240 VAC 60 Hz 220 VAC 50 Hz coil, open-2
  • Country of Origin: China
  • Depth: 2.56 in
  • Height: 3.65 in
  • Warranty Length: 18 mth
  • Width: 4.1 in
QTY
  • Features
  • Specifications
  • Uc Control Circuit Voltage
    • 208...240 V AC 60 Hz
    • 220 V AC 50 Hz
  • Ue Rated Operational Voltage
    • 600 V AC
  • Electrical Connection
    • quick connect terminals
    • box lugs
  • Locked Rotor Rated Current
    • 450 A 277 V AC
    • 375 A 460 V AC
    • 300 A 575 V AC
  • Maximum Horse Power Rating
    • 5-5 hp 115 V AC, 1 phase
    • 15-15 hp 230 V AC, 1 phase
    • 25-25 hp 230 V AC, 3 phase
    • 25-25 hp 230 V AC,
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Product Certifications
    • UL Recognized
    • CSA
  • Complementary Attributes
    • Line Rated Current : 75 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Electrical systems protection from overloads and short circuits
    • B2B Bullet Point 2 : Current ranging from 20A to 90A
    • B2B Bullet Point 3 : Quick connect terminals and binder head screws for easy wiring
    • B2B Bullet Point 4 : Compact design and exclusive DIN mounting option
    • B2B Bullet Point 5 : Ideal for heating, air conditioning, refrigeration, data processing, and food service equipment
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-17
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1905
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Package Weight Lbs : 680.4 g
    • Phase : 3 phase
    • Pole Contact Composition : 3 NO
    • Poles Description : 3P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Definite Purpose Contactor
    • Range Of Product : DPA
    • Returnability : Yes
    • Sustainable Packaging : Yes
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : Definite Purpose Contactor
    • Range Of Product : DPA
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=528088068&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : China
    • Height : 3.65 in
    • Width : 4.1 in
    • Depth : 2.56 in
