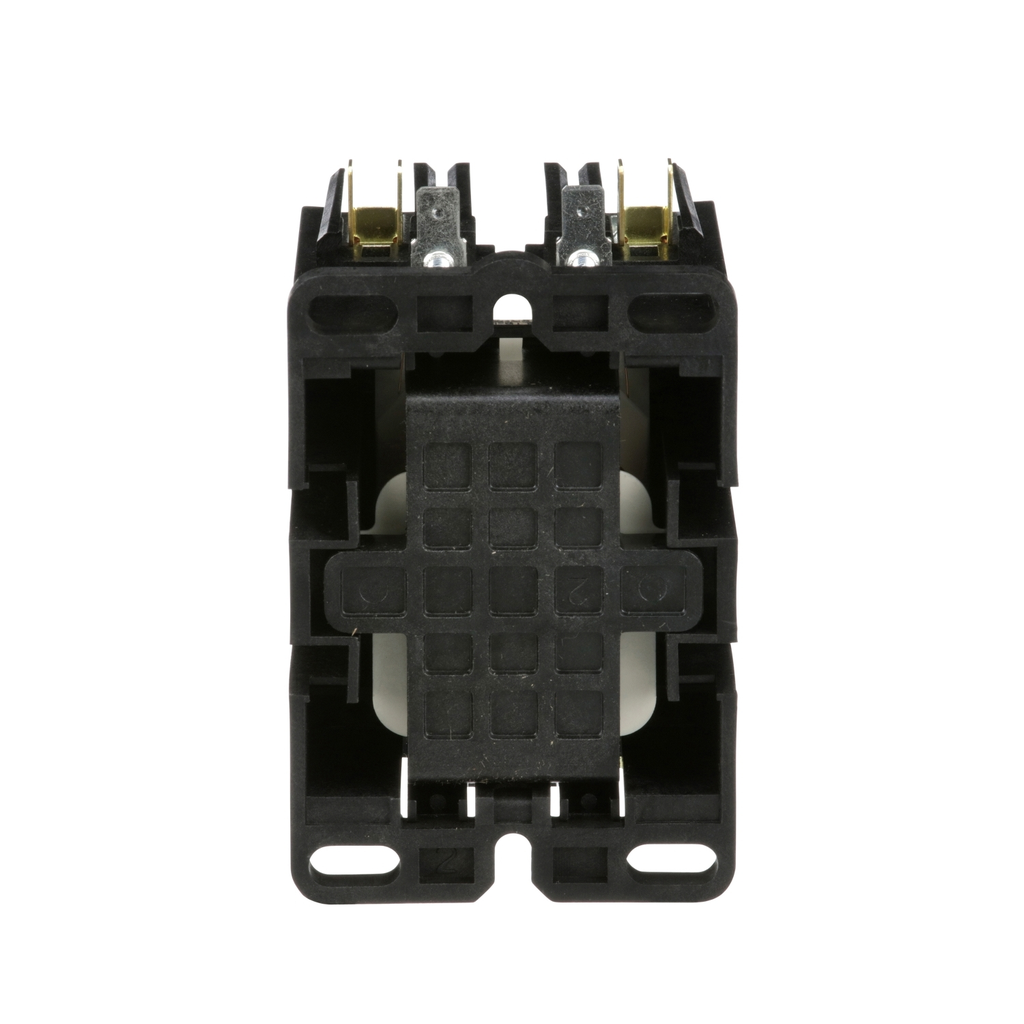

Contactor, Definite Purpose, 60A, 2 pole, 10HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open

NEMA CONTACT 60A/2P/120V COIL

SQD8910DPA62V02 8910DPA62V02 785901080824
275.97 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Contactor, Definite Purpose, 60A, 2 pole, 10HP at 230VAC, 1 phase, 110/120VAC 50/60Hz coil, open-2
  • Country of Origin: China
  • Warranty Length: 18 mth
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
  • UC Control Circuit Voltage
    • 120 V AC 60 Hz
    • 110 V AC 50 Hz
  • Locked Rotor Rated Current
    • 360 A 277 V AC
    • 300 A 460 V AC
    • 240 A 575 V AC
  • Accessories
    • 9999D10
    • 9999D01
    • 9999D11
    • 9999D20
    • 9999DMB1
    • 9991DPG3
  • Maximum Horse Power Rating
    • 5-5 hp 115 V AC, 1 phase
    • 10-10 hp 230 V AC, 1 phase
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • UE Rated Operational Voltage
    • 600 V AC
  • Important Information Attributes
    • B2B Bullet Point 1 : Electrical systems protection from overloads and short circuits
    • B2B Bullet Point 2 : Current ranging from 20A to 90A
    • B2B Bullet Point 3 : Quick connect terminals and binder head screws for easy wiring
    • B2B Bullet Point 4 : Compact design and exclusive DIN mounting option
    • B2B Bullet Point 5 : Ideal for heating, air conditioning, refrigeration, data processing, and food service equipment
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • HTML Description : Definite Purpose Contactor:Range of Product: DPALine Rated Current: 60AMotor Power Horsepower: 5HP 115VAC, 10HP 230VACNumber of Phases: 1-PhaseNumber of Poles: 2-PoleControl Circuit Voltage: 110 VAC 50Hz, 120 VAC 60HzEnclosure Rating: OpenMounting: PanelSystem Voltage: 600VACLocked Rotor Rated Current: 360A 277 VAC, 300A 460 VAC, 240A 575 VACElectrical Connection: Quick Connect Terminals, Box Lugs
    • Manufacturer : Schneider Electric
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1905
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : L - LOB initialized
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 662.245 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Definite Purpose Contactor
    • Range Of Product : DPA
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Relationship Type : Compatible relationship
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Definite Purpose Contactor
    • Range Of Product : DPA
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=560753&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant with Exemptions
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : China
