Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open

2P 40 AMP CONTACTOR

SQD8910DP42V14 8910DP42V14 785901024200
90.90 / EACH
http://schema.org/OutOfStock

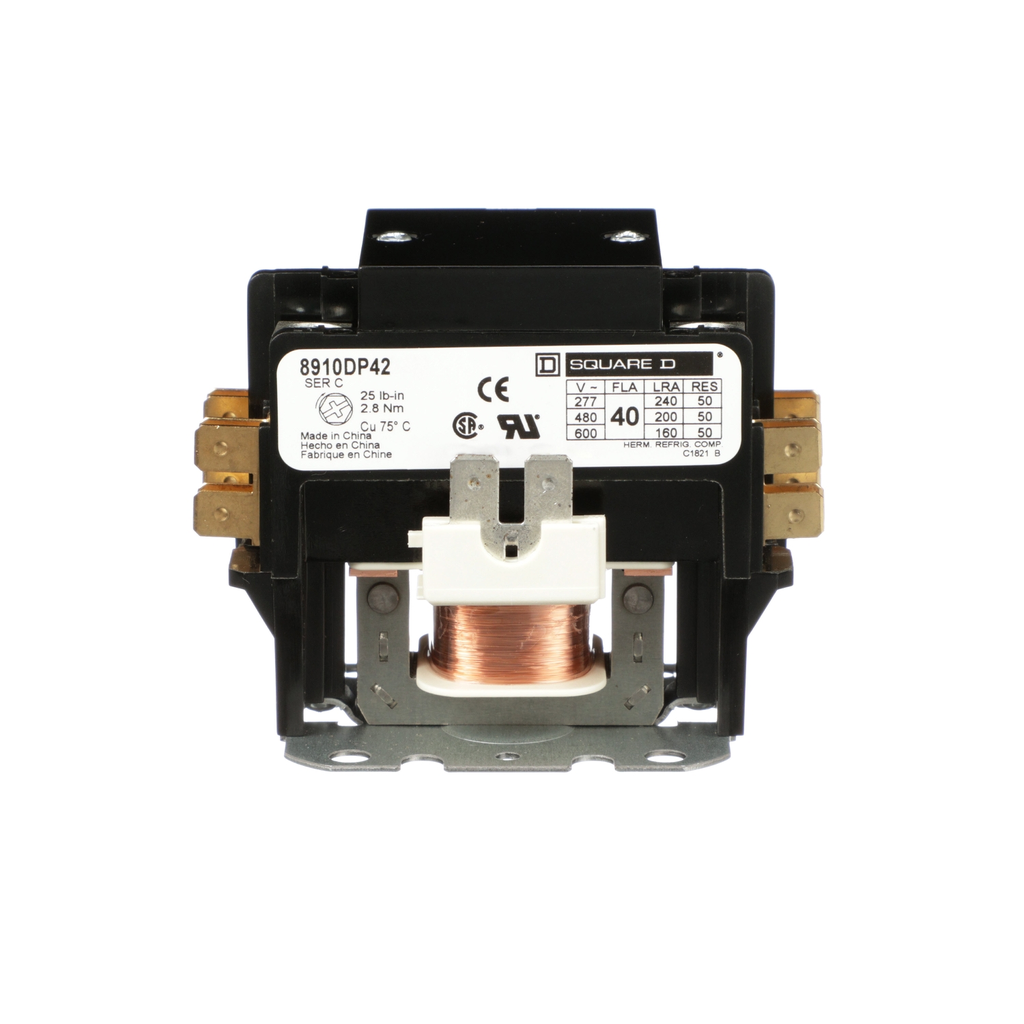

Mayer-DDS-Contactor, Definite Purpose, 40A, 2 pole, 24/24VAC 50/60Hz coil, open-2
  • Warranty Length: 18 mth
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes at 277 V maximum. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
QTY
  • Product Description
  • Specifications
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes at 277 V maximum. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
  • Complementary Attributes
    • Locked Rotor Rated Current : 240 A 277 V AC, 200 A 460 V AC, 160 A 575 V AC
    • Maximum Horse Power Rating : 2-2 hp 115 V AC, 1 phase, 5-5 hp 230 V AC, 1 phase
    • UC Control Circuit Voltage : 24 V AC 50/60 Hz
    • UE Rated Operational Voltage : 600 V AC
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SC
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • HTML Description : Definite Purpose Contactor:Range of Product: DPLine Rated Current: 40AMotor Power Horsepower: 2HP 115VAC, 5HP 230VACNumber of Phases: 1-PhaseNumber of Poles: 2-PoleControl Circuit Voltage: 24 VAC 50/60HzEnclosure Rating: OpenMounting: PanelSystem Voltage: 600VACLocked Rotor Rated Current: 200A 460 VAC, 160A 575 VAC, 240A 277 VACElectrical Connection: Quick Connect Terminals, Binder Head
    • Manufacturer : Schneider Electric
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 276.691 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Definite Purpose Contactor
    • Range Of Product : DP
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Product Kit Identifier : N
    • Product Manager : STEVEN NATALE
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : Definite Purpose Contactor
    • Range Of Product : DP
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
