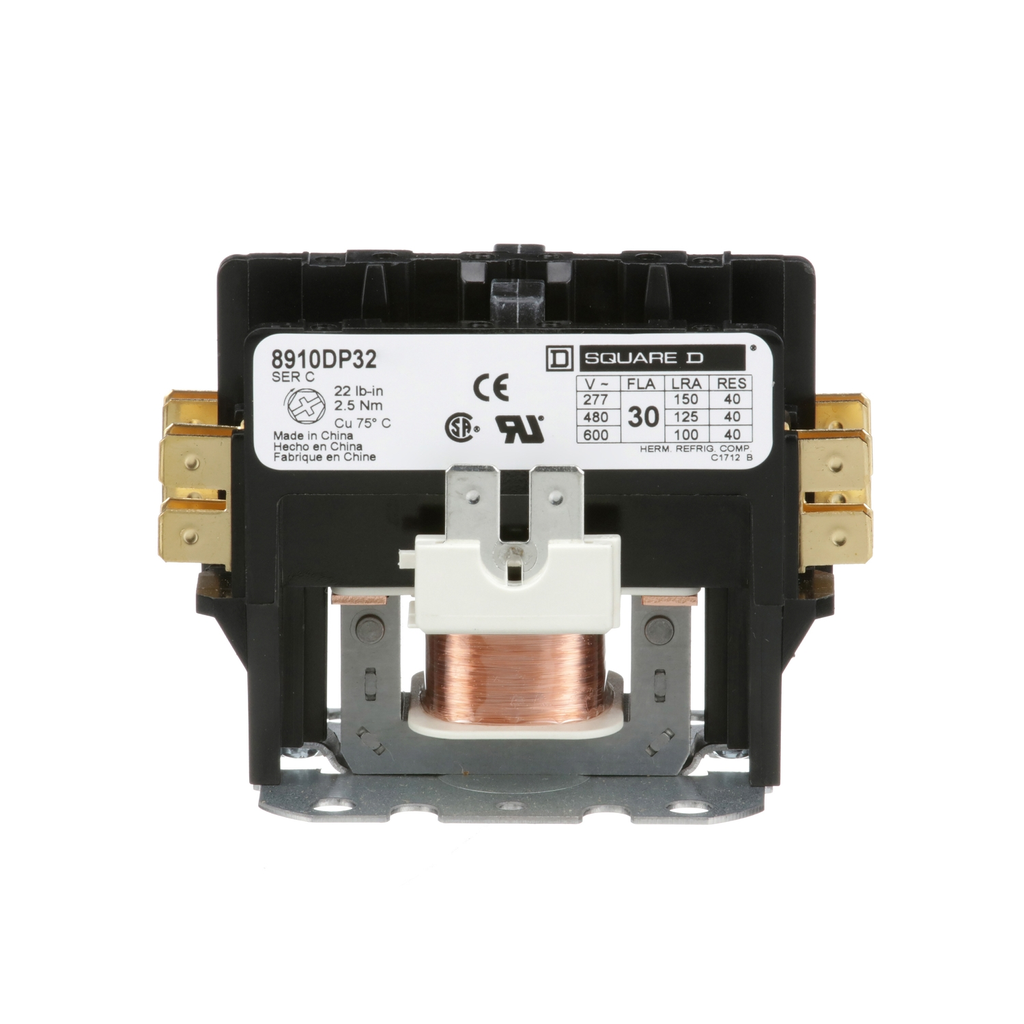

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 440/480 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.

• Environment
• Product Certifications : UL Recognized || CSA
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Take-Back : No
• Complementary
• [Uc] Control Circuit Voltage : 440 V AC 50 Hz || 480 V AC 60 Hz
• Height : 51 mm
• Locked Rotor Rated Current : 125 A 460 V AC || 100 A 575 V AC || 150 A 277 V AC
• Maximum Horse Power Rating : 2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase
• Phase : 1 phase
• Electrical Connection : binder head || quick connect terminals
• Width : 84 mm
• Depth : 62 mm
• [Ue] Rated Operational Voltage : 600 V AC
• Specifications
• Country of Origin : Mexico
• Width : 84 mm
• Height : 51 mm
• Range Of Product : DP
• Product Or Component Type : Definite Purpose Contactor
• Pole Contact Composition : 2 NO
• Poles Description : 2P
• Line Rated Current : 30 A
