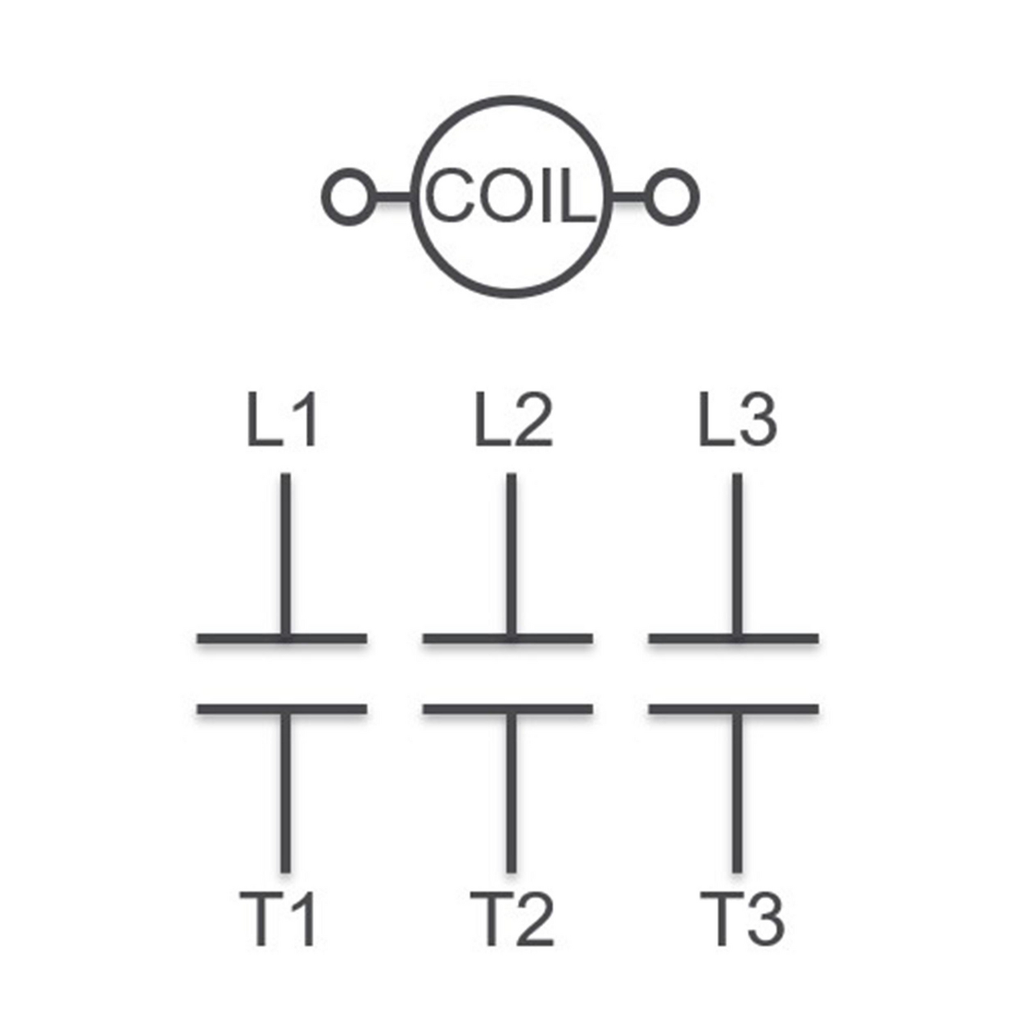

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. This contactor is bulk packaged. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.

• Environment
• Product Certifications : UL Recognized || CSA
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile : N/A
• Take-Back : No
• Complementary
• [Uc] Control Circuit Voltage : 120 V AC 60 Hz || 110 V AC 50 Hz
• Locked Rotor Rated Current : 240 A 277 V AC || 200 A 460 V AC || 160 A 575 V AC
• Maximum Horse Power Rating : 3-3 hp 115 V AC, 1 phase || 7.5-7.5 hp 230 V AC, 1 phase || 10-10 hp 230 V AC, 3 phase || 20-20 hp 460 V AC, 3 phase || 25-25 hp 575 V AC, 3 phase
• Phase : 3 phase
• Electrical Connection : box lugs || quick connect terminals
• Depth : 76 mm
• [Ue] Rated Operational Voltage : 600 V AC
• Specifications
• Country of Origin : China
• Range Of Product : DPA
• Product Or Component Type : Definite Purpose Contactor
• Type Of Packing : bulk
• Pole Contact Composition : 3 NO
• Poles Description : 3P
• Line Rated Current : 40 A
