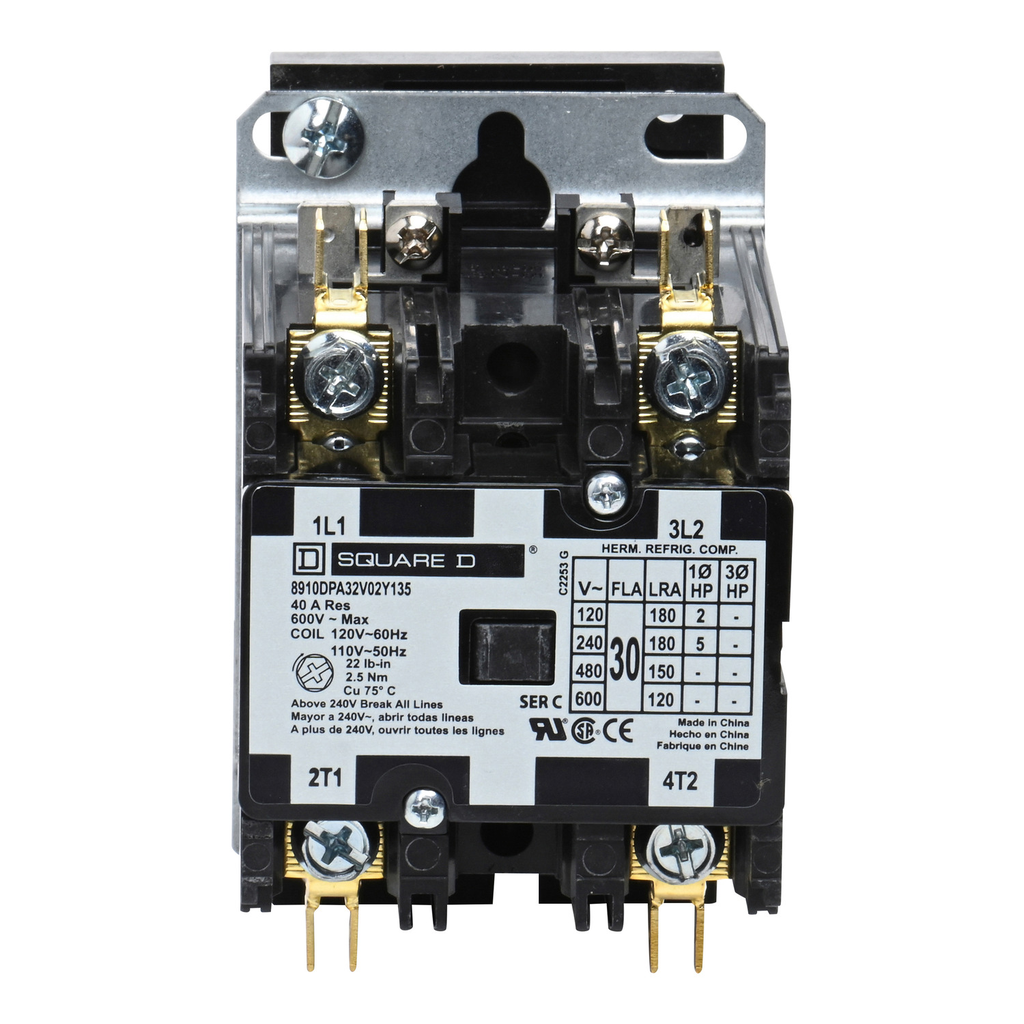

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite p

• Uc Control Circuit Voltage
• 120 V AC 60 Hz
• 110 V AC 50 Hz
• Ue Rated Operational Voltage
• 600 V AC
• Electrical Connection
• binder head
• quick connect terminals
• Locked Rotor Rated Current
• 150 A 460 V AC
• 120 A 575 V AC
• 180 A 277 V AC
• Accessories
• 9999D01
• 9999D10
• 9999D11
• 9999D20
• 9999DMB1
• 9991DPG1
• Maximum Horse Power Rating
• 2-2 hp 115 V AC, 1 phase
• 5-5 hp 230 V AC, 1 phase
• Product Certifications
• UL Recognized
• CSA

• Complementary Attributes
• Line Rated Current : 30 A
• Important Information Attributes
• B2B Bullet Point 1 : Electrical systems protection from overloads and short circuits
• B2B Bullet Point 2 : Current ranging from 20A to 90A
• B2B Bullet Point 3 : Quick connect terminals and binder head screws for easy wiring
• B2B Bullet Point 4 : Compact design and exclusive DIN mounting option
• B2B Bullet Point 5 : Ideal for heating, air conditioning, refrigeration, data processing, and food service equipment
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-08
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1905
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Mounting Support : 35 mm DIN rail
• Package Weight Lbs : 476.272 g
• Phase : 1 phase
• Pole Contact Composition : 2 NO
• Poles Description : 2P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Definite Purpose Contactor
• Range Of Product : DPA
• Returnability : Yes
• Sustainable Packaging : Yes
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 1 phase
• Product Or Component Type : Definite Purpose Contactor
• Range Of Product : DPA
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=559823&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Eu Rohs Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
