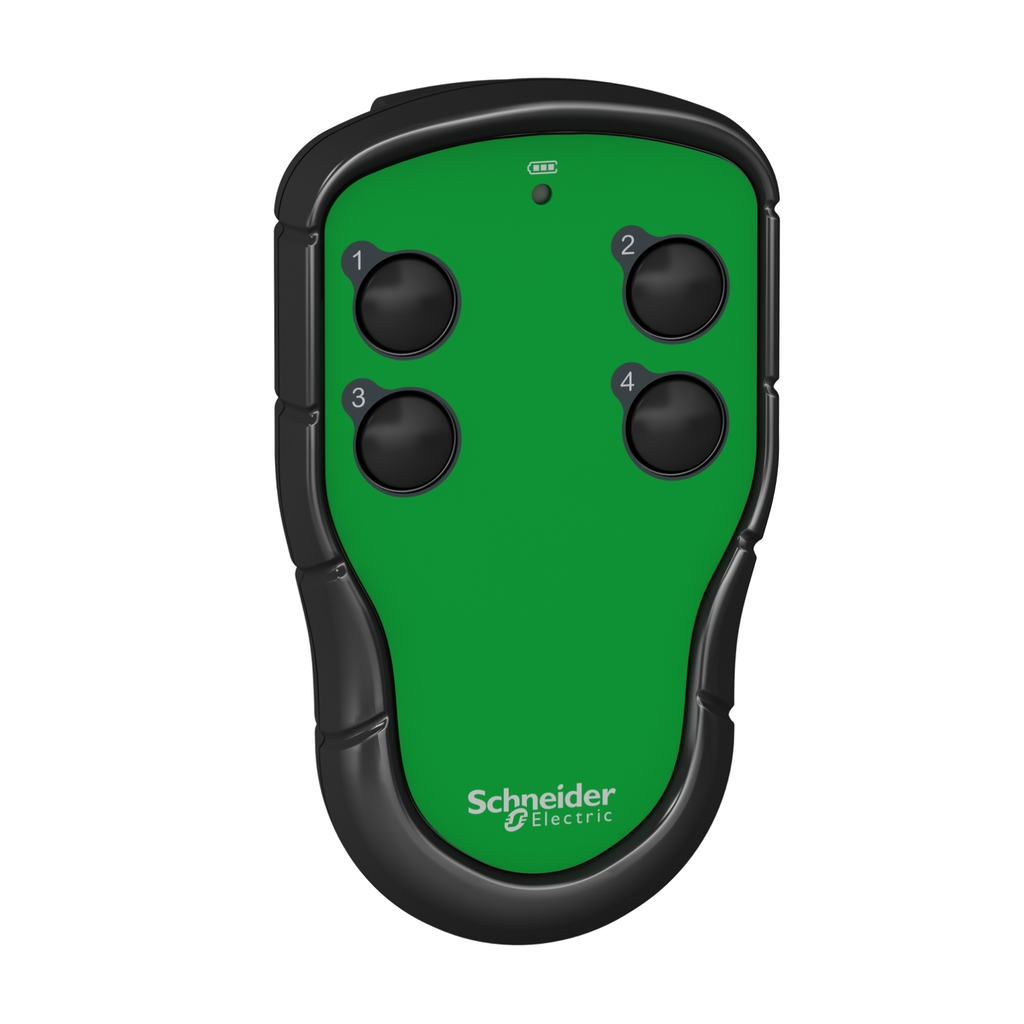

This remote control (Transmitter) with display is designed as a transmitter for wireless remote control system It has 4 single step push-buttons and can operate at a distance of 50m It is impact resistant (strength), dust resistant (strength), water resistant (strength) and vibration resistant (strength) thanks to its IP67, making it ideal for operation in harsh (heavy) environments It is compatible with base station ZARB18W and ZARB18H

• Autonomy
• > 100 h with alkaline batteries
• Maximum Sensing Distance
• 300 m in free field
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005520_3D-CAD&p_File_name=MCADID0005520_2D-top.dxf
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Control Button Type
• 4 single step push-button
• Material
• push-button cover silicone rubber
• enclosure ABS + PET
• Relative Humidity
• 0-95 % -20-60 °C operating
• Battery Type
• 2 AAA/LR3 alkaline

• Communications & Management Attributes
• Communication Network Type : wireless
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• HTML Description : Hand-held remote control, Harmony Pocket Remote, 4 single-step push buttons
• Manufacturer : Square D
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2312040EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1415
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 7
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Device Short Name : ZART
• Display Type : 1 LED
• Package Weight Lbs : 175.0 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : hand-held remote control
• Range Of Product : Harmony Pocket Remote
• Response Time : < 500 ms
• Returnability : Yes
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Accessories : ZARC620
• Pep Code : ENVPEP2312040EN
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : hand-held remote control
• Range Of Product : Harmony Pocket Remote
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=485391121&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2312040EN
• Environmental Disclosure : ENVPEP2312040EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP67
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Storage Altitude : 0-3000 m
• Pep Code : ENVPEP2312040EN
• Specifications
• Country of Origin : China
