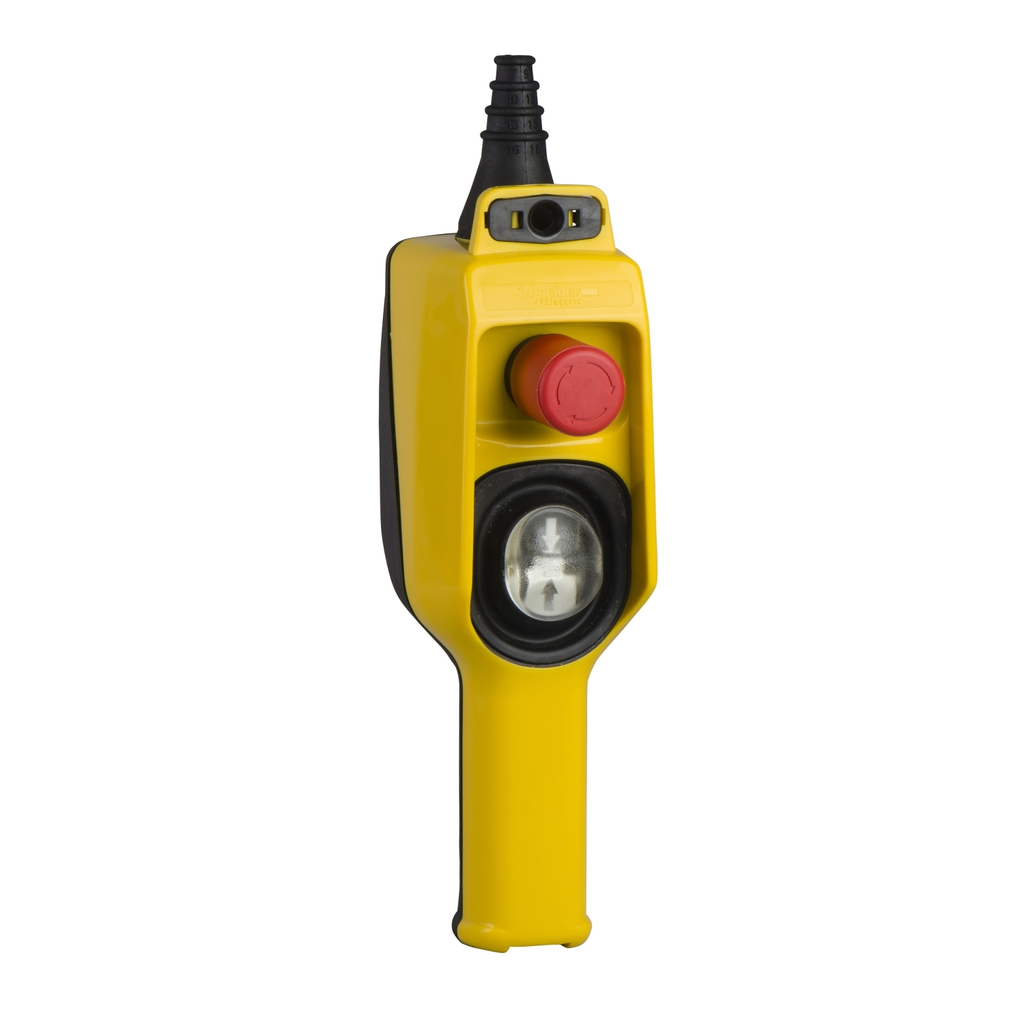

This Harmony XACD22A0101 is a pendant station 1 rocker lever Emergency stop. This yellow control station is double insulated. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

• Connections Terminals
• screw clamp terminals, 1 x 2.5 mm² with or without cable end
• screw clamp terminals, 2 x 1.5 mm² with or without cable end
• screw clam
• Overvoltage Category
• class II conforming to IEC 61140
• IP Degree Of Protection
• IP65 conforming to IEC 60529
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
• Control Button Type
• stop push-button Ø 30 mm 1 NC latching
• first direction button 1 NO raise, slow
• second direction
• Cable Entry
• rubber sleeve with stepped entry 7-18 mm
• UI Rated Insulation Voltage
• 600 V 3)IEC 60947-1
• Rated Operational Power In W
• 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C
• 40 W DC-13
• Vibration Resistance
• 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
• Terminal Identifier
• (11-12)NC
• (13-14)NO
• Short Circuit Protection
• 10 A fuse protection cartridge gG
• Contact Code Designation
• A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A
• A600 AC-15, Ue = 240 V
• Shock Resistance
• 70 gn IEC 60068-2-27
• Product Compatibility
• ZB2BE101 for each direction
• ZB2BE102 for emergency stop
• UIMP Rated Impulse Withstand Voltage
• 6 kV IEC 60947-1

• Physical Attributes
• Control Station Color : yellow
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 10/15/2025
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Control Station Color : yellow
• Control Station Type : double insulated
• Device Short Name : XACD
• Mechanical Interlocking : with mechanical interlocking
• Motor Starter Type : reversing
• Operating Force : 16-16 N
• Package Weight Lbs : 495.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : pendant control station
• Range Of Product : Harmony XAC
• Returnability : Yes
• Sustainable Packaging : Yes
• Terminals Description ISO N 1 : (13-14)NO
• Terminals Description ISO N 2 : (11-12)NC
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• ITHE Conventional Enclosed Thermal Current : 10:00 AM
• Pep Code : ENVPEP070905EN
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : pendant control station
• Range Of Product : Harmony XAC
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=673384&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP070905EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP070905EN
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
