Harmony eXLhoist, standard, XARS8D18H system with charger, shoulder belt, cable USB/RJ45 and config software

Harmony eXLhoist, standard, XA

SQDXARSK8D18H XARSK8D18H 3606480662423
1995.88 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony eXLhoist, standard, XARS8D18H system with charger, shoulder belt, cable USB/RJ45 and config software-1
  • Certifications: CE, CSA, C-tick, EAC, JIS, KC, UL
  • Number of Channels: 50
  • Standard: ARIB STD-T81 Radio, EN 12077-2 Hoisting Applications, EN 13557 Hoisting Applications, EN 14439 Hoisting Applications, EN 14492 Hoisting Applications, EN 15011 Hoisting Applications, EN/IEC 60204-1 Safety, EN/IEC 60204-32 Hoisting Applications, EN/IEC 61508 Safety, EN/IEC 62061 Safety, EN/ISO 13849-1 Safety, EN/ISO 13850 Safety, ETSI EN 301 489-1 Radio, ETSI EN 301 489-17 Radio, ETSI EN 301 489-3 Radio

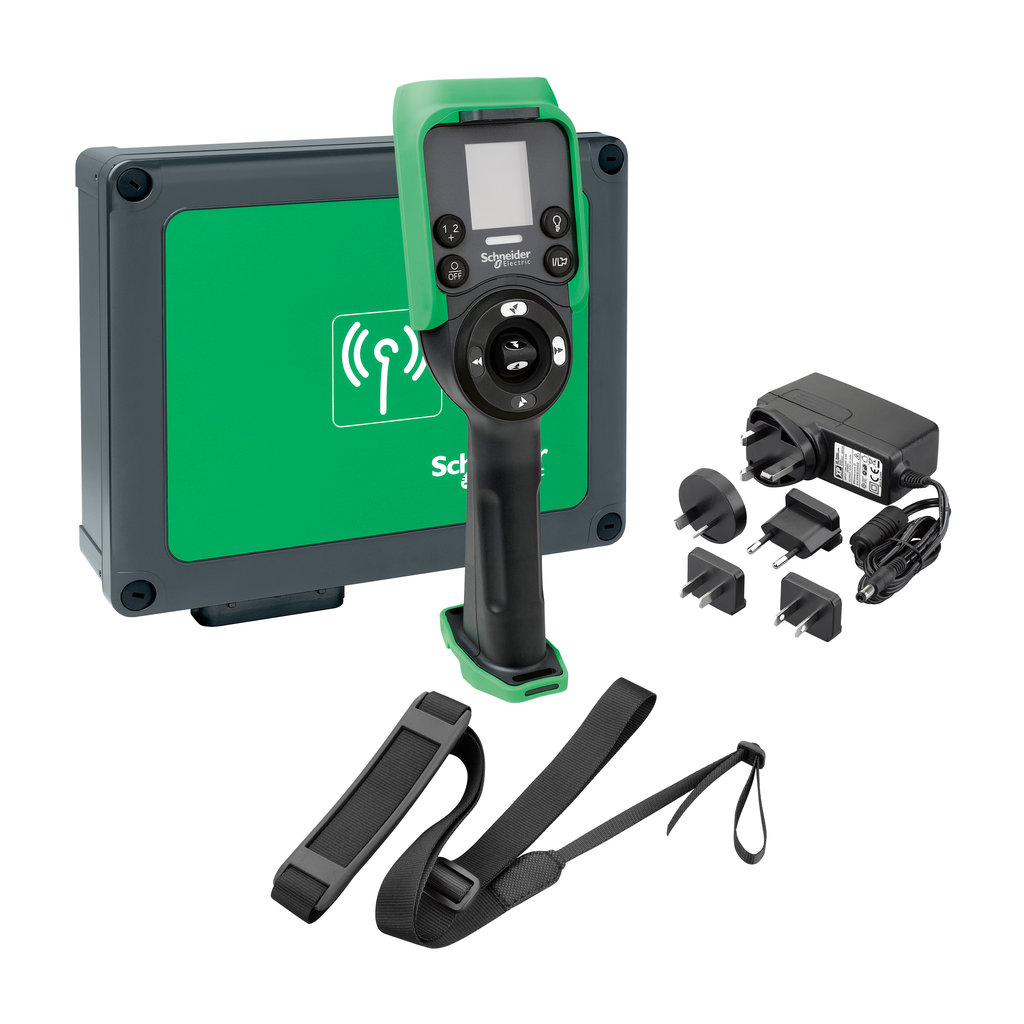

This starting kit is part of the range wireless remote control system Harmony eXLhoist. It comprises remote control system (ZART8D + ZARB18H), accessories (ZARC01 + ZARC02), USB/RJ45 (TCSMCNAM3M002P) cable and configuration software. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation. It weighs 2.8kg. It is designed for material handling and hoisting applications. The base station and the wireless control device are UL/CSA, CE, EAC certified.
QTY
  • Product Description
  • Specifications
This starting kit is part of the range wireless remote control system Harmony eXLhoist. It comprises remote control system (ZART8D + ZARB18H), accessories (ZARC01 + ZARC02), USB/RJ45 (TCSMCNAM3M002P) cable and configuration software. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation. It weighs 2.8kg. It is designed for material handling and hoisting applications. The base station and the wireless control device are UL/CSA, CE, EAC certified.
  • Complementary
    • Connector Type : industrial socket
    • Operating Distance : 100 m in free air
    • Transmission Frequency : 2.4 GHz
    • Cable Entry : cable gland
    • Kit Composition : base station || cable || shoulder belt || configuration software || remote control
    • Communication Network Type : wireless bluetooth low energy
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1403029EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1403029EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Specifications
    • Range Of Product : Harmony eXLhoist
    • Number Of Channels : 50
    • Product Specific Application : material handling || hoisting applications
    • Control Station Application : stop function SIL 2 maximum can reach PL d/category 3)EN/IEC 62061 || stop function SIL 2 maximum can reach PL d/category 3)EN/ISO 13849-1 || emergency stop function SIL 3 maximum can reach PL e/category 4)EN/IEC 62061 || emergency stop function SIL 3 maximum can reach PL e/category 4)EN/ISO 13849-1 || motion function SIL 1 maximum can reach PL c/category 1)EN/IEC 62061 || motion function SIL 1 maximum can reach PL c/category 1)EN/ISO 13849-1 || limiter protection function SIL 1 maximum can reach PL c/category 1)EN/IEC 62061 || limiter protection function SIL 1 maximum can reach PL c/category 1)EN/ISO 13849-1
    • Product Or Component Type : control station
    • Device Short Name : XARS
    • Control Station Type : wireless
  • Environment
    • Relative Humidity : 0-95 % -20-45 °C storage
    • Product Certifications : CE || UL || CSA || C-tick || JIS || KC || EAC
    • Electromagnetic Compatibility : resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 || resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2 || resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3
    • Radio Agreement : ARIB || RSS || FCC || ANATEL || SRRC || ICASA
    • Standards : EN/IEC 60204-1 safety || EN 14439 hoisting applications || EN 14492 hoisting applications || ETSI EN 301 489-1 radio || ETSI EN 301 489-3 radio || ETSI EN 301 489-17 radio || EN/ISO 13849-1 safety || ARIB STD-T81 radio || EN/IEC 62061 safety || EN/IEC 61508 safety || EN/ISO 13850 safety || EN/IEC 60204-32 hoisting applications || EN 13557 hoisting applications || EN 12077-2 hoisting applications || EN 15011 hoisting applications
