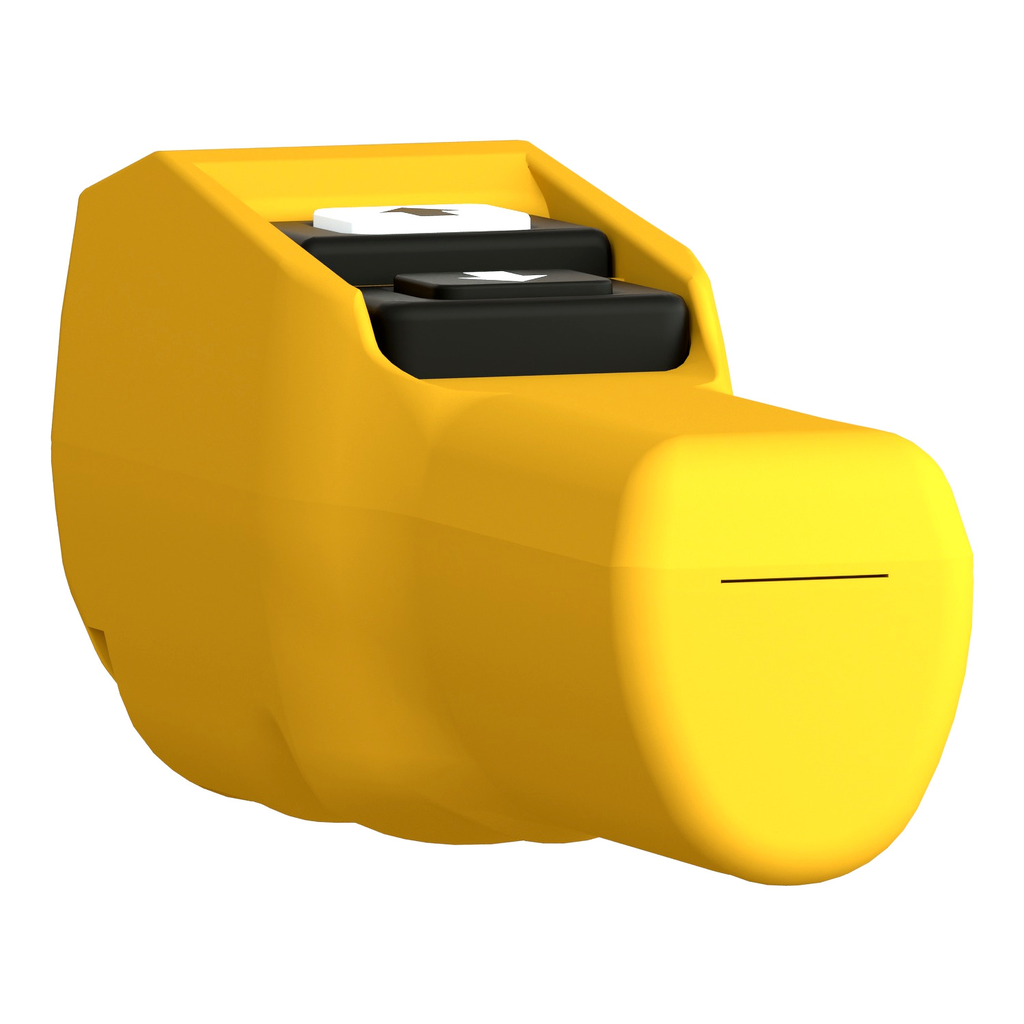

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its pistol grip design makes it very intuitive and comfortable for the operator to use. It comprises a polypropylène enclosure with 2 booted push buttons mechanically interlocked. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.

• Features
• For auxiliary circuits
• Double insulated polypropylene casing
• Screw clamp terminal connections
• Simple;assured operator pendant control
• Designed for mechanical handling
• Highly robust
• Mechanical durability of 1 million cycles
• IP65 and IK08 degree of protection
• Wide range of operating temperature from -25°C to 70°C
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Resistance Across Terminals : 25 MOhm
• Rated Operational Power In W : 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
• Ui Rated Insulation Voltage : 600 V 3)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Contact Code Designation : A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
• Terminal Identifier : (11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
• Connections Terminals : screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
• Certificate Agency : UL, CSA
• Terminals Description Iso N°1 : (13-14)NO, (11-12)NC, (13-14)NO, (11-12)NC
• Carbon Footprint Of The Distribution Phase A4 : 0.0592553535, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.3 kg CO2 eq., 0.2558573427
• Carbon Footprint Of The Installation Phase A5 : 0.0014121955, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.4025302253
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Return Indicator : Y
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Cable Entry : rubber sleeve with stepped entry 7-15 mm
• Contact Operation : slow-break
• Control Button Type : first push-button 1 NC + 1 NO raise, slowsecond push-button 1 NC + 1 NO lower, slow
• Control Station Application : control of single speed hoist motor
• Control Station Composition : 2 booted push-buttons
• Control Station Type : double insulated
• Control Type : intuitive
• Device Short Name : XACA pistol grip
• Electrical Circuit Type : control circuit
• Enclosure Material : polypropylene
• Enclosure Type : complete ready for use
• Mechanical Durability : 1000000 cycles
• Mechanical Interlocking : with mechanical interlocking
• Operating Force : 13-15 N
• Overvoltage Category : class II conforming to IEC 61140
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : pendant control station
• Protective Treatment : TH
• Range Of Product : Harmony XAC
• Returnability : Yes
• Shock Resistance : 100 gn IEC 60068-2-27
• Software Version : EIME v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
• Vibration Resistance : 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Control Station Color : yellow
• Database Version : 2022-01
• Data Source : extrapolated product
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8537109170
• Ithe Conventional Enclosed Thermal Current : 10 A
• Short Circuit Protection : 10 A fuse protection cartridge gG
• Warranty In Months : 18
• Functional Unit Description : XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Recyclability Potential In % : 32
• Environment Attributes Main
• Ambient Air Temperature For Operation : -25-70 °C, -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 1.719055117
• Environmental Disclosure : ENVPEP0709005EN
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP65 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Product Compatibility : ZB2BE102 + ZB2BE101 for each direction
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP0709005EN
• Pep Verification Date : 2022-11-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : pendant control station
• Range Of Product : Harmony XAC
• ETIM
• ETIM 8 : EC000234
• ETIM 9 : EC000234
• ETIM 10 : EC000234
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Weight : 292 g
