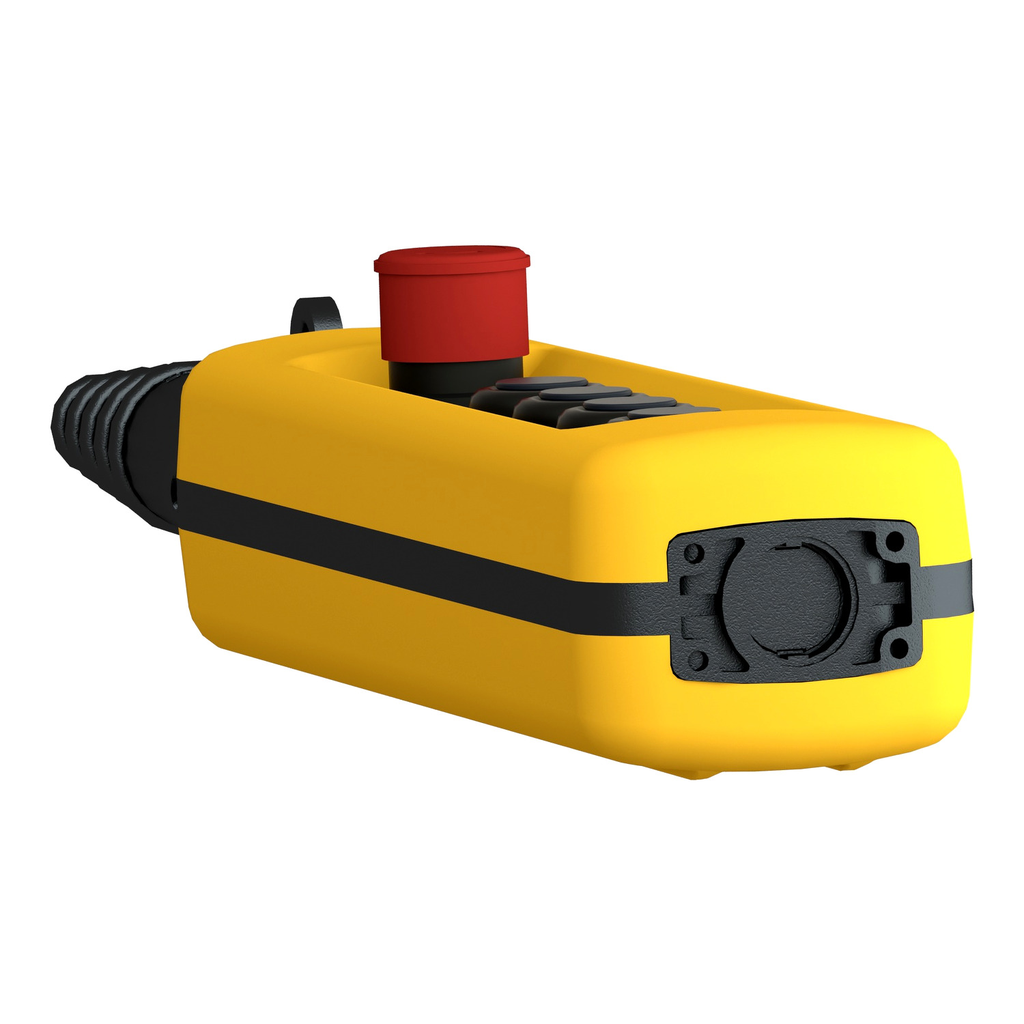

This Harmony XAC, yellow pendant station for hoist motor has single speed. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 4 push buttons and 1 emergency stop with "raise", "lower", "left", "right" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Control Station Color : yellow
• Complementary Attributes
• Rated Operational Power In W : 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
• UI Rated Insulation Voltage : 600 V 3)
• UIMP Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Contact Code Designation : A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
• Control Button Type : first push-button 1 NO raise, slow, second push-button 1 NO lower, slow, fourth push-button 1 NO left, slow, third push-button 1 NO right, slow, stop push-button Ø 40 mm 1 NC latching
• Operating Force : 10-10 N push-button, 8-8 N emergency stop
• Terminal Identifier : (11-12)NC, (13-14)NO
• Carbon Footprint Of The Distribution Phase A4 : 0.13665384615384615, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 2.4179529914529914
• Carbon Footprint Of The Installation Phase A5 : 0.16401709401709402, 0.2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 5 kg CO2 eq., 5.155982905982905
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.00010874999999999997
• Connections Terminals : screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end, screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• HTML Description : Pendant Control station XAC-A, 4 pushbuttons 1 Emergency stop
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Cable Entry : rubber sleeve with stepped entry 8-26 mm
• Control Station Color : yellow
• Control Station Type : double insulated
• Device Short Name : XACA
• Mechanical Interlocking : with mechanical interlocking between pairs
• Overvoltage Category : class II conforming to IEC 61140
• Package Weight Lbs : 777.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : pendant control station
• Range Of Product : Harmony XAC
• Returnability : Yes
• Shock Resistance : 100 gn IEC 60068-2-27
• Short Circuit Protection : 10 A fuse protection cartridge gG
• Sustainable Packaging : Yes
• Terminals Description ISO N 1 : (13-14)NO
• Terminals Description ISO N 2 : (11-12)NC
• Total Lifecycle Carbon Footprint : 8 kg CO2 eq.
• Vibration Resistance : 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• ITHE Conventional Enclosed Thermal Current : 10 A
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP0709005EN
• Pep Verification Date : 2024-06-17
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : XAC is a complete ready to use pendant station for control of single-speed motors and also ideal for hoists, travelling cranes in Industrial applications. Product has life span of 10 years with power consumption of 0.000012 W with use rate of 15% active and adhering to international standards IEC 60947-5-1 & UL 508.
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Product Manager : SU-JIN NG
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• Product Compatibility : ZB2BE101 for each direction, ZB2BE102 for emergency stop
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 7.874715587606837
• Environmental Disclosure : ENVPEP0709005EN
• IP Degree Of Protection : IP65 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP0709005EN
• Pep Verification Date : 2024-06-17
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : pendant control station
• Range Of Product : Harmony XAC
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
