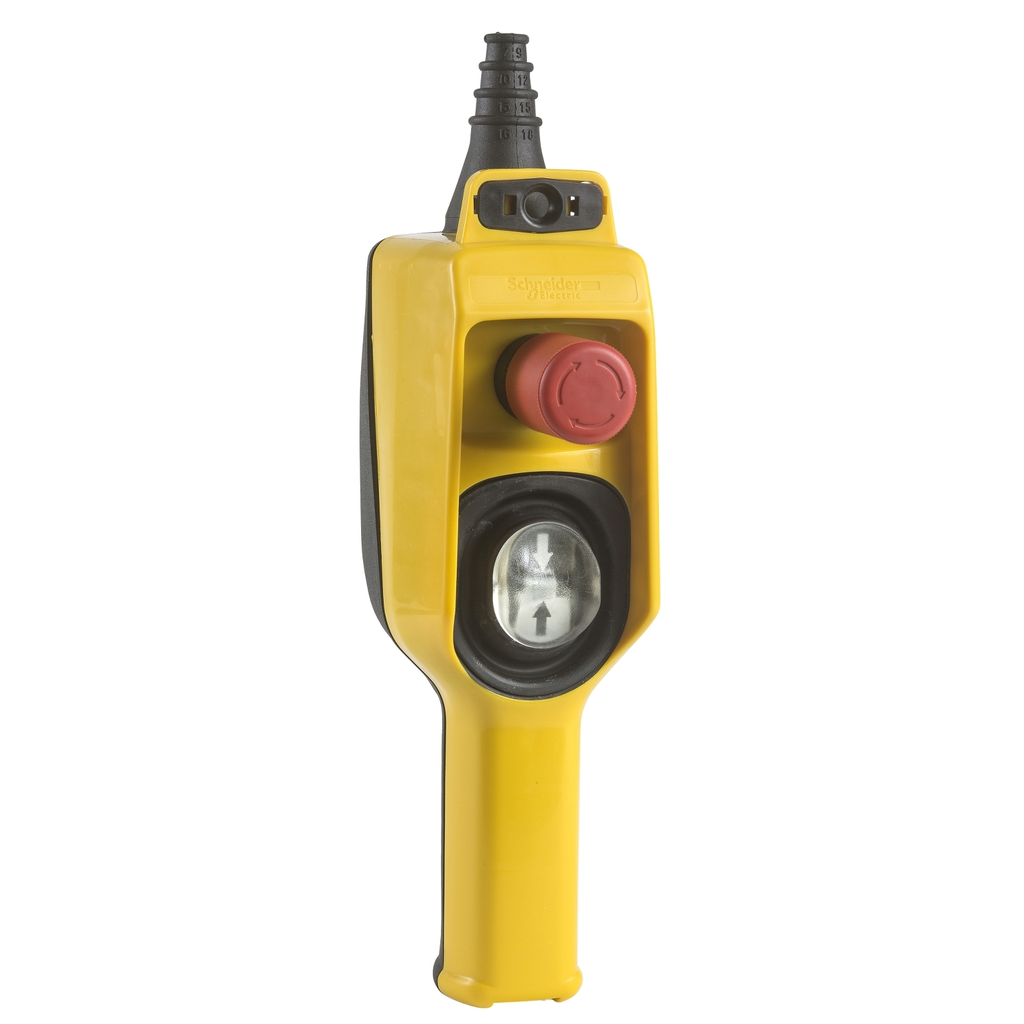

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed hoist motors. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a polypropylène enclosure with one 2-directional operator, reversing, and mechanically interlocked and 1 trigger action latching emergency stop diameter 30mm operator. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Ik Degree Of Protection : IK08 conforming to IEC 62262
• Control Station Application : control of single speed hoist motor
• Terminal Identifier : (11-12)NC || (13-14)NO
• Ambient Air Temperature For Operation : -25-70 °C
• Terminals Description Iso N°2 : (11-12)NC
• Terminals Description Iso N°1 : (13-14)NO || (11-12)NC
• Standards : CSA C22.2 No 14 || UL 508 || IEC 60947-5-1 || IEC 60204-32
• Maximum Resistance Across Terminals : 25 MOhm
• Short-Circuit Protection : 10 A fuse protection cartridge gG
• Cable Entry : rubber sleeve with stepped entry 7-18 mm
• Shock Resistance : 70 gn IEC 60068-2-27
• Enclosure Type : complete ready for use
• Vibration Resistance : 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
• Net Weight : 0.425 kg
• Product Compatibility : ZB2BE102 for emergency stop || ZB2BE102 + ZB2BE101 for each direction
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Ip Degree Of Protection : IP65 conforming to IEC 60529
• Control Station Type : double insulated
• Control Type : intuitive
• Motor Starter Type : reversing
• Connections - Terminals : screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
• [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
• Ambient Air Temperature For Storage : -40-70 °C
• Control Station Composition : 1 2-directional button + 1 emergency stop
• Overvoltage Category : class II conforming to IEC 61140
• Contact Operation : slow-break
• Mechanical Interlocking : with mechanical interlocking
• Control Station Colour : yellow
• Mechanical Durability : 3000000 cycles
• Operating Force : 16-16 N
• Control Button Type : stop push-button Ø 30 mm 1 NC latching || first direction button 1 NC + 1 NO raise, slow || second direction button 1 NC + 1 NO lower, slow
• [Ithe] Conventional Enclosed Thermal Current : 10 A
• Electrical Circuit Type : control circuit
• Enclosure Material : polypropylene
• Contact Code Designation : A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
• Protective Treatment : TH
• Rated Operational Power In W : 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Take-Back : No
• Specifications
• Country of Origin : France
• Weight : 0.425 kg
• Range Of Product : Harmony XAC
• Product Or Component Type : pendant control station
• Device Short Name : XACD
• Contractual warranty
• Warranty : 18 months
