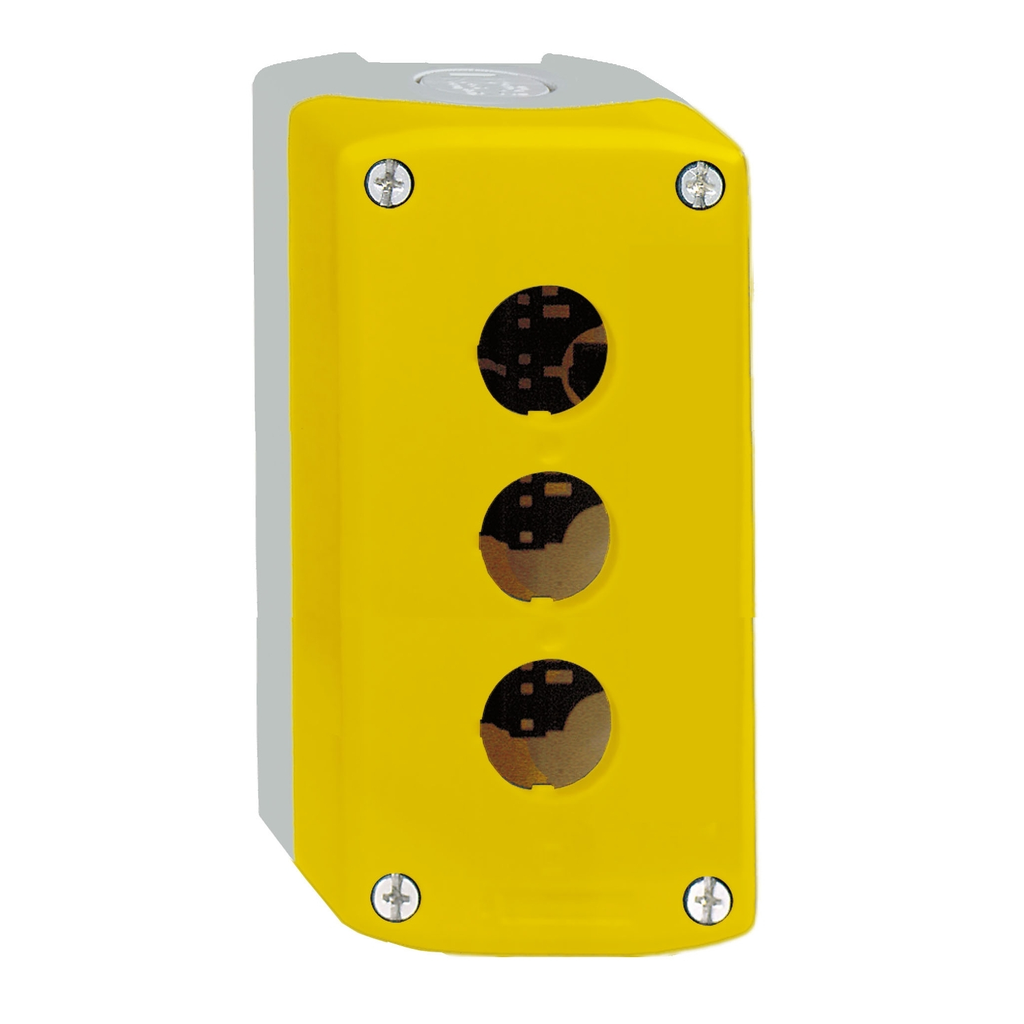

Empty control station, Harmony XALD, XALK, plastic, yellow, 3 cut-outs, unmarked, 1 knock-outs for cable entry, UL/CSA certified

yellow empty enclosure lid wit

SQDXALK03H7 XALK03H7 3606480502729
44.09 / EA
http://schema.org/OutOfStock
Mayer-DDS-Empty control station, Harmony XALD, XALK, plastic, yellow, 3 cut-outs, unmarked, 1 knock-outs for cable entry, UL/CSA certified-1
  • Cable Entry: 14-14 mm, 20 12-12 mm
This Harmony XALK empty control station has 3 cut-out for 3 push buttons / 3 functions for controlling of operation in machines. This 3 cut-out yellow empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Specifications
This Harmony XALK empty control station has 3 cut-out for 3 push buttons / 3 functions for controlling of operation in machines. This 3 cut-out yellow empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Important Information Attributes
    • Cable Entry : 1 knock-out for cable entry 14-14 mm, 1 knock-out for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    • Color Of Base Of Enclosure : light grey RAL 7035), light grey RAL 7035)
    • Color Of Cover : yellow RAL 1021), yellow RAL 1021)
    • Customizable : 0, no
    • Mounting Of Block : front mounting, rear mounting
    • Overvoltage Category : class II conforming to IEC 60536, class II conforming to IEC 60536
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-11
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2506022EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Assembly Style : for customer assembly
    • Compatibility Code : XALK
    • Device Short Name : XALK
    • Group Of Product : UL-CSA yellow
    • Main Group : 1 cut-out
    • Package Weight Lbs : 238.0 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : empty control station
    • Range Of Product : Harmony XALK
    • Returnability : No
    • Sustainable Packaging : Yes
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2506022EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529, IP67, IP69, IP69K
    • Nema Degree Of Protection : NEMA 13, NEMA 4X
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2506022EN
    • Environmental Disclosure : ENVPEP2506022EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2506022EN
  • Physical Attributes
    • Color Of Base Of Enclosure : light grey RAL 7035), light grey RAL 7035)
    • Color Of Cover : yellow RAL 1021), yellow RAL 1021)
  • General Attributes
    • Product Or Component Type : empty control station
    • Range Of Product : Harmony XALK
