SQUARE D

empty control station - XAP-A - plastic - 1 opening

EMPTY CONTROL STATION - XAP-A

SQDXAPA1101 XAPA1101 3389110313123
112.30 / EA
http://schema.org/OutOfStock
Mayer-DDS-empty control station - XAP-A - plastic - 1 opening-1

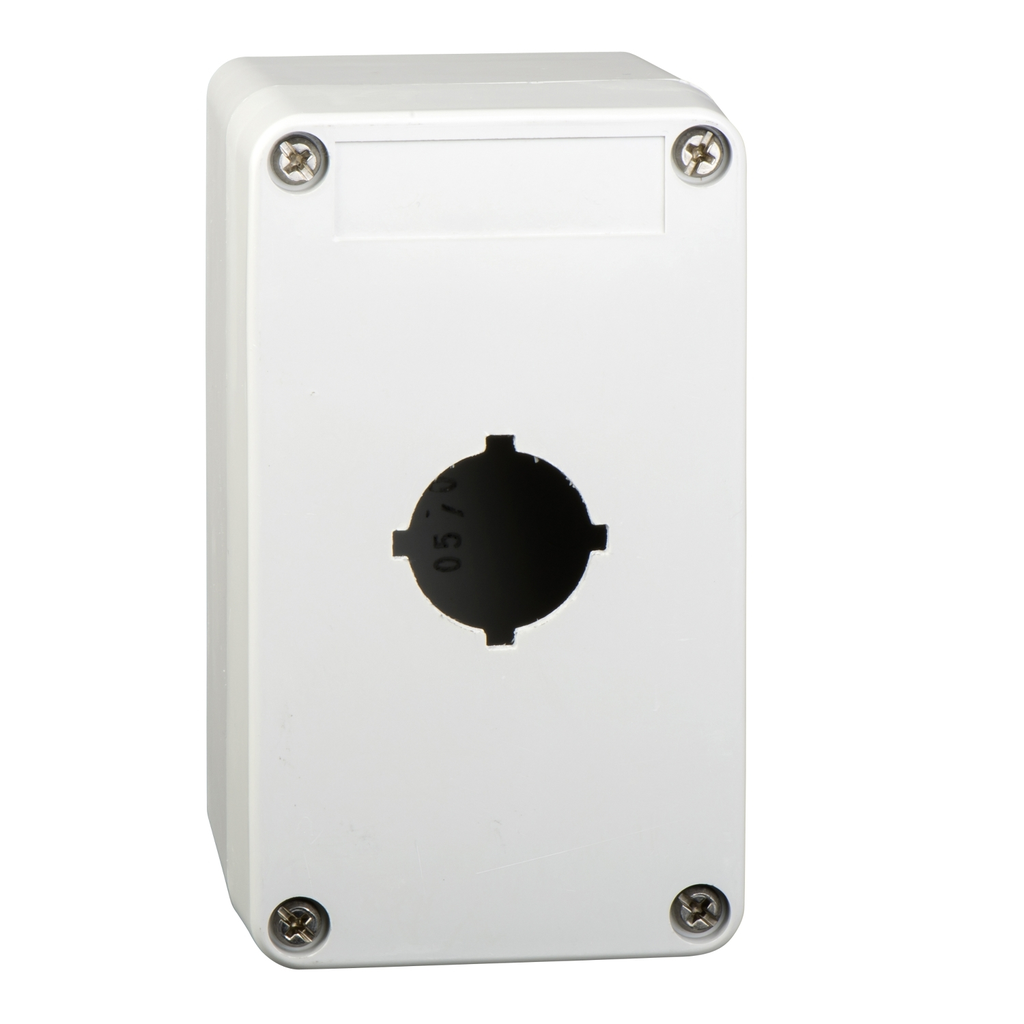

This Harmony XAPA1101 is an empty control station plastic 1 opening. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.
QTY
  • Product Description
  • Specifications
This Harmony XAPA1101 is an empty control station plastic 1 opening. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 60536 || class II NF C 20-030
    • Fire Resistance : 850 °C NF C 20-455 || 960 °C IEC 92
    • Protective Treatment : TC || TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2111017EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Number Of Vertical Rows : 1
    • Flame Retardance : M3 conforming to CSTB || VO conforming to UL 94
  • Specifications
    • Country of Origin : France
    • Product Destination : for Ø 30.5 mm control and signalling units
    • Range Of Product : Harmony XAP
    • Colour Of Base Of Enclosure : grey
    • Device Mounting : flush
    • Cable Entry : undrilled
    • Product Or Component Type : empty control station without hinges
    • Product Front Plate Size : 85 x 146 mm
    • Material : glass reinforced polyester
    • Ip Degree Of Protection : IP65 IEC 60529 || IP69 NF C 20-010 || IP69K
    • Colour Of Cover : grey
    • Number Of Cut-Out : 1 cut-out
    • Usable Depth : 83 mm
    • Resistance To Chemical Agents : high resistant to acids || high resistant to all solvents || high resistant to bases || high resistant to diesel || high resistant to mineral salts || high resistant to oils and greases || high resistant to petrol || high resistant to sea water
    • Device Short Name : XAPA
