SQUARE D

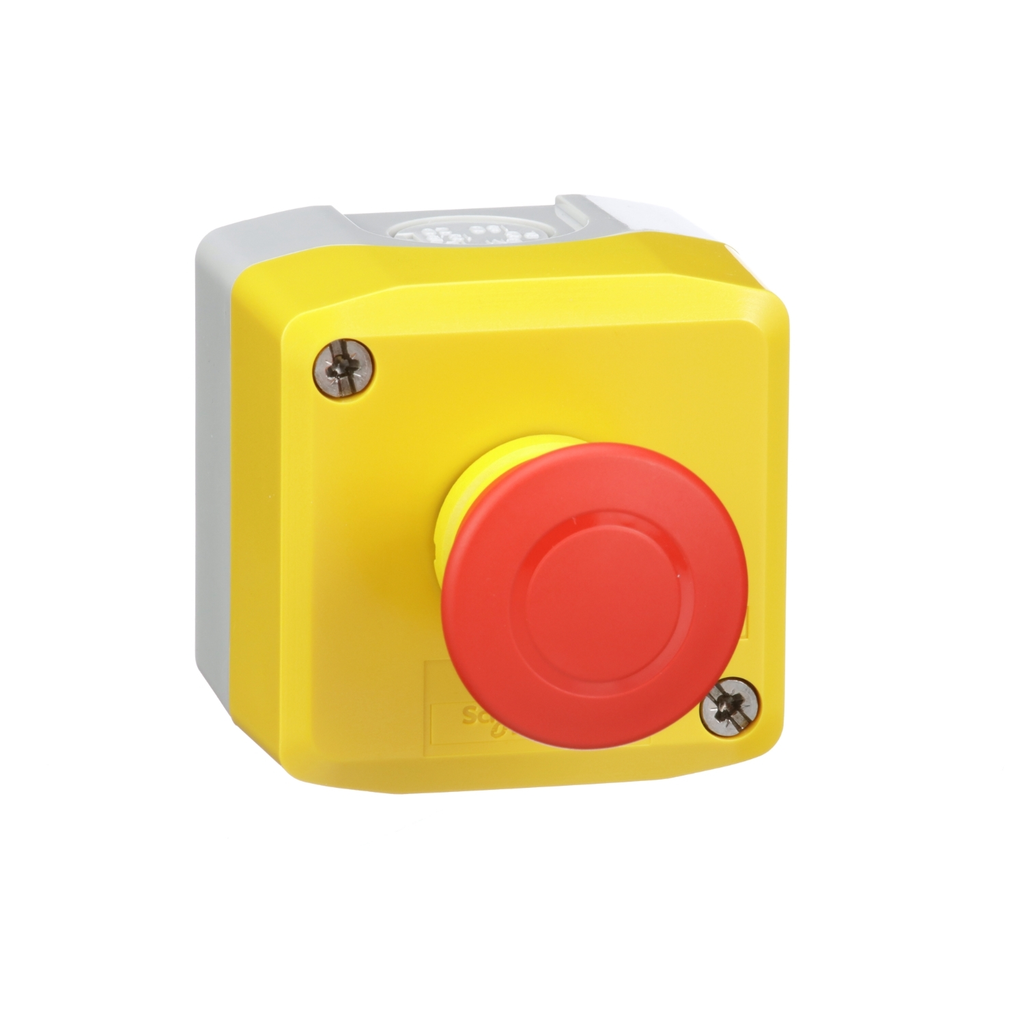

Harmony, yellow control station, red mushroom head push button, 40 mm push pull, 1 NC

PUSH BUTTON ENCLOSURE PUSH PUL

SQDXALK198H7 XALK198H7 3606480669033
59.09 / EA
http://schema.org/OutOfStock

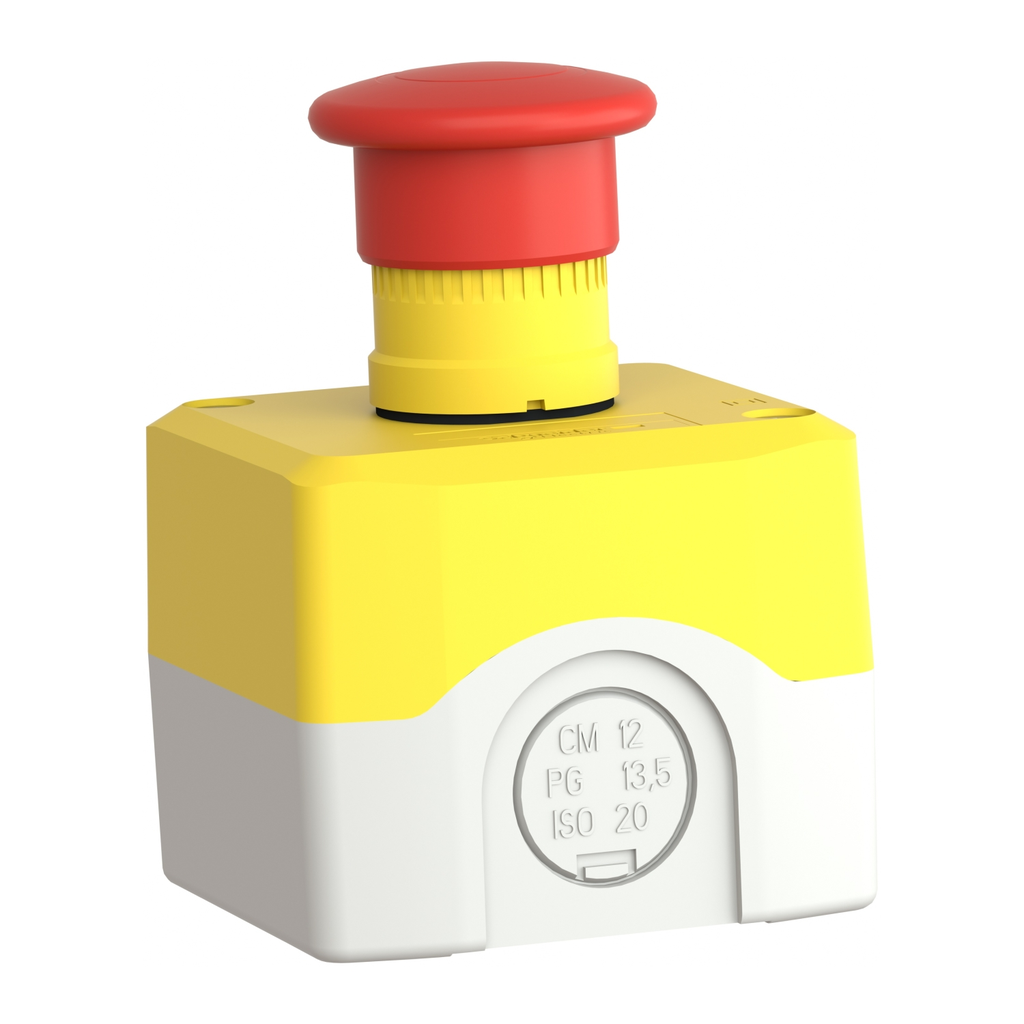

Mayer-DDS-Harmony, yellow control station, red mushroom head push button, 40 mm push pull, 1 NC-2
  • Cable Entry: 0-14 mm, 20 0-12 mm
  • Material: Polycarbonate
  • Operating Force: 50 N
  • Weight: 183 g
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
QTY
  • Product Description
  • Features
  • Specifications
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
  • Features
    • Full compatibility with the Ø 22 mm plastic push buttons, switches and pilot lights of the Harmony XB5 range
    • Complete, ready-to-install stations with 1 to 3 buttons for the most common functions
    • Modular system and simple to cable universal range
    • Possibility to add up to 3 NO or NC contact blocks per operating head
    • Polycarbonate pre-drilled control stations
    • Large set of accessories to customize your panels
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Ie Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Ui Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Cable Entry : 1 knock-out for cable entry 0-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm, tapped entry
    • Control Station Application : emergency stop function, emergency switching off function
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
    • Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    • Certificate Agency : CSA, UL Listed
    • Carbon Footprint Of The Distribution Phase A4 : 0.0236116155, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0345554397
    • Carbon Footprint Of The Installation Phase A5 : 0.0011038879, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.1910842536
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.0609464
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-08-06
    • Return Indicator : Y
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2506022EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Compatibility Code : XALK
    • Contact Operation : slow-break
    • Contacts Material : silver alloy (Ag/Ni)
    • Control Station Composition : 1 mushroom head Ø 40 mm push-button, red 1 NC unmarked
    • Dc Control Voltage : 125-600 V
    • Device Short Name : XALK
    • Housing Material : plastic
    • Material : polycarbonate
    • Mechanical Durability : 300000 cycles
    • Operating Force : 50 N
    • Operating Travel : 1.5 mm NC changing electrical state)4.3 mm total travel)
    • Operator Profile : 1 mushroom head push-button
    • Operators Description : red unmarked 1 NC
    • Overvoltage Category : class II conforming to IEC 60536
    • Positive Opening : with IEC 60947-5-1 appendix K
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : for XB5 Ø 22 mm control and signalling units
    • Product Or Component Type : complete control station
    • Protective Treatment : TH
    • Range Of Product : Harmony XALK
    • Reset : push-pull
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Software Version : EIME v5.8.1
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ac Control Voltage 50 Hz : 120-600 V
    • Ac Control Voltage 60 Hz : 120-600 V
    • Number Of Command Positions : 1
    • Number Of Contacts As Normally Closed Contact : 1
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Color Of Cover : yellowyellow RAL 1021)
    • Housing Color : yellow
    • Connections Terminals : screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    • Database Version : 2016-11
    • Data Source : extrapolated product
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8536509065
    • Ith Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Emergency Power Off Epo : no
    • Number Of Mushroom Shaped Push Buttons : 1
    • Warranty In Months : 18
    • Functional Unit Description : To provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unité (unit)
    • Reference Lifetime In Y : 20
    • Recyclability Potential In % : 18
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529, IP67, IP69, IP69K, IP66/IP67/IP69/IP69K
    • Nema Degree Of Protection : /13, NEMA 13, NEMA 4X
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 1.3113015967
    • Circularity Profile : ENVEOLI2506022EN
    • Environmental Disclosure : ENVPEP2506022EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2506022EN
    • Pep Verification Date : 2018-09-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : complete control station
    • Range Of Product : Harmony XALK
  • ETIM
    • ETIM 8 : EC000225
    • ETIM 9 : EC000225
    • ETIM 10 : EC000225
  • Specifications
    • Country of Origin : Czechia, France
    • Weight : 183 g
