SQUARE D

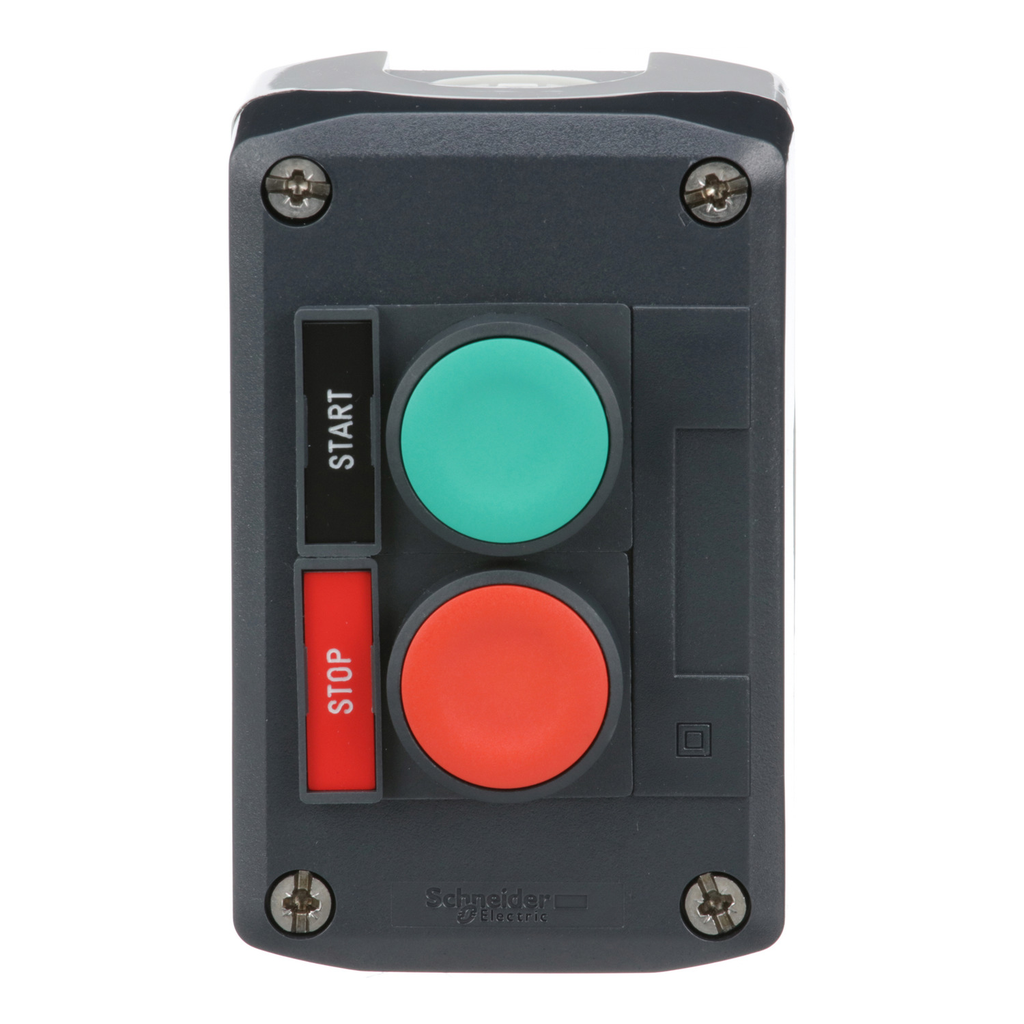

Harmony, dark grey control station, green flush and red flush push buttons, 22 mm spring return

PB Station Mom, 1 NO/1 NC, STO

SQDXALD211H29H7 XALD211H29H7 3389119414166
33.92 / EA
http://schema.org/OutOfStock

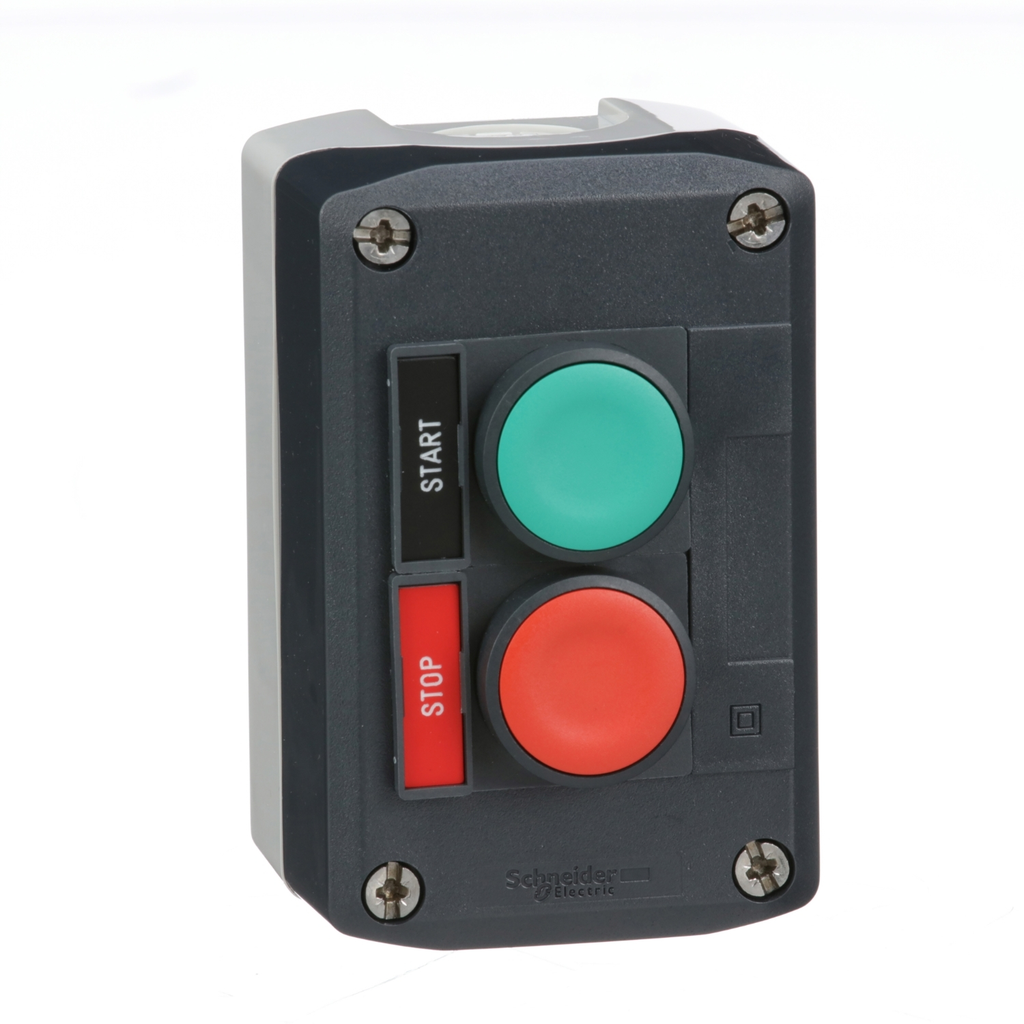

Mayer-DDS-Harmony, dark grey control station, green flush and red flush push buttons, 22 mm spring return-1
  • Cable Entry: 14-14 mm, 20 12-12 mm
  • Material: Polycarbonate
  • Operating Force: 3.5 N, 3.8 N
  • Warranty Length: 18 mth
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads
QTY
  • Features
  • Specifications
  • Features
    • Full compatibility with the Ø 22 mm plastic push buttons, switches and pilot lights of the Harmony XB5 range
    • Complete, ready-to-install stations with 1 to 3 buttons for the most common functions
    • Modular system and simple to cable universal range
    • Possibility to add up to 3 NO or NC contact blocks per operating head
    • Polycarbonate pre-drilled control stations
    • Large set of accessories to customize your panels
    • Class II conforming to IEC 60536
    • IP66;IP67;IP69;IP69K and NEMA 4 dust and damp proofing
    • Complies with IEC;UL and CSA standards
    • CE approved
  • Physical Attributes
    • Color Of Cover : dark grey, dark grey RAL 7016)
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Housing Color : grey
  • Conformance Attributes
    • Product Certifications : CSA, UL Listed
    • Standards : UL 508, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1, IEC 60947-5-5, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-1
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Cable Entry : 2 knock-outs for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    • Color Of Cover : dark grey, dark grey RAL 7016)
    • Control Station Composition : 1 flush push-button, green 1 NO START, 1 flush push-button, red 1 NC STOP
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
    • Operating Force : 3.5 N NC changing electrical state, 3.8 N NO changing electrical state
    • Operating Travel : 1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel)
    • Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ie Rated Operational Current2 : 6 A 120 V, AC-15, A600 IEC 60947-5-1, 3 A 240 V, AC-15, A600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    • Carbon Footprint Of The Distribution Phase A4 : 0.1666682487777218, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5 kg CO2 eq., 0.48820426077596657
    • Carbon Footprint Of The Installation Phase A5 : 0.0009823582472341557, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.2413050567987531
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.00917078425119527
    • Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Connections Terminals3 : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Ie Rated Operational Current5 : 6 A 120 V, AC-15, A600 IEC 60947-5-1, 3 A 240 V, AC-15, A600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-29
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2506022EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Compatibility Code : XALD
    • Contact Operation : slow-break
    • Contacts Material : silver alloy (Ag/Ni)
    • Control Station Application : Start-Stop function
    • DC Control Voltaage : 125-600 V
    • Device Short Name : XALD
    • Housing Color : grey
    • Housing Material : plastic
    • Material : polycarbonate
    • Mechanical Durability : 5000000 cycles
    • Operator Profile : 2 flush push-buttons
    • Operators Description : green ''START'' 1 NO - red ''STOP'' 1 NC
    • Overvoltage Category : class II conforming to IEC 60536
    • Package Weight Lbs : 226.796 g
    • Positive Opening : with IEC 60947-5-1 appendix K
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : for XB5 Ø 22 mm control and signalling units
    • Product Or Component Type : complete control station
    • Protective Treatment : TH
    • Range Of Product : Harmony XALD
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ith Conventional Free Air Thermal Current2 : 10 A IEC 60947-5-1
    • Ui Rated Insulation Voltage2 : 600 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage2 : 6 kV IEC 60947-1
    • Ac Control Voltage 50 Hz : 120-600 V
    • Ac Control Voltage 60 Hz : 120-600 V
    • Medium Desc : Harmony, dark grey control station, green flush and red flush push buttons, 22 mm spring return
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Emergency Power Off Epo3 : no
    • Pep Code : ENVPEP2506022EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-06-30
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Harmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; High voltage; 2020; France, FR
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Global, GLO
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Marking Location : marking on legend holder
    • Global Commercial Status : Commercialised
    • Ith Conventional Free Air Thermal Current5 : 10 A IEC 60947-5-1
    • Ui Rated Insulation Voltage5 : 600 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage5 : 6 kV IEC 60947-1
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP67, IP69, IP69K, IP66/IP67/IP69/IP69K
    • Nema Degree Of Protection : NEMA 4X/13, NEMA 13, NEMA 4X
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 1.906330708850871
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2506022EN
    • Environmental Disclosure : ENVPEP2506022EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2506022EN
    • Pep Verification Date : 2025-06-30
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : complete control station
    • Range Of Product : Harmony XALD
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
