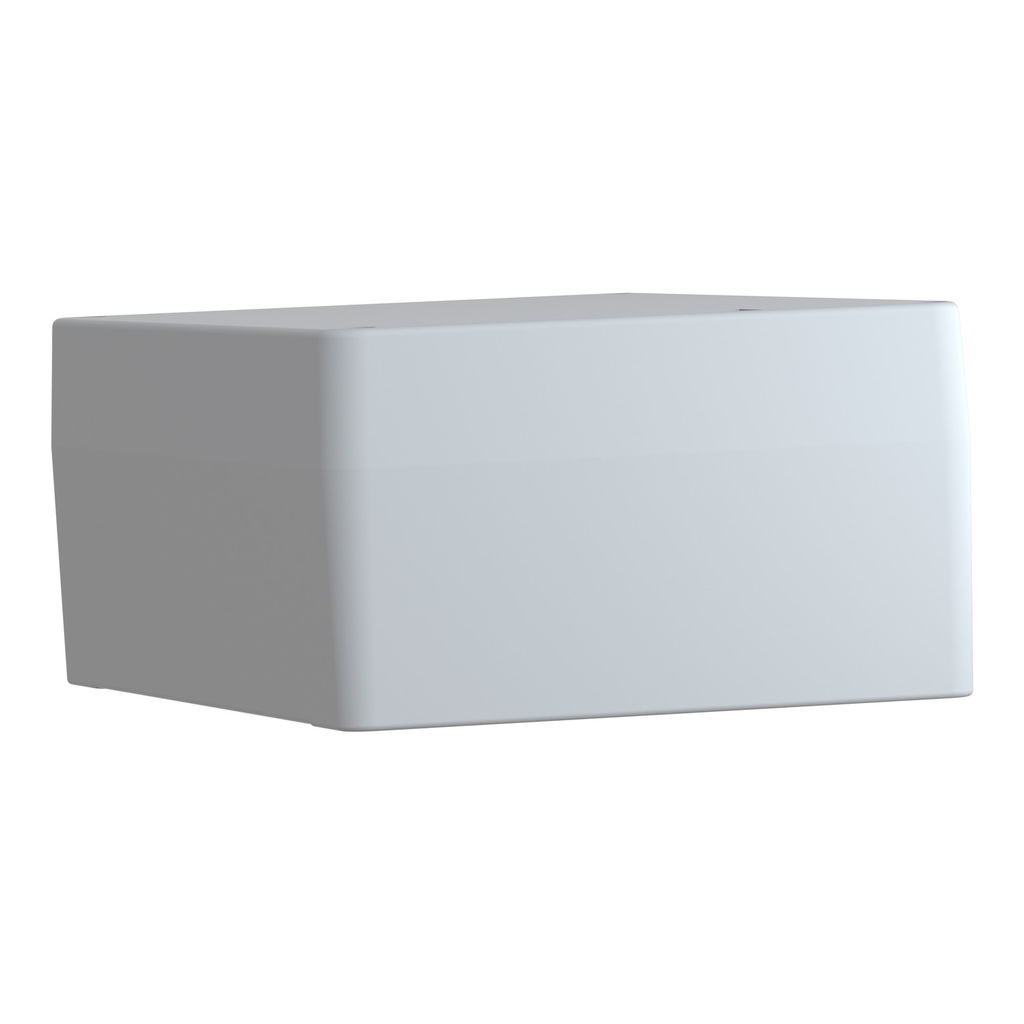

This is part of the range Harmony XAP, XB2 SL metal enclosures for Harmony XB4. This Harmony XAPA3100 is an empty plastic control station without opening and without hinges. It is impact resistant, dust resistant, water resistant and vibration resistant and designed for general purpose applciations. This insulated enclosure is highly resistant to acids, bases, sea water, mineral salts, all solvants, petrol, diesel, oils and greases. Its protection index is IP65. It is made of glass-reinforced polyester material. It weighs 0.860Kg with dimensions 151mm wide, 241mm height, 87mm deep. It is compatible with Harmony XB4 range of control and signalling units.

• Features
• Empty stations for customer assembly with 1 to 10 holes depending on the model
• Operating simplicity, flexibility, and robustness
• Full compatibility with Harmony XB4 or Harmony XB5 pushbutton ranges
• Metal offer for use in a wide range of environments
• Pre-drilled or undrilled zinc or aluminium alloy enclosures
• A large set of accessories to customize your panels
• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color Of Base Of Enclosure : grey
• Color Of Cover : grey
• Product Front Plate Size : 151 x 241 mm
• Usable Depth : 83 mm
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Fire Resistance : 850 °C NF C 20-455, 960 °C IEC 92
• Flame Retardance : M3 conforming to CSTB, VO conforming to UL 94
• Overvoltage Category : class II conforming to IEC 60536, class II conforming to NF C 20-030
• Protective Treatment : TH, TC
• Carbon Footprint Of The Distribution Phase A4 : 0.13390835579514823, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.12881078167115903
• Carbon Footprint Of The Installation Phase A5 : 0.8008366576819407, 0.8 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 5 kg CO2 eq., 4.773088948787062
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Resistance To Chemical Agents : high resistant to acids, high resistant to all solvents, high resistant to bases, high resistant to diesel, high resistant to mineral salts, high resistant to oils and greases, high resistant to petrol, high resistant to sea water
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Cable Entry : undrilled
• Color Of Base Of Enclosure : grey
• Color Of Cover : grey
• Compatibility Code : XAPA
• Device Short Name : XAPA
• Material : glass reinforced polyester
• Number Of Cut Out : undrilled
• Package Weight Lbs : 1.024 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : empty control station without hinges
• Range Of Product : Harmony XAP
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
• Medium Desc : Empty control station without hinges, Harmony XAP, XB2 SL, plastic, grey, undrilled, 151x241x87mm
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP2309042_V1
• Database Version : 2024-01
• Pep Verification Date : 2023-10-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Control station comprises a range of buttons, joysticks, and switches carefully assembled for starting and stopping the supply of electric power within a given circuit with life span of 20 years and it has dimensions of 85mm x 226mm x 87mm.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; France, FR
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP65 IEC 60529, IP69 NF C 20-010, IP69K
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 5.8366447439353095
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Environmental Disclosure : ENVPEP2309042_V1
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2309042_V1
• Pep Verification Date : 2023-10-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : empty control station without hinges
• Range Of Product : Harmony XAP
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
