Front plate with fixing screws, Harmony XAP, metal, 4 cut-outs, 22mm, 72 x 171 mm

DRILLED FRONT PLATE - XAP-E -

SQDXAPE304 XAPE304 3389110628067
108.30 / EA
http://schema.org/OutOfStock

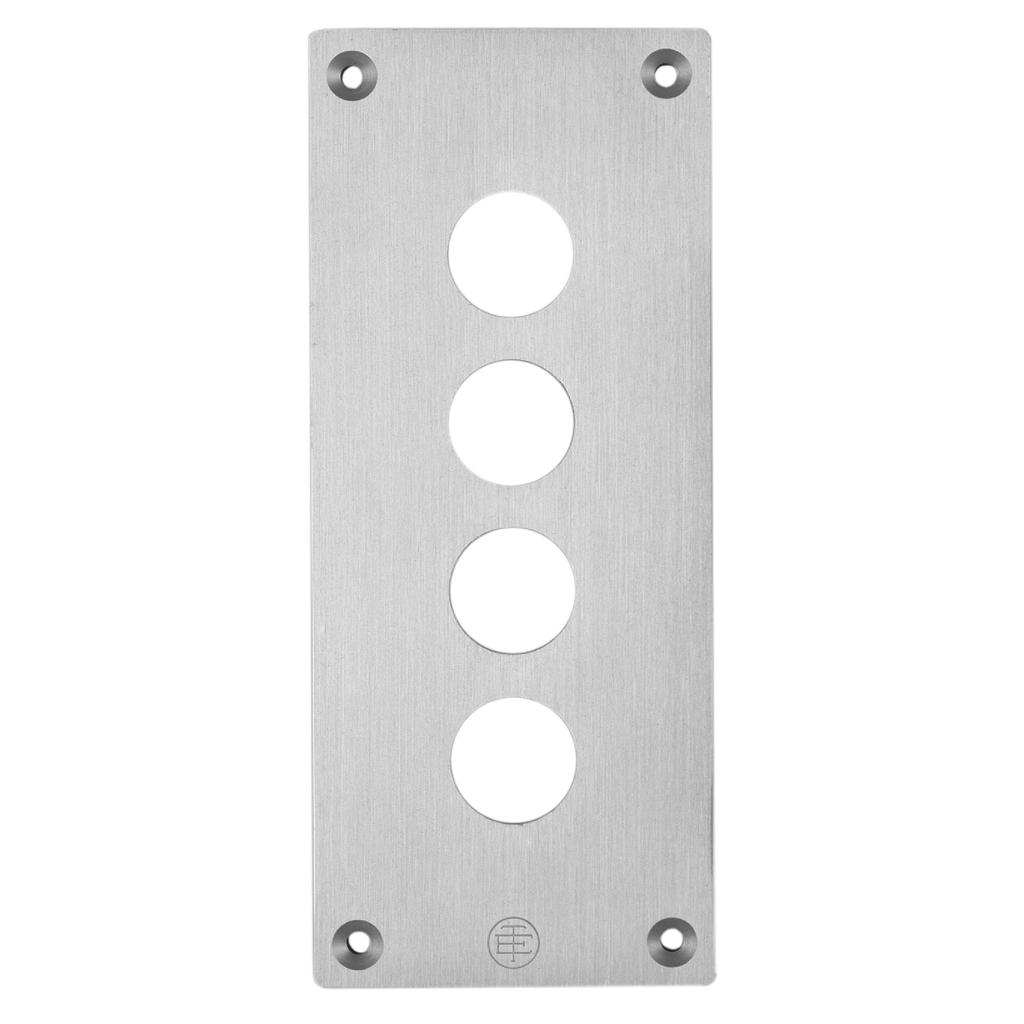

Mayer-DDS-Front plate with fixing screws, Harmony XAP, metal, 4 cut-outs, 22mm, 72 x 171 mm-1
  • Material: Aluminum
  • Warranty Length: 18 mth
This Schneider Electric Harmony XAPE enclosure plate with fixing screw has 4 cut-out for 22mm control and signaling units. It has a rectangle shape and it is made of anodized aluminum alloy. It uses flush mounting. This 4 cut-out drilled front plate with fixing screw enables protection to your control units. It uses anodized aluminum alloy material which allows it to have good resistance to chemical agents. It is compatible with Harmony 22mm control and signaling units. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP657, making it ideal for operation in harsh environments. Impact- and stain resistant enclosure for a sustained appearance despite rough usage conditions. No need to damage your machine or system with multiple 22mm hole, thus avoiding common issues like edge corrosion. Wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
QTY
  • Product Description
  • Features
  • Specifications
This Schneider Electric Harmony XAPE enclosure plate with fixing screw has 4 cut-out for 22mm control and signaling units. It has a rectangle shape and it is made of anodized aluminum alloy. It uses flush mounting. This 4 cut-out drilled front plate with fixing screw enables protection to your control units. It uses anodized aluminum alloy material which allows it to have good resistance to chemical agents. It is compatible with Harmony 22mm control and signaling units. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP657, making it ideal for operation in harsh environments. Impact- and stain resistant enclosure for a sustained appearance despite rough usage conditions. No need to damage your machine or system with multiple 22mm hole, thus avoiding common issues like edge corrosion. Wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Product Front Plate Size : 72 x 171 mm
  • Important Information Attributes
    • Overvoltage Category : class I conforming to IEC 60536, class I conforming to NF C 20-030
    • Protective Treatment : TH, TC
    • Carbon Footprint Of The Distribution Phase A4 : 0.0176761411, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0123140529
    • Carbon Footprint Of The Installation Phase A5 : 0.0004156392, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 0.9892028219
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Resistance To Chemical Agents : good resistant to acetone, good resistant to alcohols, good resistant to chloride and fluoride solvents, good resistant to diluted mineral acids, good resistant to oils and petrol, good resistant to organic acids, good resistant to salts
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Compatibility Code : XAPE
    • Device Short Name : XAPE
    • Material : anodised aluminium
    • Number Of Cut Out : 4 cut-outs
    • Package Weight Lbs : 137.0 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Destination : for Ø 22 mm control and signalling units
    • Product Or Component Type : front plate with fixing screws
    • Range Of Product : Harmony XAP
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
    • Medium Desc : Front plate with fixing screws, Harmony XAP, metal, 4 cut-outs, 22mm, 72 x 171 mm
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2111017EN
    • Database Version : 2016-11
    • Pep Verification Date : 2021-12-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The main function of XAP control station box is to provide complete water tight connection for XB4 and XB5 range products during 20 years with the following dimension is 80mm x 80mm x 51mm with EN/IEC 60529 standard.
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: France
    • Energy Model Installation A5 2 : Electricity mix; AC; 120V; US
    • Energy Model Use B6 2 : Electricity mix; AC; 120V; US
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; 120V; US
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP65 IEC 60529, IP65 NF C 20-010
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 1.019608655
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Environmental Disclosure : ENVPEP2111017EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2111017EN
    • Pep Verification Date : 2021-12-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : front plate with fixing screws
    • Range Of Product : Harmony XAP
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
