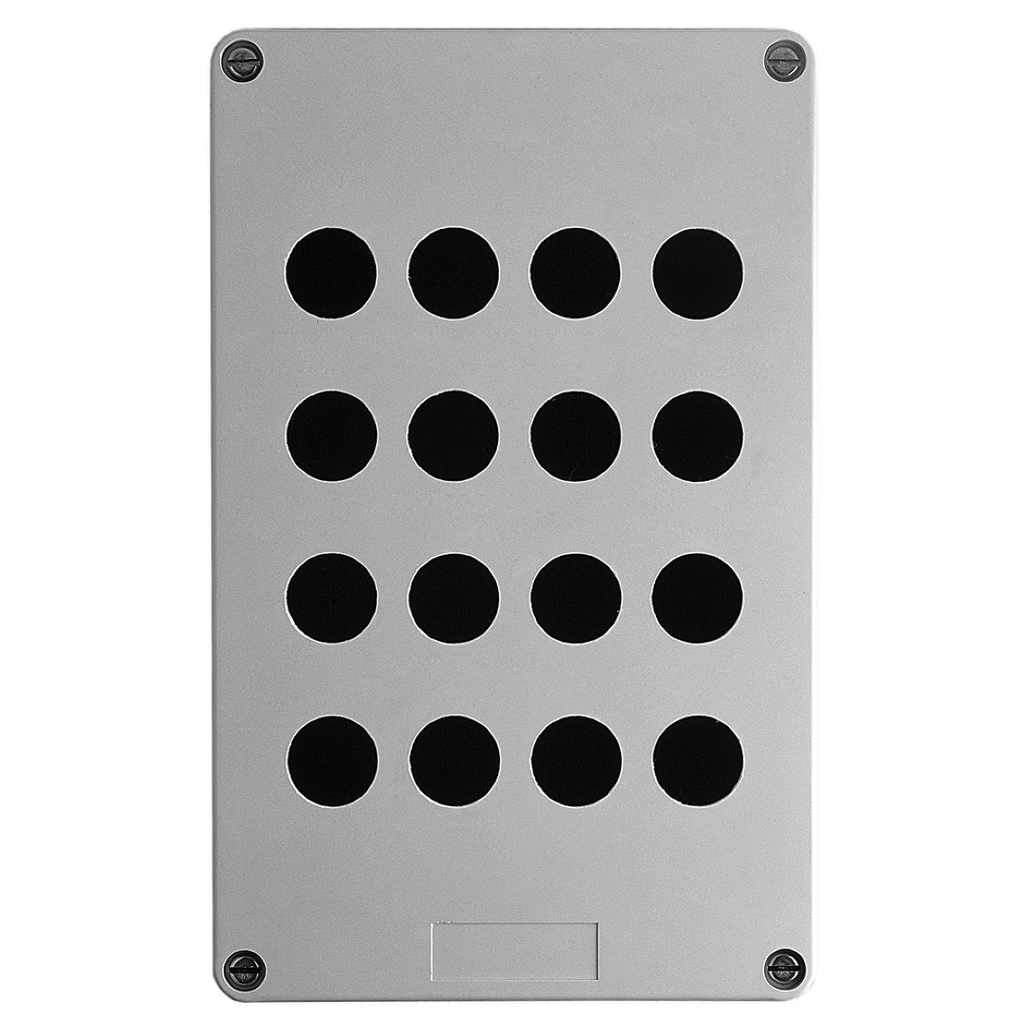

This Harmony XAPA3116 is an empty control station plastic 16 openings in 4 columns. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color Of Cover : grey
• Product Front Plate Size : 151 x 241 mm
• Usable Depth : 83 mm
• Color Of Base Of Enclosure : grey
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Cable Entry : undrilled
• Fire Resistance : 850 °C NF C 20-455, 960 °C IEC 92
• Flame Retardance : M3 conforming to CSTB, VO conforming to UL 94
• Overvoltage Category : class II conforming to IEC 60536, class II conforming to NF C 20-030
• Protective Treatment : TH, TC
• Resistance To Chemical Agents : high resistant to acids, high resistant to all solvents, high resistant to bases, high resistant to diesel, high resistant to mineral salts, high resistant to oils and greases, high resistant to petrol, high resistant to sea water
• Color Of Cover : grey
• Carbon Footprint Of The Distribution Phase A4 : 0.12920064016172506, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.12428227762803233
• Carbon Footprint Of The Installation Phase A5 : 0.7726822439353099, 0.8 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 5 kg CO2 eq., 4.605285040431267
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : XAPA
• Device Short Name : XAPA
• Material : glass reinforced polyester
• Number Of Cut Out : 16 cut-outs
• Number Of Vertical Rows : 4
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Destination : for Ø 22 mm control and signalling units
• Product Or Component Type : empty control station without hinges
• Range Of Product : Harmony XAP
• Returnability : Yes
• Software Version : v6.2.5-6
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
• Color Of Base Of Enclosure : grey
• Warranty In Months : 18
• Pep Code : ENVPEP2309042_V1
• Database Version : 2024-01
• Pep Verification Date : 2023-10-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Control station comprises a range of buttons, joysticks, and switches carefully assembled for starting and stopping the supply of electric power within a given circuit with life span of 20 years and it has dimensions of 85mm x 226mm x 87mm.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Low voltage; 2020; France, FR
• Energy Model - Installation [A5] : No energy used
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; FR
• Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
• Recyclability Potential, In % : 98
• Offer Owner Code : 190786
• Pn : 1
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Ip Degree Of Protection : IP65 IEC 60529, IP69 NF C 20-010, IP69K
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 5.631450202156334
• Environmental Disclosure : ENVPEP2309042_V1
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2309042_V1
• Pep Verification Date : 2023-10-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : empty control station without hinges
• Range Of Product : Harmony XAP
• ETIM
• ETIM 8 : EC000200
• ETIM 9 : EC000200
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, France, United States
