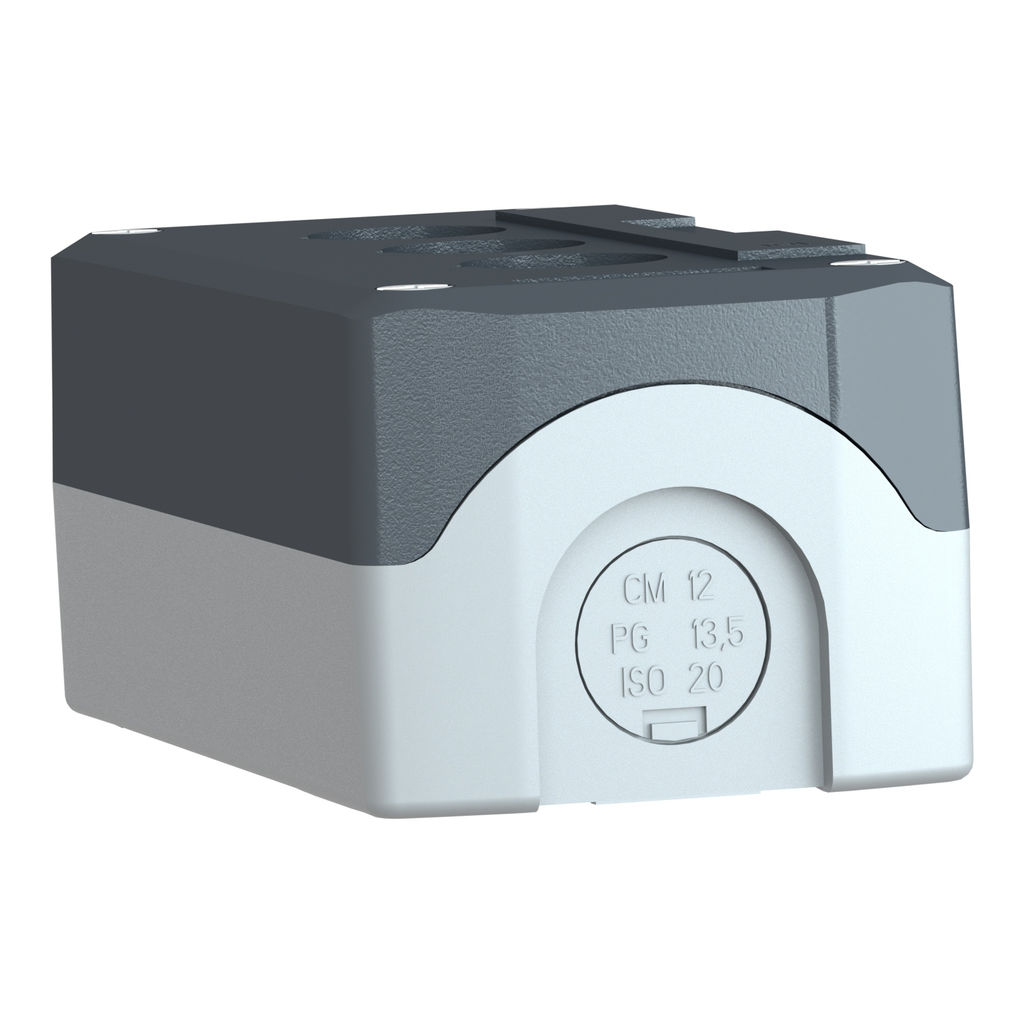

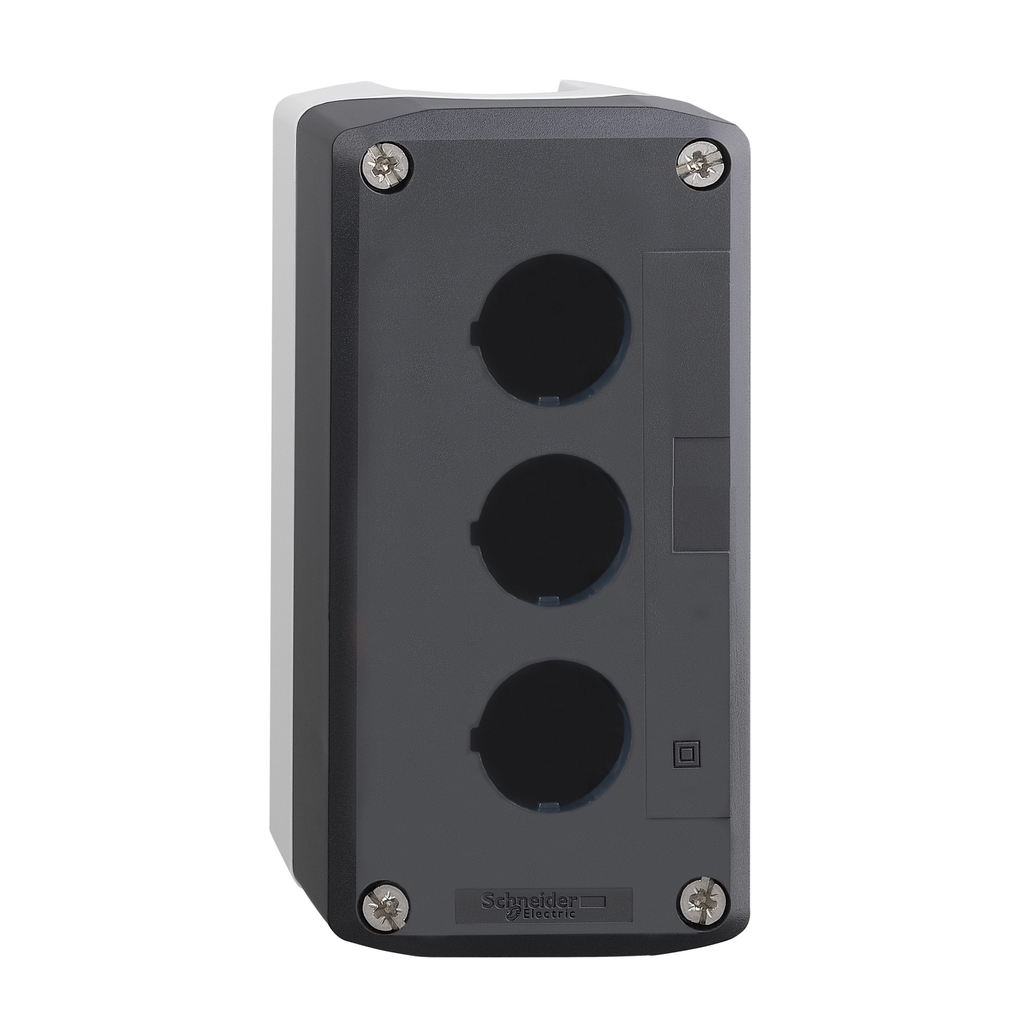

Empty control station, Harmony XALD, XALK, plastic, dark grey lid, light grey base, 3 cut out, UL CSA certified

22MM 3 HOLE PB ENCLOSURE

SQDXALD03H7 XALD03H7 3389110114942
47.42 / EA
http://schema.org/OutOfStock
Mayer-DDS-Empty control station, Harmony XALD, XALK, plastic, dark grey lid, light grey base, 3 cut out, UL CSA certified-1
  • Cable Entry: 14-14 mm, 20 12-12 mm
  • Material: Polycarbonate
  • Warranty Length: 18 mth
This Harmony XALD empty control station has 3 cut-out for 3 push buttons / 3 functions for controlling of operation in machines. This 3 cut-out dark grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony XALD empty control station has 3 cut-out for 3 push buttons / 3 functions for controlling of operation in machines. This 3 cut-out dark grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Features
    • Full compatibility with the Ø 22 mm plastic push buttons, switches and pilot lights of the Harmony XB5 range
    • Complete, ready-to-install stations with 1 to 3 buttons for the most common functions
    • Modular system and simple to cable universal range
    • Possibility to add up to 3 NO or NC contact blocks per operating head
    • Polycarbonate pre-drilled control stations
    • Large set of accessories to customize your panels
  • Physical Attributes
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Color Of Cover : dark grey RAL 7016)
  • Conformance Attributes
    • Product Certifications : UL, CSA
    • Standards : IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-1, IEC 60947-5-5, UL 508, JIS C8201-1
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Cable Entry : 2 knock-outs for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    • Customizable : 1, no
    • Electrical Composition Code : PF2, MR1, SF1, MF2, SF2, SR2, SR1, PR1, PF1, MF1
    • Mounting Of Block : rear mounting, front mounting
    • Carbon Footprint Of The Distribution Phase A4 : 0.16525580599146994, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5 kg CO2 eq., 0.4840669365321025
    • Carbon Footprint Of The Installation Phase A5 : 0.0009740331773423409, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.2307855224191027
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2506022EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Assembly Style : for customer assembly
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Color Of Cover : dark grey RAL 7016)
    • Compatibility Code : XALD
    • Device Short Name : XALD
    • GCR Bridge : XALD03CUST01
    • Group Of Product : UL-CSA grey
    • Main Group : 3 cut-outs
    • Material : polycarbonate
    • Number Of Cut Out : 3 cut-outs
    • Overvoltage Category : class II conforming to IEC 60536
    • Package Weight Lbs : 225.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : for XB5 Ø 22 mm control and signalling units
    • Product Or Component Type : empty control station
    • Protective Treatment : TH
    • Range Of Product : Harmony XALD
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
    • Medium Desc : Empty control station, Harmony XALD, XALK, plastic, dark grey lid, light grey base, 3 cut out, UL CSA certified
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2506022EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-06-30
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Harmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; High voltage; 2020; France, FR
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Global, GLO
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP67, IP69, IP69K
    • Nema Degree Of Protection : NEMA 13, NEMA 4X
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 1.8810822981200173
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2506022EN
    • Environmental Disclosure : ENVPEP2506022EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
