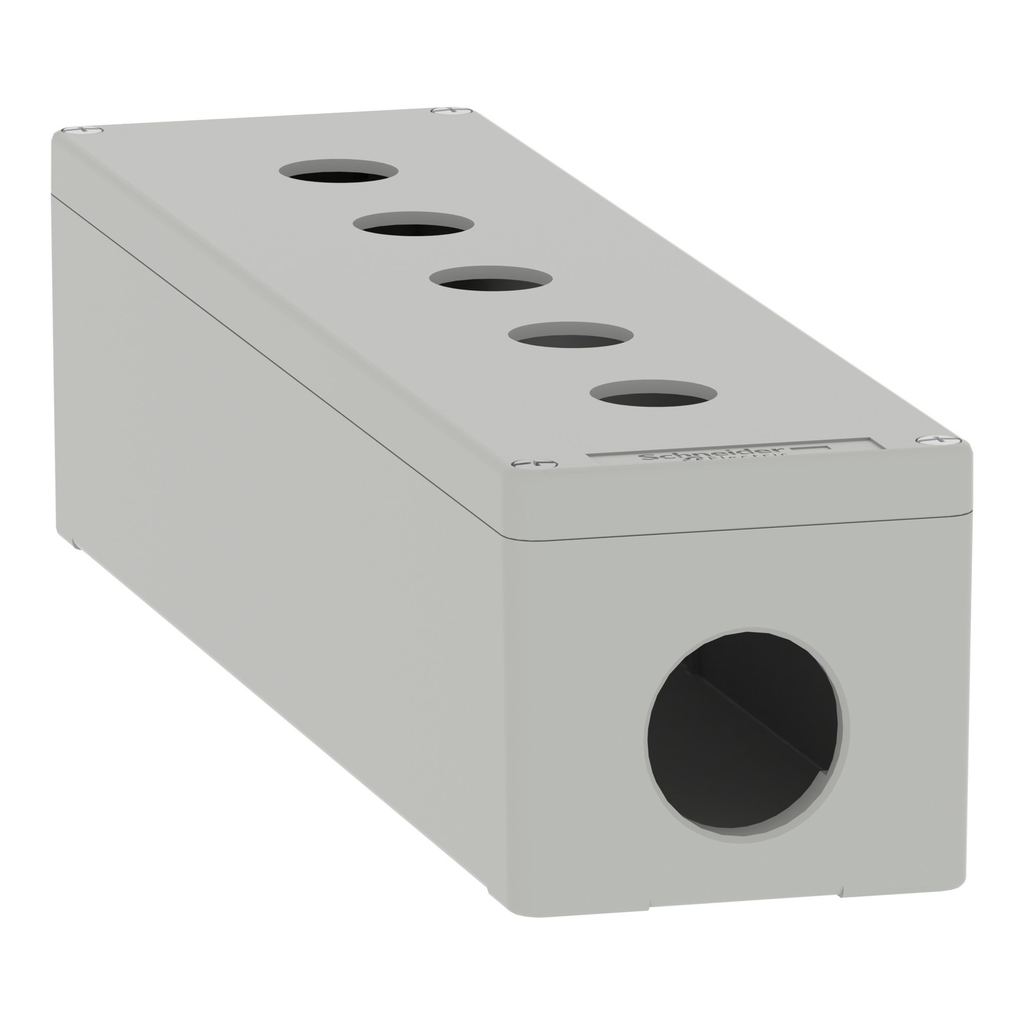

This grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP, making it ideal for operation in harsh environments It is compatible with Harmony 22mm range pushbuttons, switches and pilot lights

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Ik Degree Of Protection : IK07 IEC 62262
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Electrical Shock Protection Class : class I IEC 60536 || class I NF C 20-030
• Protective Treatment : TH
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP2111017EN
• Packaging Without Single Use Plastic : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : N/A
• Take-Back : No
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 7.1447029841
• Complementary
• Number Of Horizontal Rows : 5
• Number Of Vertical Rows : 1
• Cable Entry : cable gland || 1 x cable gland
• Net Weight : 0.830 kg
• Cad Overall Height : 310 mm
• Thread Type : 3/4 NPT
• Cut-Out Dimensions : Ø 22 mm
• Compatibility Code : XAPG
• Cad Overall Width : 85 mm
• Cad Overall Depth : 77 mm
• Specifications
• Country of Origin : France
• Width : 85 mm
• Height : 310 mm
• Weight : 0.830 kg
• Product Destination : for Ø 22 mm control and signalling units
• Range Of Product : Harmony XAP
• Colour Of Base Of Enclosure : grey RAL 7032)
• Product Or Component Type : die-cast empty control station
• Material : die cast aluminium
• Ip Degree Of Protection : IP65 IEC 60529
• Control Station Type : metal
• Colour Of Cover : grey RAL 7032)
• Number Of Cut-Out : 5 cut-outs
• Sale Per Indivisible Quantity : 1
• Resistance To Chemical Agents : special treatment can be obtained on request
• Device Short Name : XAPG
