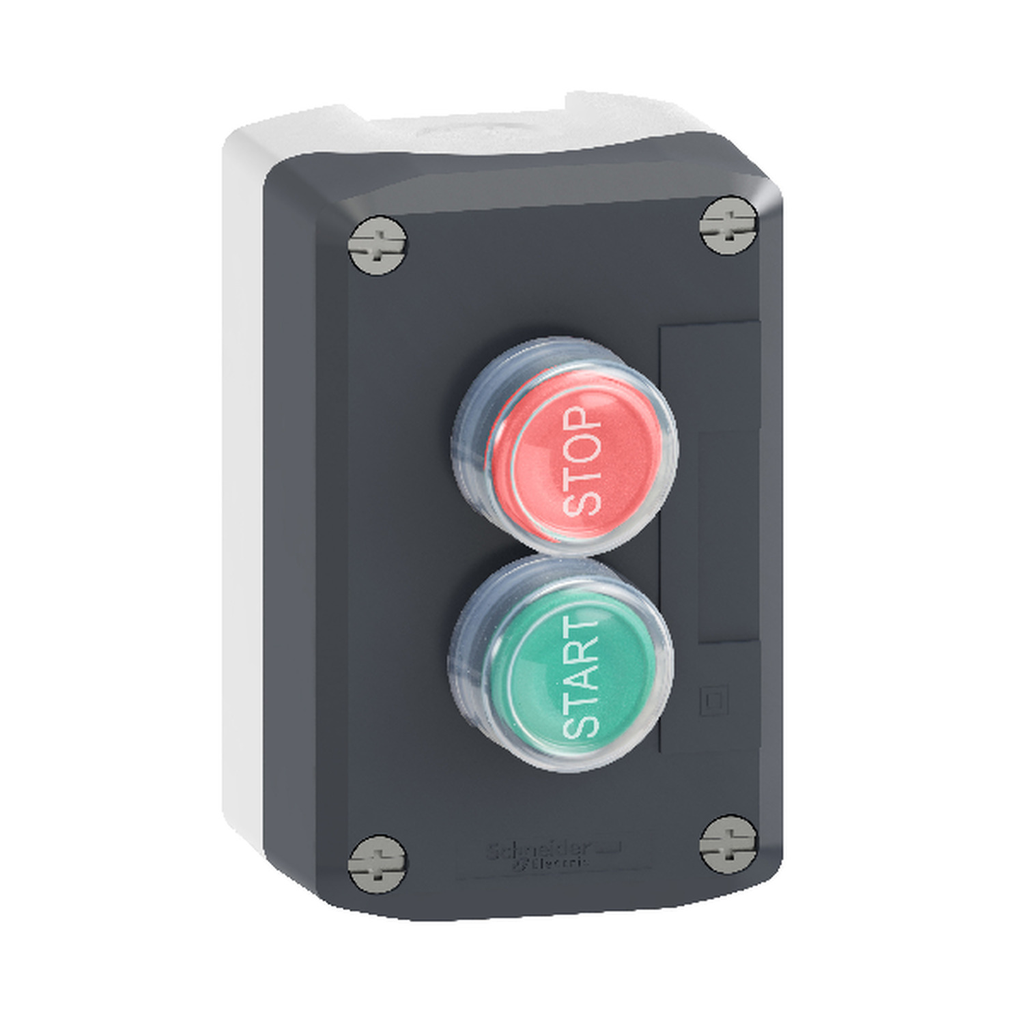

This control station with flush push-buttons is ideal to control start / stop operation in your machines Its schematic is clearly distinguishable thanks to clear colors and markings It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments

• Features
• Impact- and stain resistant enclosure for a sustained appearance despite rough usage conditions
• Eliminates the need to drill multiple 22mm holes in the machine and system
• Light gray colored base, favoring visual contrast and visibility in dark conditions
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
• Certificate Agency : CSA, UL Listed
• Carbon Footprint Of The Distribution Phase A4 : 0.12711985076266918, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.3723591819477711
• Carbon Footprint Of The Installation Phase A5 : 0.0007492562902633392, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.9 kg CO2 eq., 0.9467580941685405
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.01375617637679291
• Local Data Status : Publishable
• Local Publishable Date : 2026-08-10
• Return Indicator : Y
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2506022EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Cable Entry : 2 knock-outs for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
• Compatibility Code : XALD
• Contacts Material : silver alloy (Ag/Ni)
• Control Station Application : Start-Stop function
• Dc Control Voltage : 125-600 V
• Device Short Name : XALD
• Housing Material : plastic
• Material : polycarbonate
• Mechanical Durability : 5000000 cycles
• Product Availability : Stock - Normally stocked in distribution facility
• Product Destination : for XB5 Ø 22 mm control and signalling units
• Product Or Component Type : complete control station
• Protective Treatment : TH
• Range Of Product : Harmony XALD
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Software Version : v6.3.0.1-4
• Sustainable Packaging : Yes
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
• Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
• Ac Control Voltage 50 Hz : 120-600 V
• Ac Control Voltage 60 Hz : 120-600 V
• Number Of Command Positions : 3
• Number Of Contacts As Normally Closed Contact : 1
• Number Of Contacts As Normally Open Contact : 1
• Number Of Push Buttons : 2
• Color Of Base Of Enclosure : light grey RAL 7035)
• Color Of Cover : dark greydark grey RAL 7016)
• Housing Color : grey
• Connections Terminals : screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
• Database Version : 2024-01
• Data Source : extrapolated product
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8536509035
• Short Circuit Protection : 10 A cartridge fuse gG
• Emergency Power Off Epo : no
• Warranty In Months : 18
• Functional Unit Description : Harmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Recyclability Potential In % : 18
• Environment Attributes Main
• Ambient Air Temperature For Operation : -25-70 °C, -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Ip Degree Of Protection : IP66 IEC 60529, IP67, IP69, IP69K, IP66/IP67/IP69/IP69K
• Nema Degree Of Protection : /13, NEMA 13, NEMA 4X
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1.460742559546037
• Circularity Profile : ENVEOLI2506022EN
• Environmental Disclosure : ENVPEP2506022EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506022EN
• Pep Verification Date : 2025-06-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : complete control station
• Range Of Product : Harmony XALD
• ETIM
• ETIM 8 : EC000225
• ETIM 9 : EC000225
• ETIM 10 : EC000225
• Specifications
• Country of Origin : France
• Weight : 180 g
