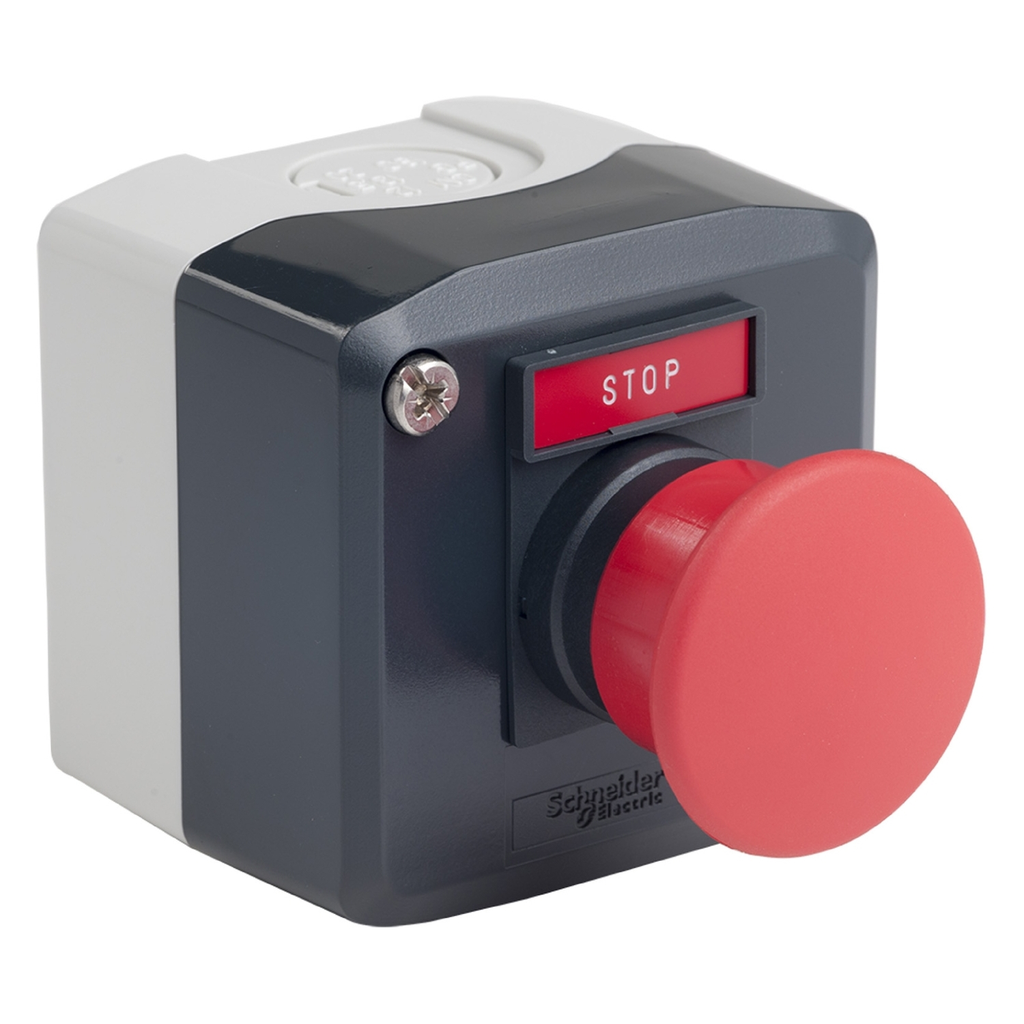

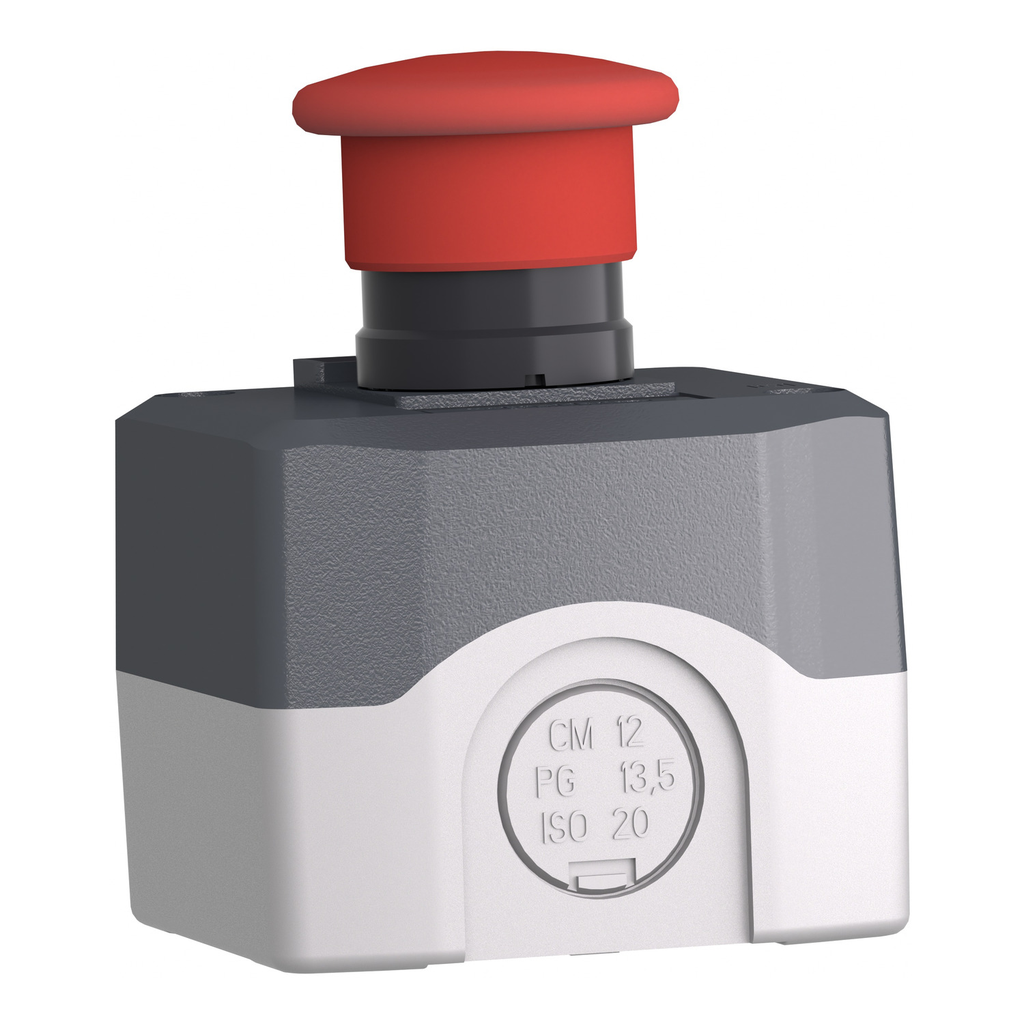

This Harmony XALD dark grey control station for start/stop function is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with mushroom head push button is ideal to control start / stop operation in your machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

• Environment
• Product Certifications : CSA || UL Listed
• Ik Degree Of Protection : IK03 conforming to IEC 62262
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : JIS C8201-5-1 || IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-1
• Shock Resistance : 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
• Ip Degree Of Protection : IP66 IEC 60529 || IP69 || IP69K
• Ambient Air Temperature For Storage : -40-70 °C
• Overvoltage Category : class II conforming to IEC 60536
• Nema Degree Of Protection : NEMA 13 || NEMA 4X
• Protective Treatment : TH
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP1806010EN
• Packaging Without Single Use Plastic : Yes
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI1806010EN
• Take-Back : No
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1.1564164079
• Complementary
• Operating Force : 3.5 N NC changing electrical state
• Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Operating Travel : 1.5 mm NC changing electrical state) || 4.3 mm total travel)
• Contacts Material : silver alloy (Ag/Ni)
• Positive Opening : with IEC 60947-5-1 appendix K
• [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Cable Entry : 1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
• Net Weight : 0.182 kg
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
• [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
• [Ie] Rated Operational Current : 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
• Mechanical Durability : 5000000 cycles
• Electrical Reliability : λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
• Specifications
• Country of Origin : Czechia
• Weight : 0.182 kg
• Control Station Application : stop function
• Product Destination : for XB5 Ø 22 mm control and signalling units
• Range Of Product : Harmony XALD
• Colour Of Base Of Enclosure : light grey RAL 7035)
• Control Station Composition : 1 mushroom head Ø 40 mm push-button, red 1 NC STOP
• Operators Description : red ''STOP'' 1 NC
• Product Or Component Type : complete control station
• Material : polycarbonate
• Marking Location : marking on legend holder
• Operator Profile : 1 mushroom head push-button
• Colour Of Cover : dark grey RAL 7016)
• Contact Operation : slow-break
• Device Short Name : XALD
