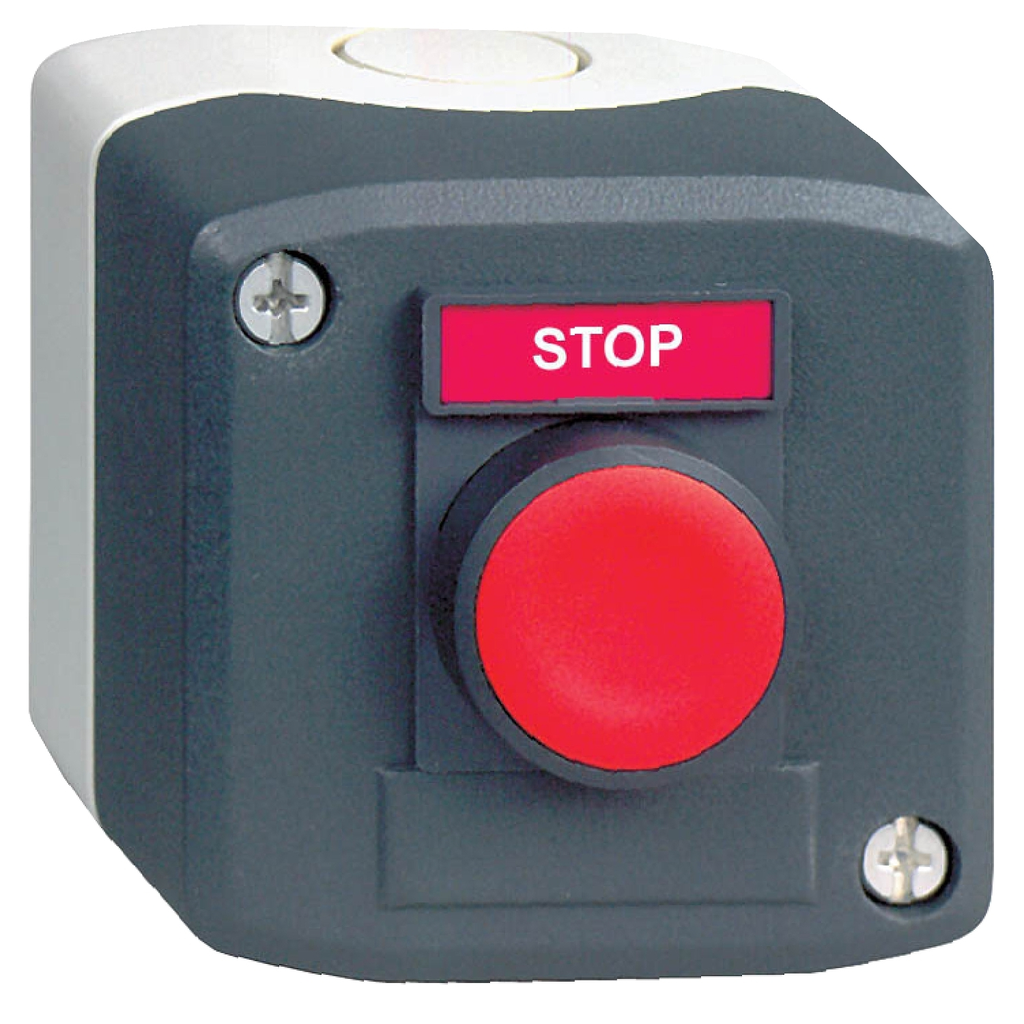

Complete control station, Harmony XALD, dark grey, 1 red flush pushbutton, 22mm, spring return, 1NO, marked STOP

PUSHBUTTON ENCLOSURE START & S

SQDXALD111H29H7 XALD111H29H7 3606480502699
70.65 / EA
http://schema.org/OutOfStock
Mayer-DDS-Complete control station, Harmony XALD, dark grey, 1 red flush pushbutton, 22mm, spring return, 1NO, marked STOP-1
  • Cable Entry: 14-14 mm, 20 12-12 mm
  • Material: Polycarbonate
  • Operating Force: 3.5 N
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Physical Attributes
    • Color Of Cover : dark grey, dark grey RAL 7016)
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Housing Color : grey
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Cable Entry : 1 knock-out for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Electrical Reliability : λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
    • Operating Travel : 1.5 mm NC changing electrical state), 4.3 mm total travel)
    • Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Color Of Cover : dark grey, dark grey RAL 7016)
    • Certificate Agency : CSA, UL Listed
    • [Ie] Rated Operational Current : 6 A 120 V, AC-15, A600 IEC 60947-5-1, 3 A 240 V, AC-15, A600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Carbon Footprint Of The Distribution Phase [A4] : 0.10571216167284256, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.3 kg CO2 eq., 0.30965182704564453
    • Carbon Footprint Of The Installation Phase [A5] : 0.000623077368448047, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.8 kg CO2 eq., 0.7873187713433685
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0 kg CO2 eq., 0.004585392125597635
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2506022EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Compatibility Code : XALD
    • Contact Operation : slow-break
    • Contacts Material : silver alloy (Ag/Ni)
    • Control Station Application : stop function
    • Control Station Composition : 1 flush push-button, red 1 NC STOP
    • Dc Control Voltage : 125-600 V
    • Device Short Name : XALD
    • Housing Material : plastic
    • Marking Location : marking on legend holder
    • Material : polycarbonate
    • Mechanical Durability : 5000000 cycles
    • Operating Force : 3.5 N NC changing electrical state
    • Operator Profile : 1 flush push-button
    • Operators Description : red ''STOP'' 1 NC
    • Overvoltage Category : class II conforming to IEC 60536
    • Positive Opening : with IEC 60947-5-1 appendix K
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : for XB5 Ø 22 mm control and signalling units
    • Product Or Component Type : complete control station
    • Protective Treatment : TH
    • Range Of Product : Harmony XALD
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Software Version : v6.3.0.1-4
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ac Control Voltage 50 Hz : 120-600 V
    • Ac Control Voltage 60 Hz : 120-600 V
    • Number Of Command Positions : 1
    • Number Of Contacts As Normally Closed Contact : 1
    • Number Of Push Buttons : 1
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Housing Color : grey
    • Pep Code : ENVPEP2506022EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-06-30
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : Harmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime, In Y : 20
    • Energy Model - Manufacturing [A1-a3] : Electricity Mix; High voltage; 2020; France, FR
    • Energy Model - Installation [A5] : No energy used
    • Energy Model - Use [B6] : Electricity Mix; Low voltage; 2020; Global, GLO
    • Energy Model - End Of Life [C1-c4] : Global, European and French datasets are used.
    • Recyclability Potential, In % : 18
    • [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
    • Short-circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Emergency Power Off (Epo) : no
    • Nbr. Of Units In Pkg. : 1
    • Package Weight(Lbs) : 149.685 g
    • Take-back : No
    • Warranty (In Months) : 18
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529, IP67, IP69, IP69K, IP66/IP67/IP69/IP69K
    • Nema Degree Of Protection : NEMA 4X/13, NEMA 13, NEMA 4X
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 1.2078912295559012
    • Circularity Profile : ENVEOLI2506022EN
    • Environmental Disclosure : ENVPEP2506022EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2506022EN
    • Pep Verification Date : 2025-06-30
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : complete control station
    • Range Of Product : Harmony XALD
  • ETIM
    • ETIM 8 : EC000225
    • ETIM 9 : EC000225
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France, United States
