SQUARE D

22mm push button, Harmony XALD, complete control station, 3 push button, 6A, 600V, NEMA 4X, 13

PUSH BUTTON ENCLOSURE 600VAC 1

SQDXALD321S1H7 XALD321S1H7 3389119044653
126.76 / EA
http://schema.org/OutOfStock

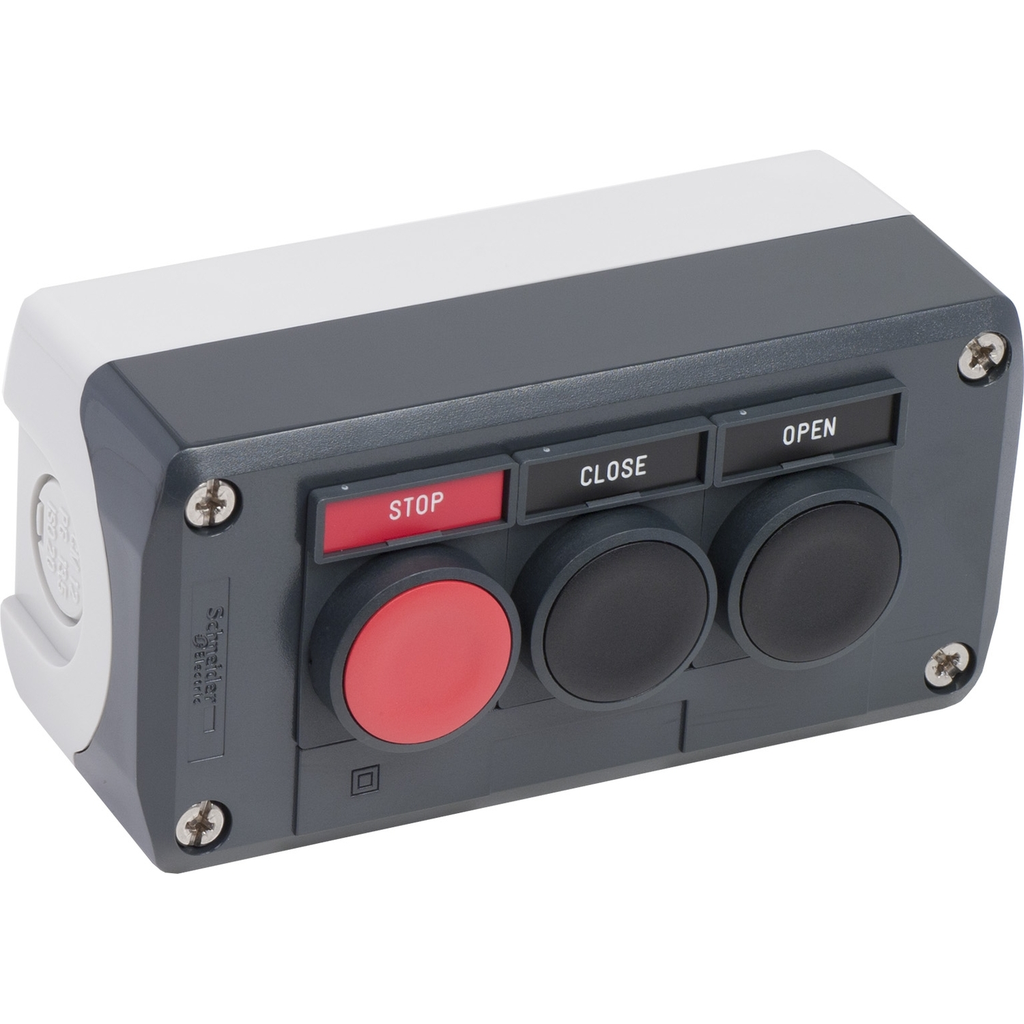

Mayer-DDS-22mm push button, Harmony XALD, complete control station, 3 push button, 6A, 600V, NEMA 4X, 13-1
  • Cable Entry: 14-14 mm, 20 12-12 mm
  • Material: Polycarbonate
  • Warranty Length: 18 mth
XAL control stations are suitable for most common functions. This control station has three 22mm push buttons. One flush black push button operator has a normally open contact and is marked UP. One flush black push button operator has a normally open contact and is marked DOWN. One flush red push button has a normally closed contact and is marked STOP. Contacts have UL A600, UL Q600, IEC AC15 and IEC DC13 contact ratings. Enclosure has knockouts for wire entry. Control Station is 5.35 inches tall, 2.68 inches wide and 2.44 inches deep. The relay weighs 0.66 lbs. Control station is UL Listed and CSA certified. "This product meets EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-5 and EN/IEC 60947-5-1 standards." "This range of control stations combines simplicity of setup with compact size and flexibility. It is ideal for applications requiring good resistance to chemical agents." "Plastic XALD/XALK control stations and enclosures for Ø 22mm plastic pushbuttons (XB5/ZB5 range)."
QTY
  • Product Description
  • Features
  • Specifications
XAL control stations are suitable for most common functions. This control station has three 22mm push buttons. One flush black push button operator has a normally open contact and is marked UP. One flush black push button operator has a normally open contact and is marked DOWN. One flush red push button has a normally closed contact and is marked STOP. Contacts have UL A600, UL Q600, IEC AC15 and IEC DC13 contact ratings. Enclosure has knockouts for wire entry. Control Station is 5.35 inches tall, 2.68 inches wide and 2.44 inches deep. The relay weighs 0.66 lbs. Control station is UL Listed and CSA certified. "This product meets EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-5 and EN/IEC 60947-5-1 standards." "This range of control stations combines simplicity of setup with compact size and flexibility. It is ideal for applications requiring good resistance to chemical agents." "Plastic XALD/XALK control stations and enclosures for Ø 22mm plastic pushbuttons (XB5/ZB5 range)."
  • Features
    • Low-load electrical contact
    • Fully-assembled
    • Double electrical insulation
    • Wide range of operating temperature from -40°C to 70°C
  • Physical Attributes
    • Color Of Cover : dark grey, dark grey RAL 7016)
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Housing Color : grey
  • Conformance Attributes
    • Standards : IEC 60947-5-4, IEC 60947-1, IEC 60947-5-5, IEC 60947-5-1
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Cable Entry : 2 knock-outs for cable entry 14-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    • Color Of Cover : dark grey, dark grey RAL 7016)
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Electrical Reliability : λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
    • Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ie Rated Operational Current2 : 6 A 120 V, AC-15, A600 IEC 60947-5-1, 3 A 240 V, AC-15, A600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    • Carbon Footprint Of The Distribution Phase A4 : 0.21257263933090792, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.6 kg CO2 eq., 0.6226672987015506
    • Carbon Footprint Of The Installation Phase A5 : 0.0012529230187181394, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.5831899241373928
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Connections Terminals3 : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Ie Rated Operational Current5 : 6 A 120 V, AC-15, A600 IEC 60947-5-1, 3 A 240 V, AC-15, A600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2506022EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Compatibility Code : XALD
    • Contacts Material : silver alloy (Ag/Ni)
    • Control Station Application : three functions
    • Control Station Composition : 1 flush push-button
    • DC Control Voltaage : 125-600 V
    • Device Short Name : XALD
    • Electrical Shock Protection Class : class II conforming to IEC 60536
    • Housing Color : grey
    • Housing Material : plastic
    • Material : polycarbonate
    • Mechanical Durability : 5000000 cycles
    • Operator Profile : 3 flush push-buttons
    • Package Weight Lbs : 0.301 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : for XB5 Ø 22 mm control and signalling units
    • Product Or Component Type : complete control station
    • Protective Treatment : TH
    • Range Of Product : Harmony XALD
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ith Conventional Free Air Thermal Current2 : 10 A IEC 60947-5-1
    • Ui Rated Insulation Voltage2 : 600 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage2 : 6 kV IEC 60947-1
    • Ac Control Voltage 50 Hz : 120-600 V
    • Ac Control Voltage 60 Hz : 120-600 V
    • Medium Desc : 22mm push button, Harmony XALD, complete control station, 3 push button, 6A, 600V, NEMA 4X, 13
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Emergency Power Off Epo3 : no
    • Pep Code : ENVPEP2506022EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-06-30
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Harmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; High voltage; 2020; France, FR
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Global, GLO
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Global Commercial Status : Commercialised
    • Ith Conventional Free Air Thermal Current5 : 10 A IEC 60947-5-1
    • Ui Rated Insulation Voltage5 : 600 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage5 : 6 kV IEC 60947-1
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP69, IP69K, IP67, IP66/IP67/IP69/IP69K
    • Nema Degree Of Protection : NEMA 4X/13, NEMA 13, NEMA 4X
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 2.4196827851885696
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2506022EN
    • Environmental Disclosure : ENVPEP2506022EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2506022EN
    • Pep Verification Date : 2025-06-30
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : complete control station
    • Range Of Product : Harmony XALD
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
