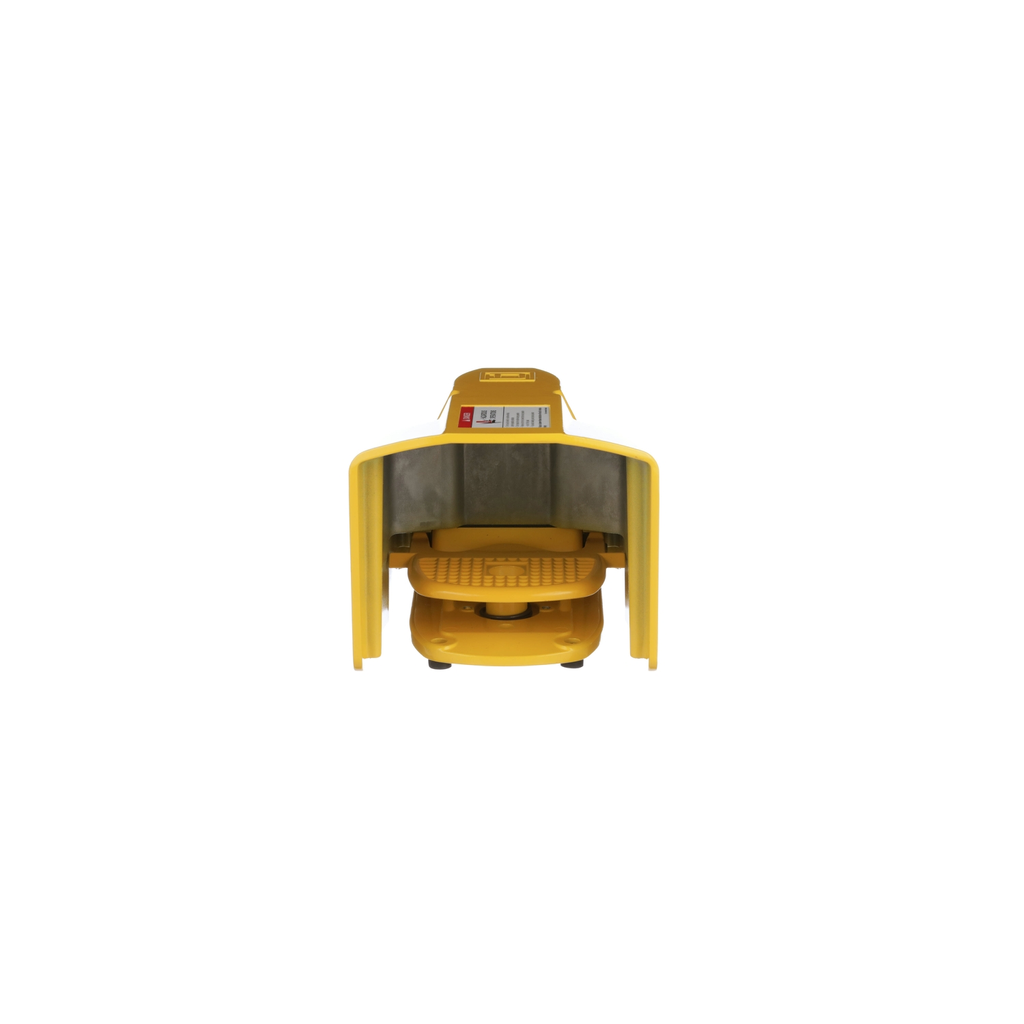

Foot Switch, Harmony 9002AW, industrial, oversized pedal and side shields, SPDT contact, NEMA 2, 4, 13, 5A resistive at 600V AC

FOOT SWITCH

SQD9002AW132 9002AW132 785901045267
734.23 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Foot Switch, Harmony 9002AW, industrial, oversized pedal and side shields, SPDT contact, NEMA 2, 4, 13, 5A resistive at 600V AC-2
  • Certifications: CSA, UL Listed
  • Depth: 217 mm
  • Height: 159 mm
  • Warranty Length: 18 mth
  • Width: 163 mm
9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has oversized pedal and side shields. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified. Foot switch is UL listed and CSA certified.
QTY
  • Product Description
  • Specifications
9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has oversized pedal and side shields. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified. Foot switch is UL listed and CSA certified.
  • Specifications
    • Product Certifications : UL Listed || CSA
    • Height : 159 mm
    • Range Of Product : 9002AW
    • Type Of Operator : spring return
    • Product Or Component Type : foot switch
    • Nema Degree Of Protection : NEMA 2/4/13
    • Contact Operation : 1 step
    • Switch Function : SPDT
    • Cable Entry : 0.75 inch NPT conduit entrance
    • Width : 163 mm
    • Depth : 217 mm
    • Device Composition : oversized pedal shield || side shield
    • [Ue] Rated Operational Voltage : 600 V AC/DC
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121009EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Contractual warranty
    • Warranty : 18 months
