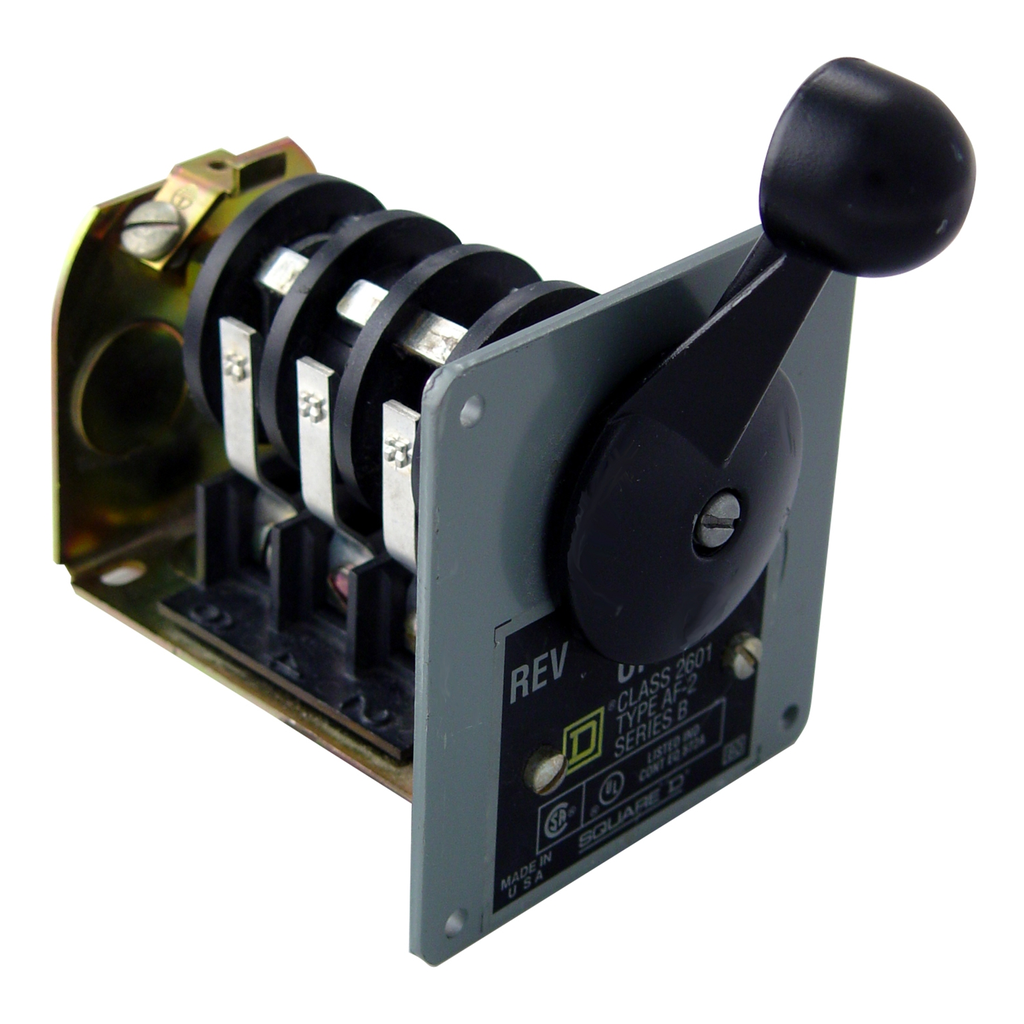

Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 13 flush

DRUM SWITCH 600VAC 2HP A +OPTI

SQD2601AF2 2601AF2 785901015024
173.25 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 13 flush-1
  • Depth: 5.58 in
  • Warranty Length: 18 mth
2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. The maximum operational voltage is 600 VAC and 250 VDC. This 3 pole drum switch is rated for 1.5 HP at 115 VAC, 2 HP at 230 VAC, single phase, 2 HP at 230 VAC, 2 HP at 575 VAC, three phase, and 0.25 HP up to 600 VDC. The binder head screw terminals will accept 18 to 10 AWG copper wire. This switch has no pilot light indicator. A variety of enclosures are available. This device has a NEMA 13 oiltight flush mounting enclosure. This drum switch is 5.20 inches tall, 3.38 inches wide and 5.58 inches deep. Drum switches are UL listed and CSA certified for global applications.
QTY
  • Product Description
  • Features
  • Specifications
2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. The maximum operational voltage is 600 VAC and 250 VDC. This 3 pole drum switch is rated for 1.5 HP at 115 VAC, 2 HP at 230 VAC, single phase, 2 HP at 230 VAC, 2 HP at 575 VAC, three phase, and 0.25 HP up to 600 VDC. The binder head screw terminals will accept 18 to 10 AWG copper wire. This switch has no pilot light indicator. A variety of enclosures are available. This device has a NEMA 13 oiltight flush mounting enclosure. This drum switch is 5.20 inches tall, 3.38 inches wide and 5.58 inches deep. Drum switches are UL listed and CSA certified for global applications.
  • Features
    • 600VAC and 250VDC maximum
    • Designed for motor rated up to 7.5hp
    • Contacts are not replaceable
    • Wide range of enclosures available
    • UL and CSA
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Listed, CSA
  • Complementary Attributes
    • Maximum Horse Power Rating : 2-2 hp 230 V AC, 3 phase, 0.25-0.25 hp 230 V DC, 1.5-1.5 hp 115 V AC, 1 phase, 2-2 hp 230 V AC, 1 phase, 2-2 hp 200 V AC, 3 phase, 2-2 hp 460 V AC, 3 phase, 2-2 hp 575 V AC, 3 phase, 0.25-0.25 hp 115 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Ue Rated Operational Voltage2 : 600 V AC, 250 V DC
    • Carbon Footprint Of The Distribution Phase A4 : 0.2046199768949202, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.105375597262945
    • Carbon Footprint Of The Installation Phase A5 : 0.08471504124496838, 0.1 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 4 kg CO2 eq., 4.149464097954219
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 3 kg CO2 eq., 3.157900745955735
    • Ue Rated Operational Voltage5 : 600 V AC, 250 V DC
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Will not be Compliant
    • ROHS EUR Full Compliance Status : Not compliant
    • ROHS EUR Full Compliance Status Id : NOT_COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Electrical Connection : screw-clamp terminals
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 708.058 g
    • Poles Description : 3P
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Reversing Drum Switch
    • Range Of Product : A
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 9 kg CO2 eq.
    • Medium Desc : Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 13 flush
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2507018EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-09-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Recycled Metal Content At Cr Level : 0 %
    • Carbon Footprint : 8.702075459312788
    • Environmental Disclosure : ENVPEP2507018EN
    • EU ROHS Directive : Not compliant
    • Nema Degree Of Protection : NEMA 13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2507018EN
    • Pep Verification Date : 2025-09-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : Reversing Drum Switch
    • Range Of Product : A
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 5.58 in
