Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,4 screws fixing,for V3/V4

HANDLE ASSEMBLY

SQDKCF2PZ KCF2PZ 3389110504316
47.80 / EA
http://schema.org/OutOfStock

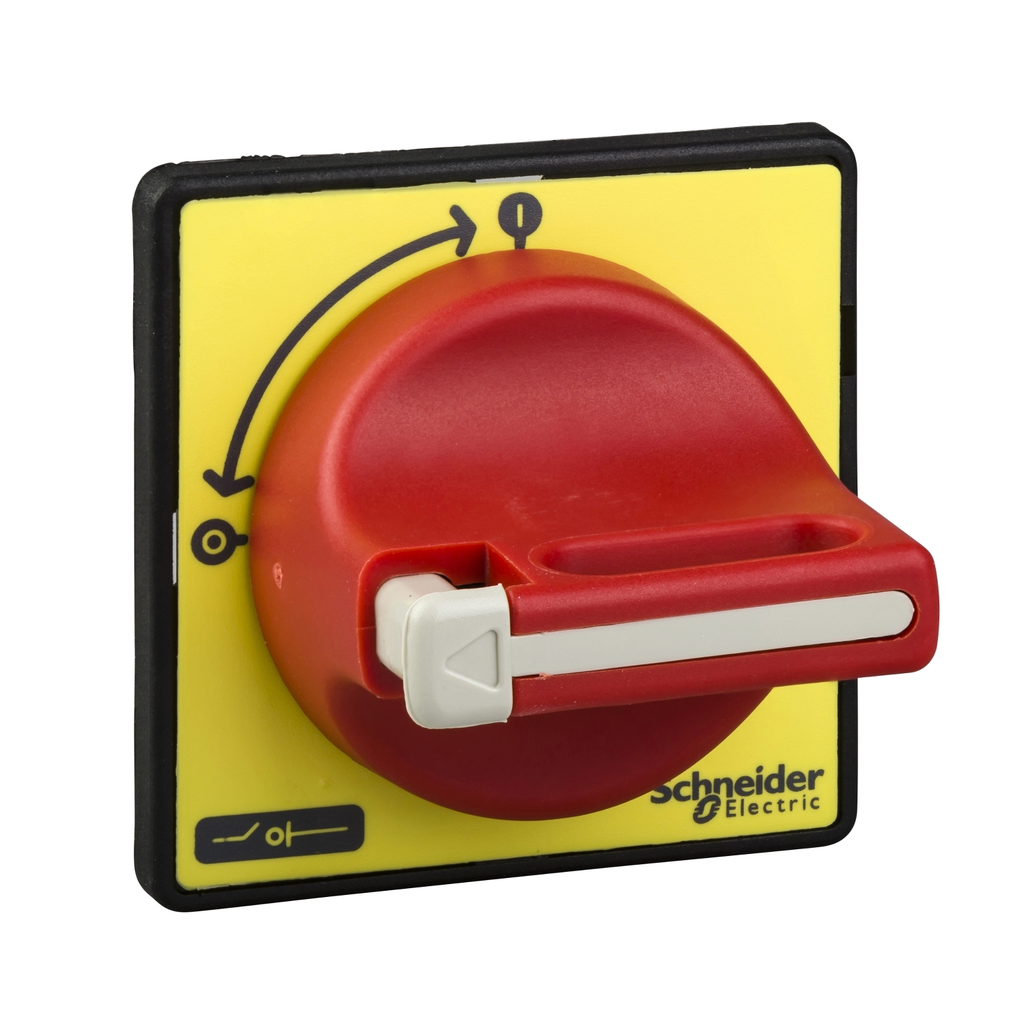

Mayer-DDS-Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,4 screws fixing,for V3/V4-1
  • Country of Origin: Czechia
  • Handle Color: Red
  • Height: 60 mm
  • Net Weight: 0.07 kg
  • Warranty Length: 18 mth
  • Weight: 0.07 kg
  • Width: 60 mm
KCF2PZ is an operating handle for TeSys Vario switch-disconnector from Schneider Electric. It provides a red padlockable handle with a yellow 60x60mm front plate for mounting on door with 4 screw fixing. It operates V3 and V4 switch bodies directly or through a shaft extension. Intended for main and emergency stop usage, it ensures IP65 to the mounting. Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting.
QTY
  • Product Description
  • Features
  • Specifications
KCF2PZ is an operating handle for TeSys Vario switch-disconnector from Schneider Electric. It provides a red padlockable handle with a yellow 60x60mm front plate for mounting on door with 4 screw fixing. It operates V3 and V4 switch bodies directly or through a shaft extension. Intended for main and emergency stop usage, it ensures IP65 to the mounting. Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ip Degree Of Protection : IP65
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2211006
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.40674538848518726
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 0.6 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.19105715483510338
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.616851034097261
  • Complementary
    • Rotary Handle Padlocking : 1 to 3 padlocks 4-8 mm
    • Height : 60 mm
    • Handle Front Plate Colour : yellow
    • Fixing Mode : by 4 screws
    • Marking : 0 - 1
    • Base Dimension : 60 x 60 mm
    • Net Weight : 0.07 kg
    • Width : 60 mm
  • Specifications
    • Country of Origin : Czechia
    • Width : 60 mm
    • Height : 60 mm
    • Weight : 0.07 kg
    • Handle Colour : red
    • Product Or Component Type : rotary handle
    • Range : TeSys
    • Product Compatibility : V3 || V4
    • Device Short Name : KCF2
