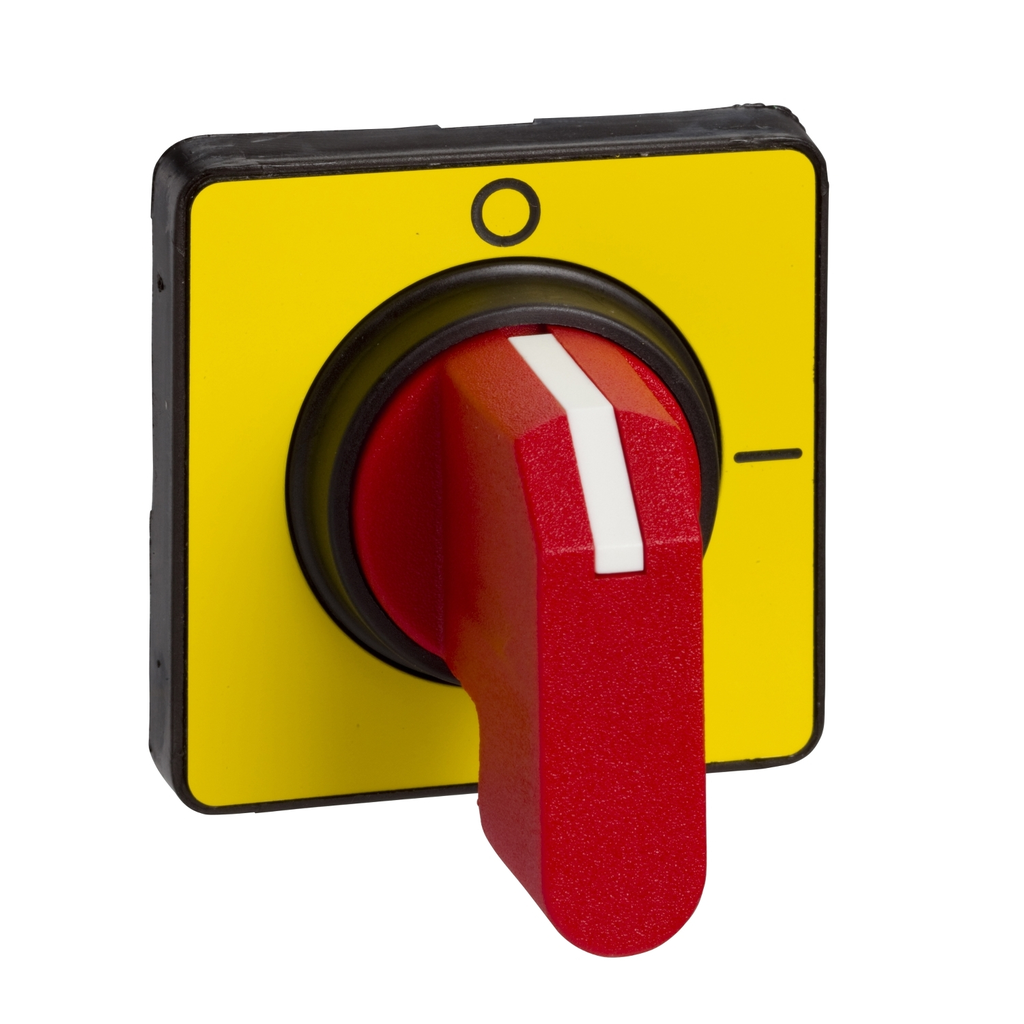

KCE1LZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For use with switch bodies VN12-VN20 and V02-V2, it provides a red & yellow operator, a 45x45mm front plate, 4 screws fixing, for emergency stop usage. KCE1LZ is an handle operator for TeSys Vario switch-disconnectors from Schneider Electric. For door mounting, it operates an enclosed switch body VN12-VN20 or V02-V2 directly or through a shaft extension. It provides a red & yellow operator, a 45x45mm front plate and 4 screws fixing. It is intended for emergency stop usage, ensures NEMA type 12 / IP65 protection and is not padlockable. Handle operator for door mounting for the operation of a Vario switch disconnector body VN12-VN20 and V02-V2 inside a cabinet. red handle with 45x45mm yellow plate for emergency stop applications. NEMA type 12 handle operator / ensure IP65 protection. Not padlockable.

• Features
• It is suitable for 2 operation methods: directly on switch body or through a shaft extension
• It ensures high protection degree to the mounting
• With numerous advantages to meet OEM’s most common needs
• Simple and reliable installation
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Handle Color : red
• Handle Front Plate Color : yellow
• Important Information Attributes
• Carbon Footprint Of The Distribution Phase A4 : 0.0077946707090406145, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.10607377210864812
• Carbon Footprint Of The Installation Phase A5 : 0.003507098790626923, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.3 kg CO2 eq., 0.2526733841346168
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 29 kg CO2 eq., 28.971796700100345
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-03
• Device Type : LV equipment - LV switch - disconnector
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Compatibility Code : switch operator
• Device Short Name : KCE1
• Fixing Mode : by 4 screws
• Handle Color : red
• Handle Front Plate Color : yellow
• Marking : 0 - 1
• Package Weight Lbs : 53.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : rotary handle
• Range : TeSys
• Returnability : No
• Rotary Handle Padlocking : without
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 29 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Medium Desc : TeSys VARIO / Mini VARIO - front and red rotary handle - without padlocking
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP2211006EN
• Database Version : 2023-02
• Pep Verification Date : 2025-08-05
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Czech Republic, CZ
• Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; France, FR
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; France, FR
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; France, FR
• Base Dimension : 45 x 45 mm
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• EU ROHS Directive : Compliant , Compliant
• Product Compatibility : VN12, V02...V2, VN20
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 29.341845625843277
• Environmental Disclosure : ENVPEP2211006EN
• IP Degree Of Protection : IP65
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2211006EN
• Pep Verification Date : 2025-08-05
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : rotary handle
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
