SQUARE D

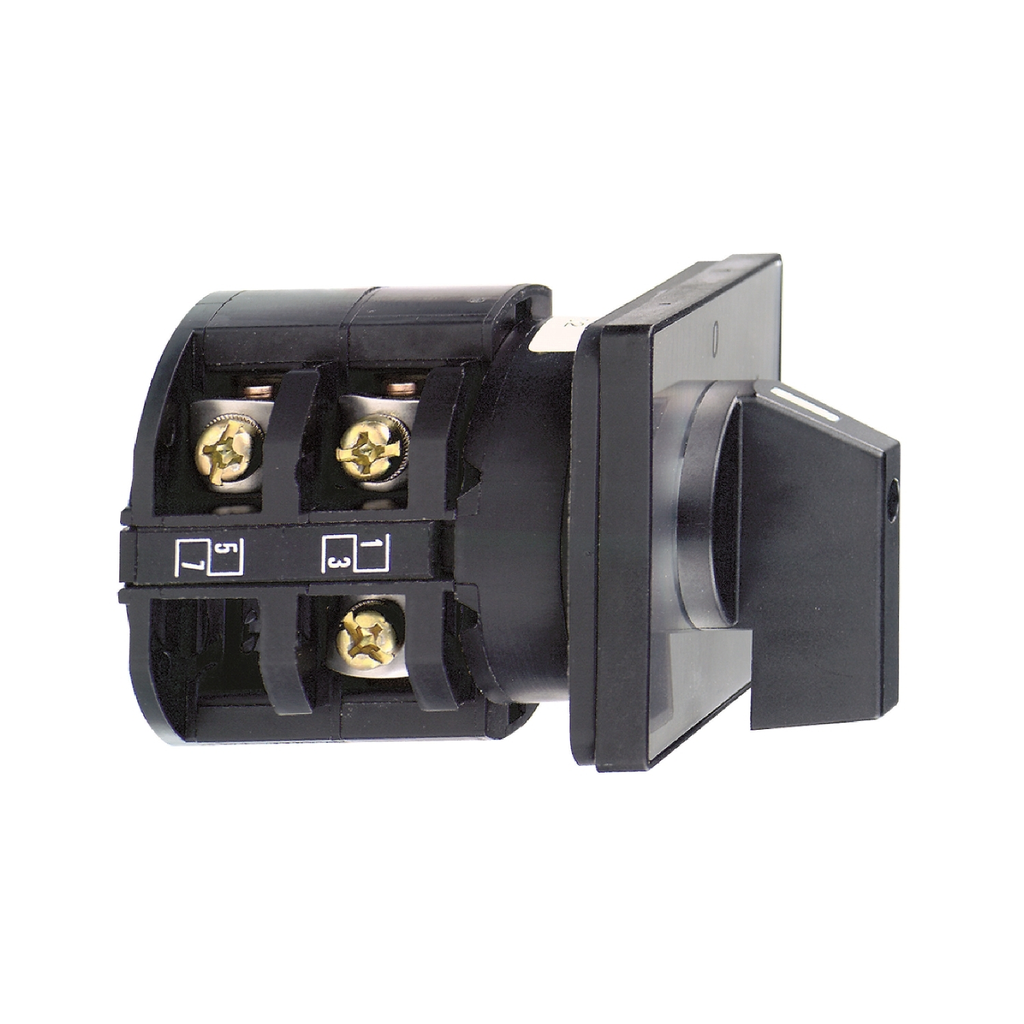

Cam changeover switch, Harmony K, front mounting, plastic, 4 poles, 30°, 32A, 64x64mm, marked 1/2

CAM CHANGEOVER SWITCH - 4-POLE

SQDK30H014UP K30H014UP 3389110084436
311.42 / EA
http://schema.org/OutOfStock
Mayer-DDS-Cam changeover switch, Harmony K, front mounting, plastic, 4 poles, 30°, 32A, 64x64mm, marked 1/2-1
  • Certifications: CULus 120 V 2 Hp 1 Phase, CULus 240 V 5 Hp 1 Phase, CULus 240 V 5 Hp 3 Phase, CULus 480 V 20 Hp 3 Phase
  • Net Weight: 0.485 kg
  • Operating Temperature: -25-55 °C
  • Short Circuit Current: 5000 A
  • Standard: IEC 60947-3
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony K30 complete cam switch/selector switch has 4 poles (4P). It also has a rating of 32A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions.
QTY
  • Product Description
  • Specifications
This Harmony K30 complete cam switch/selector switch has 4 poles (4P). It also has a rating of 32A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions.
  • Environment
    • Ambient Air Temperature For Operation : -25-55 °C
    • Product Certifications : cULus 120 V 2 hp 1 phase || cULus 240 V 5 hp 1 phase || cULus 240 V 5 hp 3 phase || cULus 480 V 20 hp 3 phase
    • Standards : IEC 60947-3
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 60536 || class II NF C 20-030
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Short-Circuit Protection : 50 A cartridge fuse gG
    • Net Weight : 0.485 kg
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV EN 947-1 || 6 kV IEC 947-1
    • Cad Overall Height : 64 mm
    • Switching Angle : 30 °
    • Electrical Connection : captive screw clamp terminals flexible 2 x 4 mm² || captive screw clamp terminals solid 2 x 6 mm²
    • Short-Circuit Current : 5000 A
    • [Ui] Rated Insulation Voltage : 690 V 3)IEC 60947-1
    • Positive Opening : with
    • Tightening Torque : 1.2 N.m
    • Contact Operation : slow-break
    • Mechanical Durability : 300000 cycles
    • Switching Capacity In Ma : 11000 mA DC 120 V 2 inductive 50 ms) || 11000 mA DC 180 V 3 inductive 50 ms) || 11000 mA DC 60 V 1 inductive 50 ms) || 1200 mA DC 220 V 1 resistive 1 ms) || 1200 mA DC 440 V 2 resistive 1 ms) || 1200 mA DC 660 V 3 resistive 1 ms) || 16000 mA DC 140 V 3 inductive 50 ms) || 16000 mA DC 48 V 1 inductive 50 ms) || 16000 mA DC 95 V 2 inductive 50 ms) || 23000 mA DC 120 V 2 resistive 1 ms) || 23000 mA DC 180 V 3 resistive 1 ms) || 23000 mA DC 60 V 1 resistive 1 ms) || 25000 mA DC 30 V 1 inductive 50 ms) || 25000 mA DC 60 V 2 inductive 50 ms) || 25000 mA DC 90 V 3 inductive 50 ms) || 3200 mA DC 110 V 1 inductive 50 ms) || 3200 mA DC 220 V 2 inductive 50 ms) || 3200 mA DC 330 V 3 inductive 50 ms) || 32000 mA DC 140 V 3 resistive 1 ms) || 32000 mA DC 24 V 1 inductive 50 ms) || 32000 mA DC 24 V 1 resistive 1 ms) || 32000 mA DC 48 V 1 resistive 1 ms) || 32000 mA DC 48 V 2 inductive 50 ms) || 32000 mA DC 48 V 2 resistive 1 ms) || 32000 mA DC 70 V 3 inductive 50 ms) || 32000 mA DC 70 V 3 resistive 1 ms) || 32000 mA DC 95 V 2 resistive 1 ms) || 400 mA DC 440 V 1 resistive 1 ms) || 400 mA DC 660 V 2 resistive 1 ms) || 6500 mA DC 110 V 1 resistive 1 ms) || 6500 mA DC 220 V 2 resistive 1 ms) || 6500 mA DC 330 V 3 resistive 1 ms)
    • Cad Overall Width : 64 mm
    • Cad Overall Depth : 119 mm
  • Specifications
    • Range Of Product : Harmony K
    • Fixing Mode : 4 holes
    • Presentation Of Legend : with metallic, 1 - 2 black
    • Ip Degree Of Protection : IP40 conforming to IEC 60529
    • Product Or Component Type : complete cam switch
    • [Ith] Conventional Free Air Thermal Current : 32 A
    • Cam Switch Function : changeover switch
    • Component Name : K30
    • Type Of Operator : Black handle
    • Mounting Location : front
    • Switching Positions : right: 30° || left: 330°
    • Cam Switch Head Type : with front plate 64 x 64 mm
    • Poles Description : 4P
    • Rotary Handle Padlocking : without
    • Return : without
    • Off Position : without Off position
