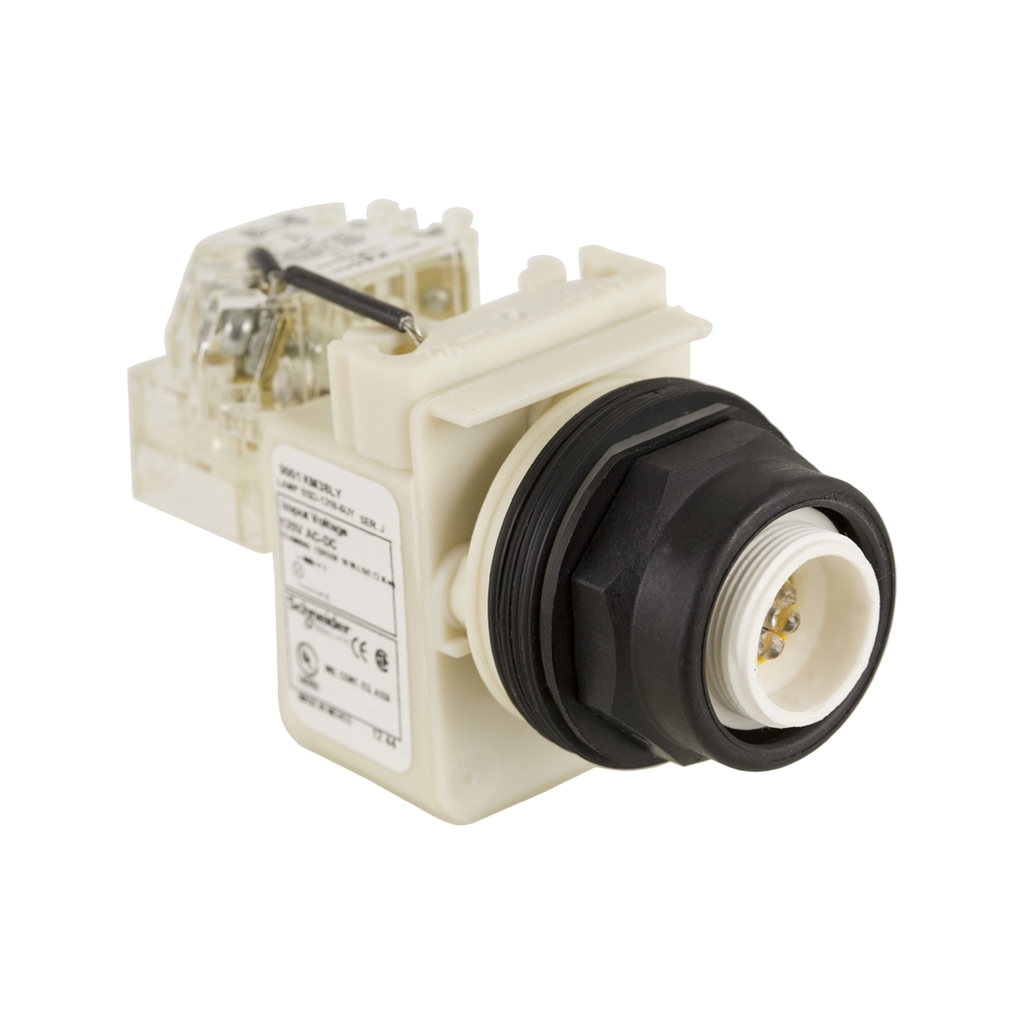

This illuminated yellow push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : NEMA || UL 508
• Ambient Air Temperature For Operation : -25-70 °C
• Standards : IEC 60947-1 || JIS C8201-5-1 || JIS C 852 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
• Shock Resistance : 50 gn IEC 60068-2-27
• Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Ip Degree Of Protection : IP66 IEC 60529
• Ambient Air Temperature For Storage : -40-70 °C
• Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
• Electrical Shock Protection Class : class II IEC 61140
• Protective Treatment : TC
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• China Rohs Regulation : X
• Take-Back : No
• Complementary
• [Us] Rated Supply Voltage : 120 V AC/DC
• Mounting Diameter : 30 mm
• [Ith] Conventional Free Air Thermal Current : 10 A
• Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
• Operating Mode : push-to-test
• Shape Of Signaling Unit Head : round
• Cap/Operator Or Lens Colour : without cap
• Net Weight : 0.181 kg
• [Uimp] Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1
• Size : 30 mm
• Cad Overall Height : 70 mm
• Connections - Terminals : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Contacts Type And Composition : 1 C/O
• Light Source : Yellow LED
• [Ui] Rated Insulation Voltage : 250 V 2)IEC 60947-1
• Bezel Material : plastic
• Light Source Colour : yellow
• Operating Position : any position
• Tightening Torque : 0.8-0.8 N.m IEC 60947-1
• Cad Overall Width : 54 mm
• Cad Overall Depth : 42 mm
• Shape Of Screw Head : cross slotted
• Bulb Base : BA 9s
• Specifications
• Country of Origin : Mexico
• Width : 54 mm
• Height : 70 mm
• Weight : 0.181 kg
• Range Of Product : Harmony 9001SK
• Light Block Supply : direct 120 V AC/DC
• Product Or Component Type : head for push-to-test pilot light
• Device Short Name : 9001SK
