SQUARE D

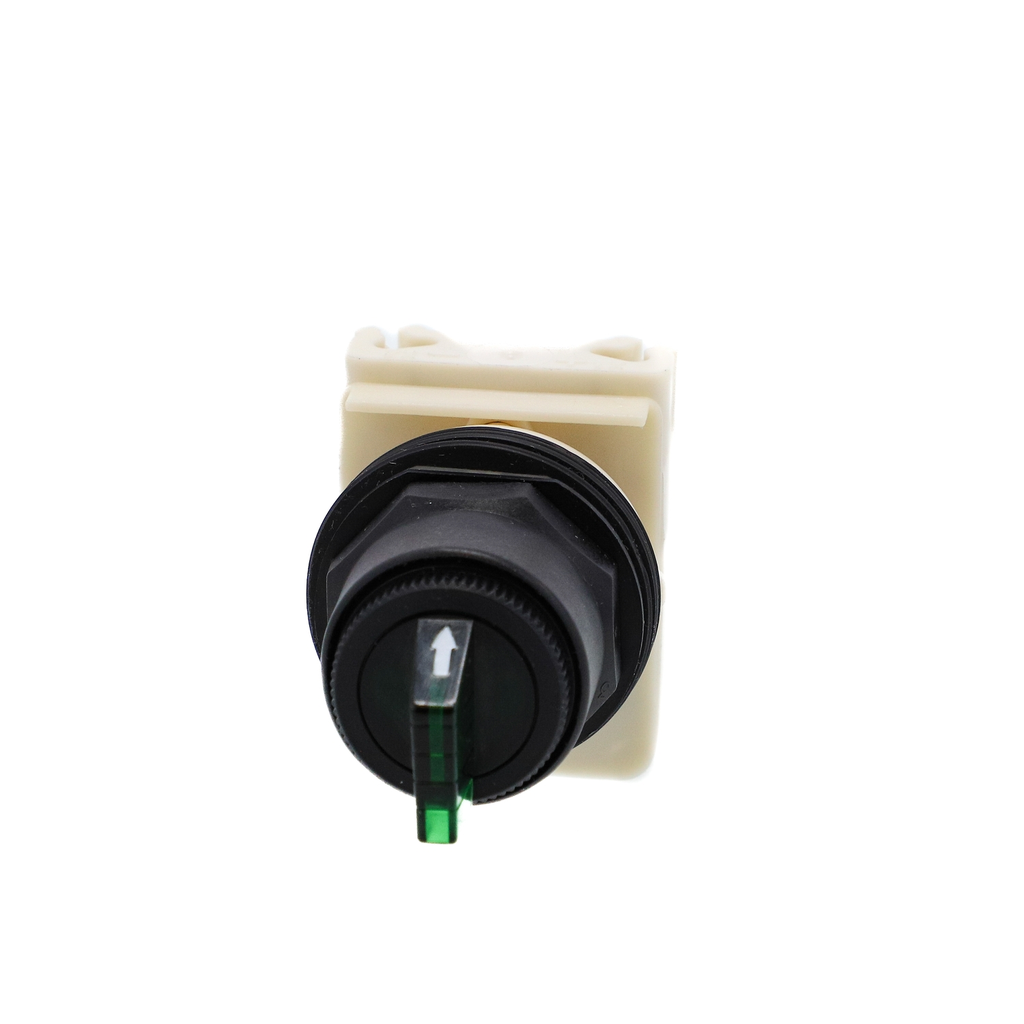

30mm push button, Type SK, illuminated selector switch, 3 position, 120VAC light module, green knob, no contacts, NEMA 4, 4X

SEL SW 30MM 3POS MAIN GREEN

SQD9001SK43J1G 9001SK43J1G 785901960089
218.90 / EA
http://schema.org/OutOfStock
Mayer-DDS-30mm push button, Type SK, illuminated selector switch, 3 position, 120VAC light module, green knob, no contacts, NEMA 4, 4X-3
  • Bezel Material: Plastic
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This 3 postion illuminated selector switch has a plastic ring nut. The selector switch is maintained in all three positions. This selector switch has a 110/120 VAC 50/60 Hz transformer light module to provide the illumination. The light module has an incandescent lamp. This selctor switch has a green standard knob. Contact blocks with the desired contact arrangements must be added to this operator. When properly installed with a lens cap this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is installed into a Ø 30mm panel cutout." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
QTY
  • Product Description
  • Features
  • Specifications
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This 3 postion illuminated selector switch has a plastic ring nut. The selector switch is maintained in all three positions. This selector switch has a 110/120 VAC 50/60 Hz transformer light module to provide the illumination. The light module has an incandescent lamp. This selctor switch has a green standard knob. Contact blocks with the desired contact arrangements must be added to this operator. When properly installed with a lens cap this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is installed into a Ø 30mm panel cutout." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
  • Enclosure Type
    • dust and oil resistant weatherproof enclosure indoor/outdoor
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SK43J1G_CAD&p_File_name=9001SK43J1G_3D.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SK43J1G_CAD&p_File_name=9001SK43J1G_2D Front View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SK43J1G_CAD&p_File_name=9001SK43J1G_2D Front View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SK43J1G_CAD&p_File_name=9001SK43J1G_2D Right Side View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001SK43J1G_CAD&p_File_name=9001SK43J1G_2D Right Side View.dxf
  • Light Block Supply
    • via transformer 120 V AC 50/60 Hz
    • via transformer 110 V AC 50/60 Hz
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Bezel Material : plastic
    • Bulb Base : BA 9s
    • Contacts Type And Composition : without contact block
    • Device Short Name : K
    • Mounting Diameter : 30 mm
    • Operator Position Information : 3 positions
    • Package Weight Lbs : 181.437 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated selector switch
    • Range Of Product : Harmony 9001SK
    • Returnability : No
    • Sustainable Packaging : Yes
    • Type Of Operator : maintained
    • Relationship Type : cross-selling relationship
    • Pep Code : ENVPEP2503027EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : head for illuminated selector switch
    • Range Of Product : Harmony 9001SK
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=493417&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
