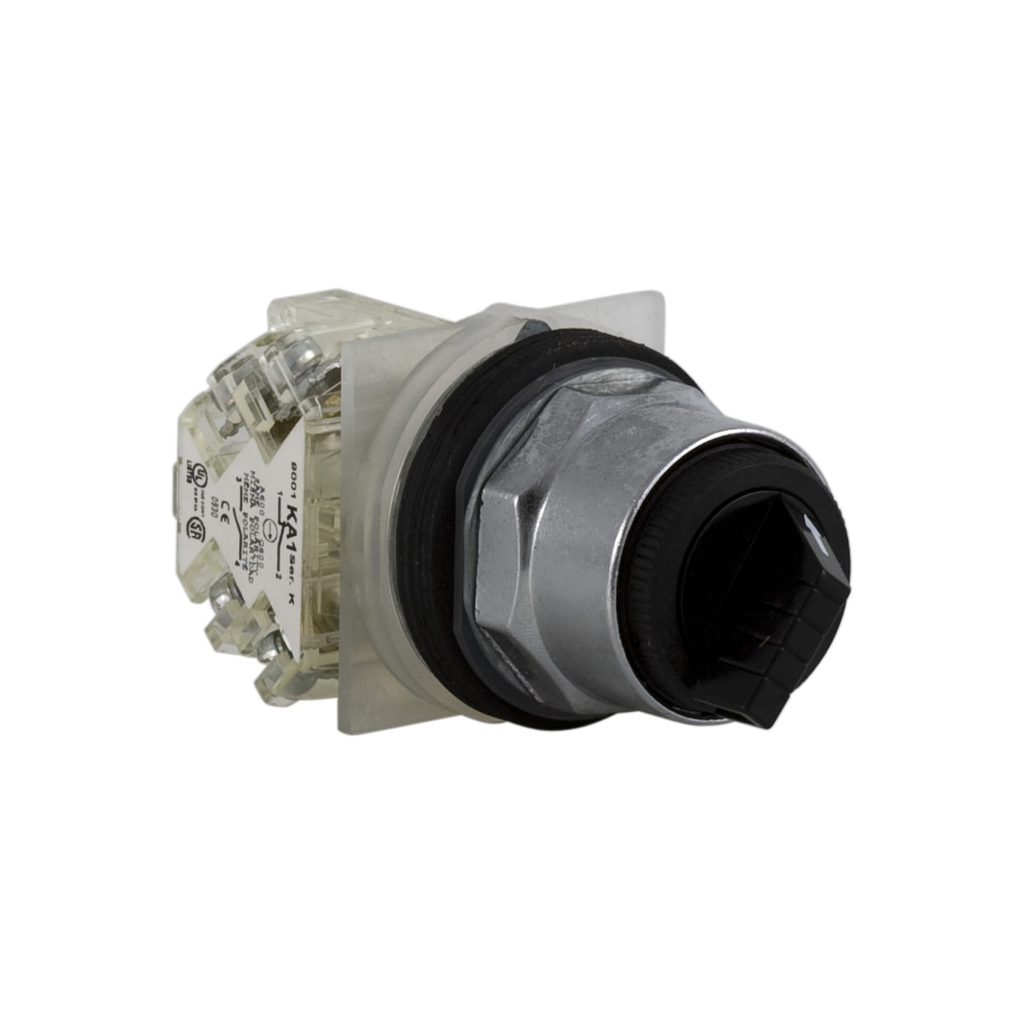

30mm push button, Type K, 2 position selector switch, 6A inductive at 120VAC, 2NO contacts, black knob, NEMA 4, 13

SELECTOR SWITCH 600VAC 10A 30M

SQD9001KS11BH7 9001KS11BH7 785901034537
119.64 / EACH
http://schema.org/OutOfStock
Mayer-DDS-30mm push button, Type K, 2 position selector switch, 6A inductive at 120VAC, 2NO contacts, black knob, NEMA 4, 13-1
  • Bezel Material: Metal
  • Certifications: CE, CSA LR24590 Class 3211 03, UL Listed File E42259 CCN NKCR
  • Warranty Length: 18 mth
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This non-illuminated 2 position selector switch has a die cast ring nut. The selector switch is maintained in both positions. This operator has two 9001KA2 contact blocks mounted side by side on the back. Each contact block has one normally open contact. Contact blocks have a UL Type A600, UL Type Q600 and a 10A resistive VAC rating. The contacts in these contact blocks are double break. Contact blocks will accept up to two 12AWG to 24 AWG solid or stranded wires. The contact block terminals are protected to meeting VDE 0106 Part 100. This selector switch has a standard black knob. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
QTY
  • Product Description
  • Specifications
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This non-illuminated 2 position selector switch has a die cast ring nut. The selector switch is maintained in both positions. This operator has two 9001KA2 contact blocks mounted side by side on the back. Each contact block has one normally open contact. Contact blocks have a UL Type A600, UL Type Q600 and a 10A resistive VAC rating. The contacts in these contact blocks are double break. Contact blocks will accept up to two 12AWG to 24 AWG solid or stranded wires. The contact block terminals are protected to meeting VDE 0106 Part 100. This selector switch has a standard black knob. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
  • Environment
    • Product Certifications : UL listed file E42259 CCN NKCR || CE || CSA LR24590 class 3211 03
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • Connections - Terminals : screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Contacts Type And Composition : 2 NO
    • Bezel Material : metal
    • Cam Profile : 5
    • Operator Position Information : 2 positions
    • Mounting Diameter : 30 mm
    • Operator Profile : standard handle
    • Type Of Operator : stay put
    • Cap/Operator Or Lens Colour : black
    • Size : 30 mm
    • Device Presentation : complete product
  • Specifications
    • Range Of Product : Harmony 9001K
    • Operator Profile : black standard knob
    • Type Of Operator : maintained
    • Product Or Component Type : selector switch
    • Device Short Name : K
