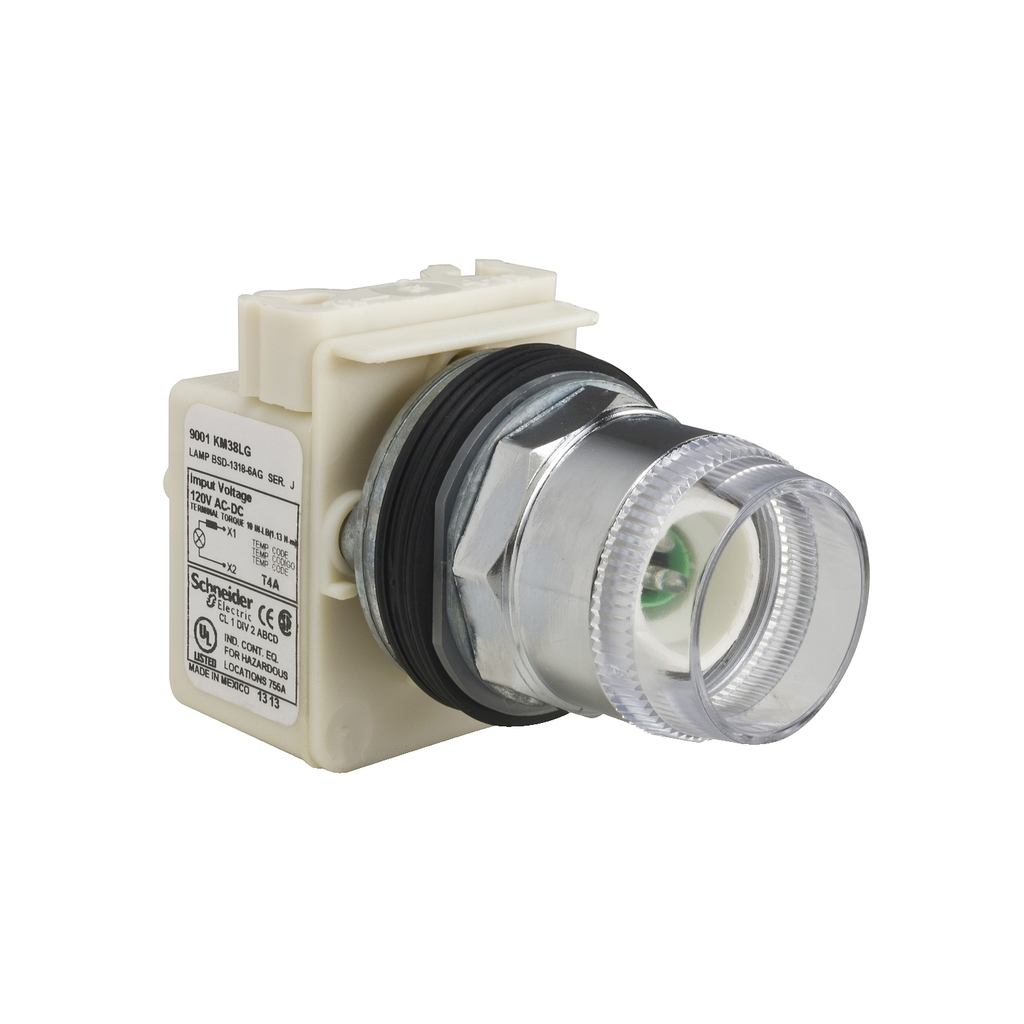

30mm push button, Type K, illuminated momentary, full guard, 120VAC/VDC green LED light module, no contacts, no lens, NEMA 4

PUSHBUTTON OPERATOR 30MM TYPE

SQD9001K1L38LG 9001K1L38LG 785901966272
189.40 / EACH
http://schema.org/OutOfStock
  • Bezel Material: Metal
  • Warranty Length: 18 mth
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This illuminated momentary push button has a die cast ring nut with a clear plastic end. This push button operator has a 120 VAC/VDC green LED light module to provide the illumination. The light module has a green LED lamp. A green colored lens cap must be added to this operator. Contact blocks with the desired contact arrangements must be added to this operator. When properly installed with a lens cap this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
QTY
  • Features
  • Specifications
  • Features
    • Enhanced operator efficiency
    • High performance
    • Simple modular design
    • Rugged and durable, simple spring return mechanism
    • High vibration resistance screw clamp connection terminals
    • Designed to fit in a standard Ø 30mm cutout
    • High lifetime, less maintenance and replacement
    • Impact and corrosion resistant bezel and body
    • Wide range of operating temperature from -25°C to 70°C
    • Ideal for severe environments
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cap Operator Or Lens Color : without cap
    • Light Source Color : green
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Bezel Material : metal
    • Cap Operator Or Lens Color : without cap
    • Compatibility Code : 9001K
    • Contacts Type And Composition : without contact block
    • Device Short Name : 9001K
    • Light Source Color : green
    • Mounting Diameter : 30 mm
    • Operator Additional Information : plastic guard
    • Operator Profile : flush
    • Package Weight Lbs : 226.796 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Us Rated Supply Voltage2 : 120 V
    • Medium Desc : 30mm push button, Type K, illuminated momentary, full guard, 120VAC/VDC green LED light module, no contacts, no lens, NEMA 4
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2503027EN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
