SQUARE D

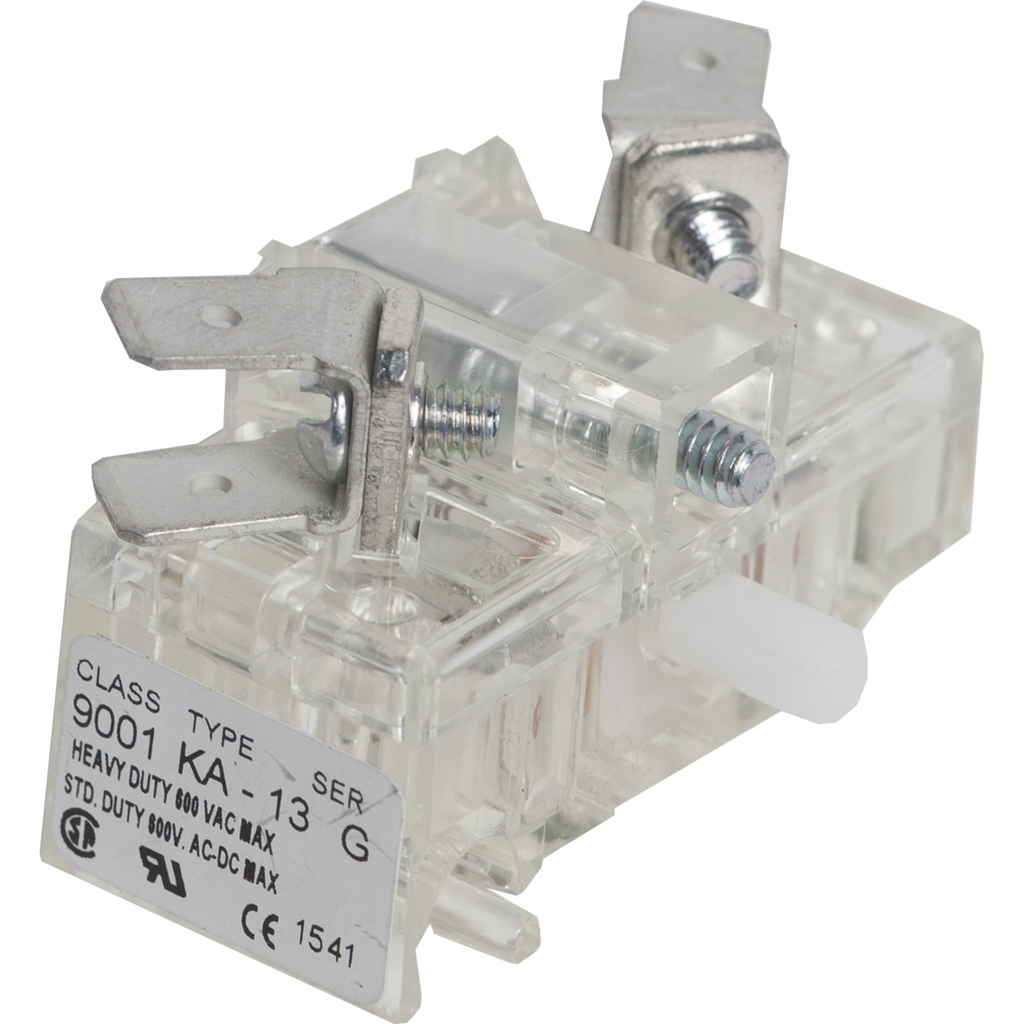

30mm push button, Type K, contact block, 1NC, 6A inductive at 120VAC, quick connect terminals

PUSH BUTTON CONTACT 600VAC 10A

SQD9001KA13 9001KA13 785901732426
43.88 / EA
http://schema.org/OutOfStock
Mayer-DDS-30mm push button, Type K, contact block, 1NC, 6A inductive at 120VAC, quick connect terminals-1
  • Country of Origin: Mexico
  • Net Weight: 0.027 kg
  • Warranty Length: 18 mth
  • Weight: 0.027 kg
The 9001K, 9001SK and 9001KX push button lines have a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This contact blocks will work on 9001K, 9001SK and 9001KX operators. Contact block has one normally closed contact. Contact block has quick connect terminals. Contact block is UL Listed and CSA certified. "The contacts are made of silver alloy." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by NEMA and UL 508. It meets EN/IEC 60947-5-4, JIS C 852, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1 and JIS C 4520 standards." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
QTY
  • Product Description
  • Features
  • Specifications
The 9001K, 9001SK and 9001KX push button lines have a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This contact blocks will work on 9001K, 9001SK and 9001KX operators. Contact block has one normally closed contact. Contact block has quick connect terminals. Contact block is UL Listed and CSA certified. "The contacts are made of silver alloy." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by NEMA and UL 508. It meets EN/IEC 60947-5-4, JIS C 852, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1 and JIS C 4520 standards." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : NEMA || UL 508
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 852 || JIS C 4520 || IEC 60947-5-4 || IEC 60947-1 || UL 60947-5-1
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
    • Electrical Shock Protection Class : class II conforming to IEC 61140
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2312033EN
    • Packaging Without Single Use Plastic : No
    • Scip Number : ae0c4eb9-0bfb-40a4-851f-5c619fbe777d
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2312033EN
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • [Us] Rated Supply Voltage : 0...600 V
    • Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Contacts Material : silver alloy contacts
    • Positive Opening : with IEC 60947-5-1
    • [Ith] Conventional Free Air Thermal Current : 10 A
    • Rated Breaking Capacity : 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    • Net Weight : 0.027 kg
    • [Uimp] Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1
    • Connections - Terminals : quick-connect terminal strips
    • [Icm] Rated Short-Circuit Making Capacity : 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13, 7200 VA || 0.27 kA 250 V DC-13, 7200 VA || 0.55 kA 125 V DC-13
    • [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
    • Contact Operation : positive opening
  • Specifications
    • Country of Origin : Mexico
    • Weight : 0.027 kg
    • Range Of Product : Harmony 9001K || Harmony 9001SK
    • Product Or Component Type : contact block
    • Contacts Type And Composition : 1 NC
    • Device Short Name : 9001K
