SQUARE D

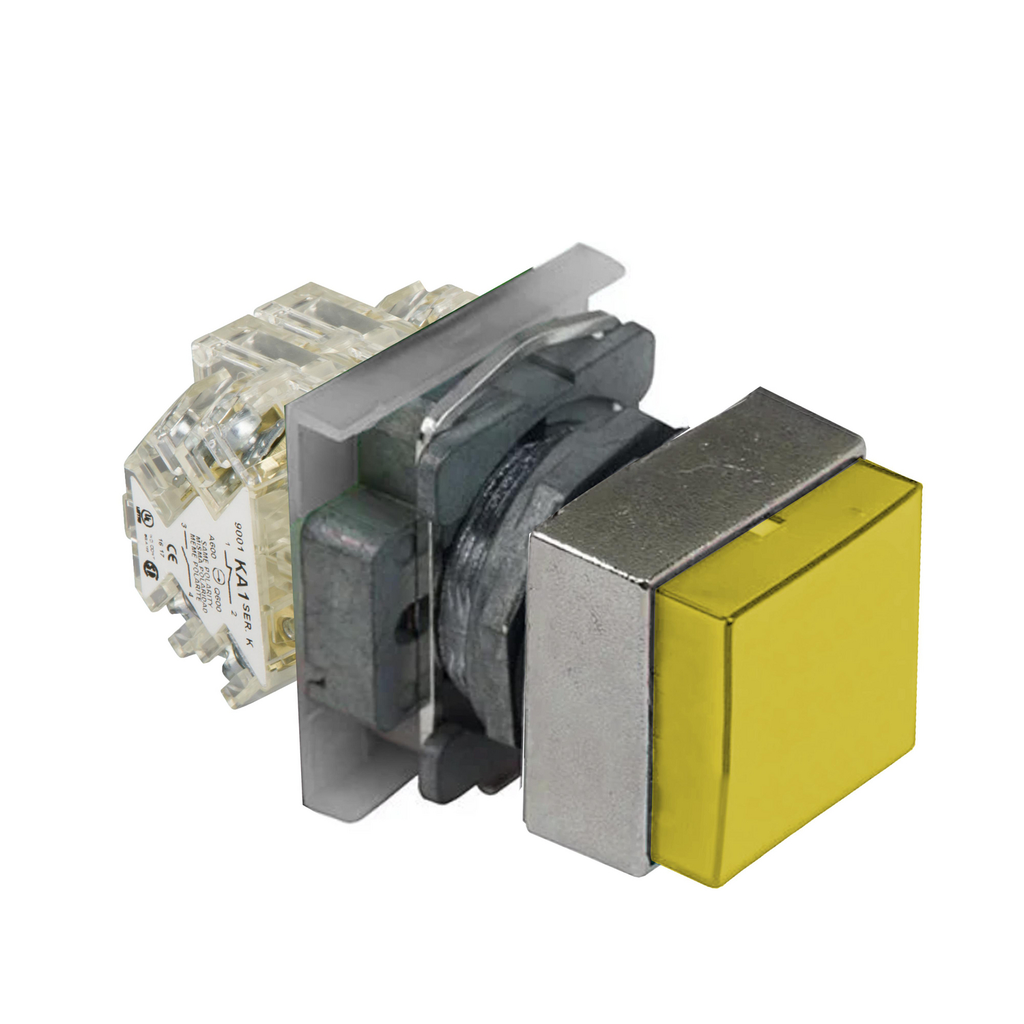

Push button, Harmony 9001K, non illuminated, amber, 30mm, square head, blank legend, 2 C/O

TYPE KX MULTI-FUNCTION PB OPER

SQD9001KXRAAH2 9001KXRAAH2 785901037491
147.61 / EA
http://schema.org/OutOfStock
Mayer-DDS-Push button, Harmony 9001K, non illuminated, amber, 30mm, square head, blank legend, 2 C/O-1
  • Bezel Material: Chromium Plated Metal
  • Warranty Length: 18 mth
This Hamony 9001K range is a modular non-illuminated amber push button with push-pull mechanism. It has a chromium-plated metal bezel, a square shape and 30mm head and 2 NO and 2 NC contacts. This push button pros an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. The push button has a blank legend. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It complies with directives such as RoHS and REACh relating to environmental protection.
QTY
  • Product Description
  • Features
  • Specifications
This Hamony 9001K range is a modular non-illuminated amber push button with push-pull mechanism. It has a chromium-plated metal bezel, a square shape and 30mm head and 2 NO and 2 NC contacts. This push button pros an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. The push button has a blank legend. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It complies with directives such as RoHS and REACh relating to environmental protection.
  • Features
    • Improved security thanks to finger-safe contact blocks and light modules
    • Robustness to withstand the harshest environments
    • Easy, secure mounting system
    • Automatic self-grounding operators without additional wiring
    • A large metal set of accessories to customize your product
    • Single screw Contact Block Fastening
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cap Operator Or Lens Color : amber
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Ie Rated Operational Current2 : 10 A, AC-15, 10 A, DC-15
    • Ie Rated Operational Current5 : 10 A, AC-15, 10 A, DC-15
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : chromium plated metal
    • Cap Operator Or Lens Color : amber
    • Contact Operation : standard
    • Contacts Type And Composition : 2 C/O
    • Device Short Name : K
    • Mounting Diameter : 30 mm
    • Operator Profile : amber projecting
    • Package Weight Lbs : 136.078 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : push-button
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Medium Desc : Push button, Harmony 9001K, non illuminated, amber, 30mm, square head, blank legend, 2 C/O
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2503027EN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • IP Degree Of Protection : IP65/IP66
    • Nema Degree Of Protection : NEMA 3R/6/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : push-button
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : complete product
