SQUARE D

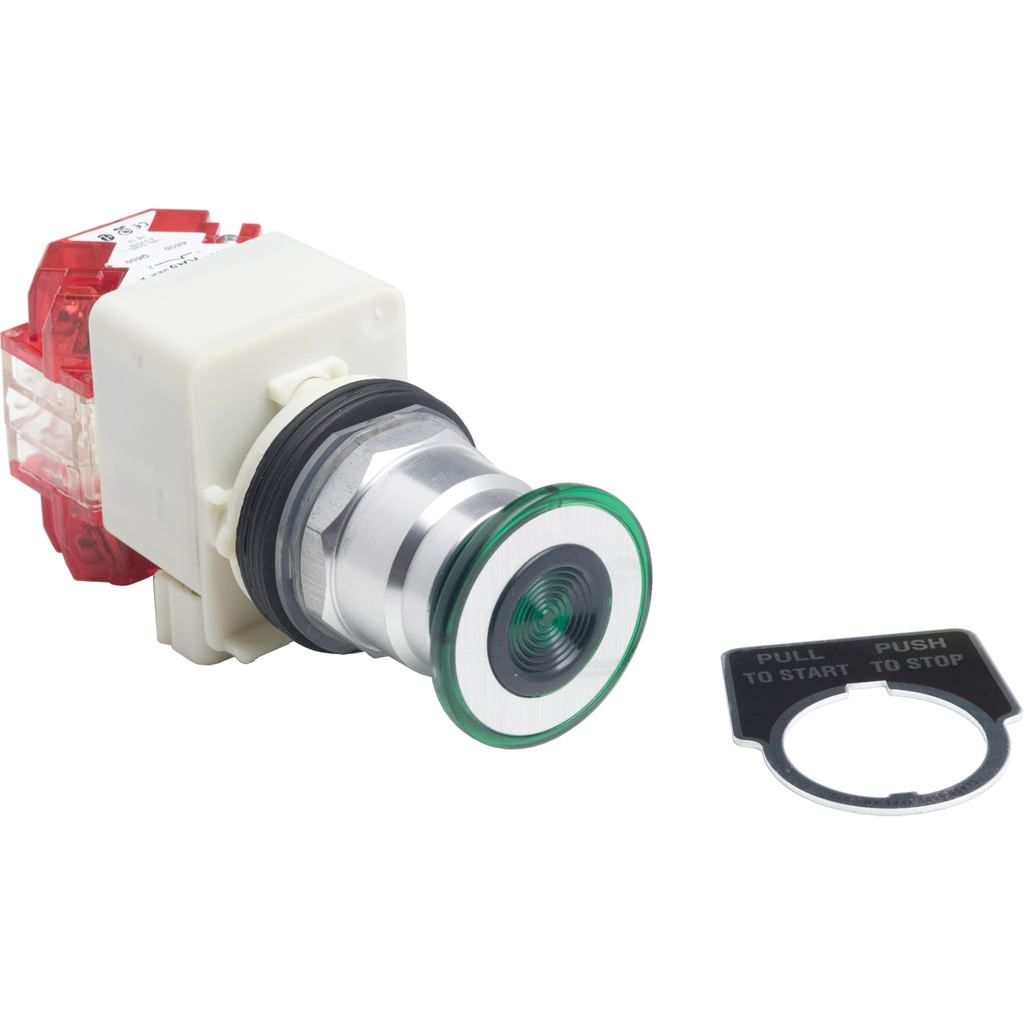

30mm push button, Type K, green illuminated momentary push pull mushroom, 120VAC green LED, 1NO/1NC contact, NEMA 4, 13

PUSH BUTTON 600VAC 10A 30MM T-

SQD9001KR8P1LGGH25 9001KR8P1LGGH25 785901760979
301.34 / EACH
http://schema.org/OutOfStock
Mayer-DDS-30mm push button, Type K, green illuminated momentary push pull mushroom, 120VAC green LED, 1NO/1NC contact, NEMA 4, 13-1
  • Bezel Material: Metal
  • Certifications: CE, CSA LR 25490 Class 3211 03, NEMA, UL Listed File E42259 CCN NKCR
  • Warranty Length: 18 mth
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This illuminated push pull push button operator has a metal ring nut. This operator can be used for three wire control. This operator has one 9001KA3 and one 9001KA5 contact block. When these contact blocks are used this operator can be pulled to start and push to stop a control circuit. Contact block have a UL Type A600, UL Type Q600 and a 10A resistive VAC rating. Contact blocks will accept up to two 12AWG to 24 AWG solid or stranded wires. The contact block terminals are protected to meeting VDE 0106 Part 100. This pilot light has a 110/120 VAC 50/60Hz LED light module to provide the illumination. The light module has a green LED lamp. A push pull operator has a green mushroom knob. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified.
QTY
  • Product Description
  • Specifications
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This illuminated push pull push button operator has a metal ring nut. This operator can be used for three wire control. This operator has one 9001KA3 and one 9001KA5 contact block. When these contact blocks are used this operator can be pulled to start and push to stop a control circuit. Contact block have a UL Type A600, UL Type Q600 and a 10A resistive VAC rating. Contact blocks will accept up to two 12AWG to 24 AWG solid or stranded wires. The contact block terminals are protected to meeting VDE 0106 Part 100. This pilot light has a 110/120 VAC 50/60Hz LED light module to provide the illumination. The light module has a green LED lamp. A push pull operator has a green mushroom knob. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified.
  • Environment
    • Product Certifications : CE || CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • [Us] Rated Supply Voltage : 110...120 V
    • Light Source : LED
    • Light Block Supply : without supply
    • Mounting Diameter : 30 mm
    • Light Block Supply : via integral transformer
    • Operator Profile : mushroom Ø 41 mm
    • Cap/Operator Or Lens Colour : green
    • Size : 30 mm
    • Device Presentation : complete product
    • Contacts Type And Composition : 1 NC late break + 1 NC
    • Bezel Material : metal
    • [Ie] Rated Operational Current : 10 A, AC-15 || 10 A, DC-13
    • Contact Operation : late-break
    • Light Source Colour : green
    • Operator Position Information : 3 positions
    • Type Of Operator : pull : spring return, center : stay put, push : spring return
    • Supply Frequency : 50...60 Hz
    • Bulb Base : BA 9s
  • Specifications
    • Operator Additional Information : screw-on plastic
    • Range Of Product : Harmony 9001K
    • Product Or Component Type : illuminated push-button
    • Device Short Name : K
