30mm push button, Type K, push to test pilot light, yellow LED light module, 120VAC/VDC, no lens, NEMA 4, 13

PILOT LIGHT 120VAC 30MM TYPE K

SQD9001KT38LY 9001KT38LY 785901716334
217.34 / EACH
http://schema.org/OutOfStock
Mayer-DDS-30mm push button, Type K, push to test pilot light, yellow LED light module, 120VAC/VDC, no lens, NEMA 4, 13-1
  • Bezel Material: Metal
  • Country of Origin: Mexico
  • Warranty Length: 18 mth

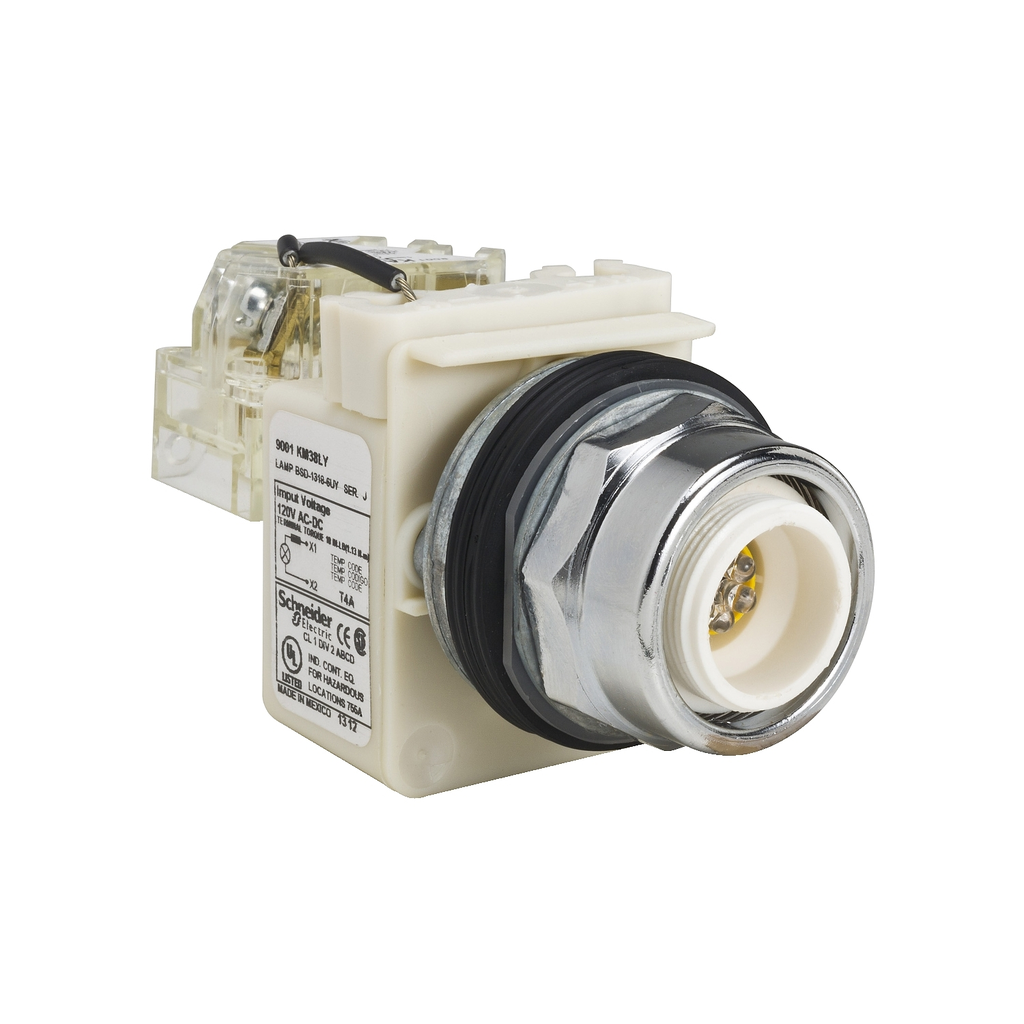

The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This push-to-test pilot light has a die cast ring nut. By pushing on the pilot light lens, you can determine if the pilot light lamp is still working. This operator has one 9001KA1 contact block mounted on the back. The contact block has one normally open and one normally closed contact. Contact block has a UL Type A600, UL Type Q600 and a 10A resistive VAC rating. The contacts in this contact block are double break direct acting. This push-to-test pilot light has a 120 VAC/VDC LED light module with a yellow LED lamp to provide the illumination. Contact block and light module will accept up to two 12AWG to 24 AWG solid or stranded wires. The contact block and light module terminals are protected to meeting VDE 0106 Part 100. This push-to-test pilot light does not have a pilot light lens. A yellow or amber lens is highly recommended. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This push-to-test pilot light has a die cast ring nut. By pushing on the pilot light lens, you can determine if the pilot light lamp is still working. This operator has one 9001KA1 contact block mounted on the back. The contact block has one normally open and one normally closed contact. Contact block has a UL Type A600, UL Type Q600 and a 10A resistive VAC rating. The contacts in this contact block are double break direct acting. This push-to-test pilot light has a 120 VAC/VDC LED light module with a yellow LED lamp to provide the illumination. Contact block and light module will accept up to two 12AWG to 24 AWG solid or stranded wires. The contact block and light module terminals are protected to meeting VDE 0106 Part 100. This push-to-test pilot light does not have a pilot light lens. A yellow or amber lens is highly recommended. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified.
  • Light Block Supply
    • direct 120 V
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KT38LY_CAD&p_File_name=9001KT38LY_3D.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KT38LY_CAD&p_File_name=9001KT38LY_2D Front View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KT38LY_CAD&p_File_name=9001KT38LY_2D Front View.dxf
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KT38LY_CAD&p_File_name=9001KT38LY_2D Right Side View.dwg
    • https://download.schneider-electric.com/files?p_Doc_Ref=9001KT38LY_CAD&p_File_name=9001KT38LY_2D Right Side View.dxf
  • Light Source
    • Yellow LED
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
